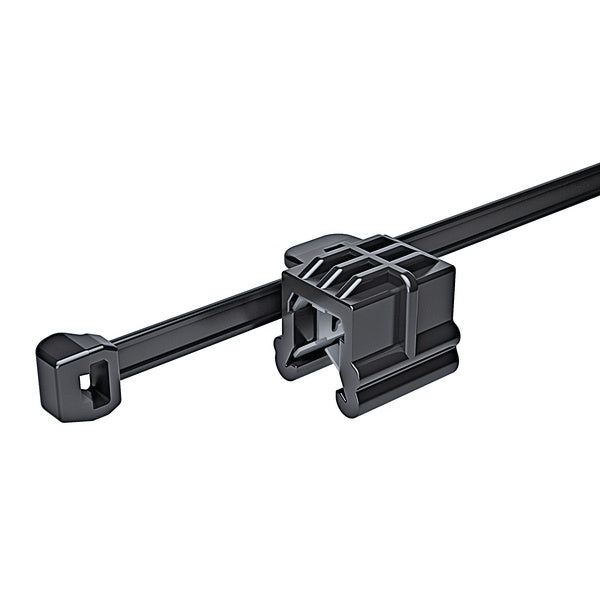

HellermannTyton 156-00878 | Outside Serrated Cable Tie & Edge Clip, 8.0" Long, Ec24, 3 - 6 Mm Panel, 50Lb, Pa66Hs, Black, 500/Pkg
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
HellermannTyton 156-00878 | Outside Serrated Cable Tie & Edge C...
Description
Description

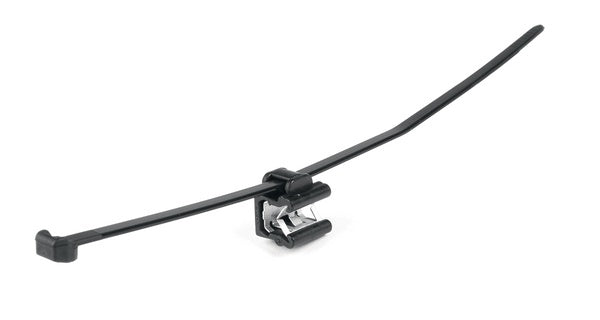

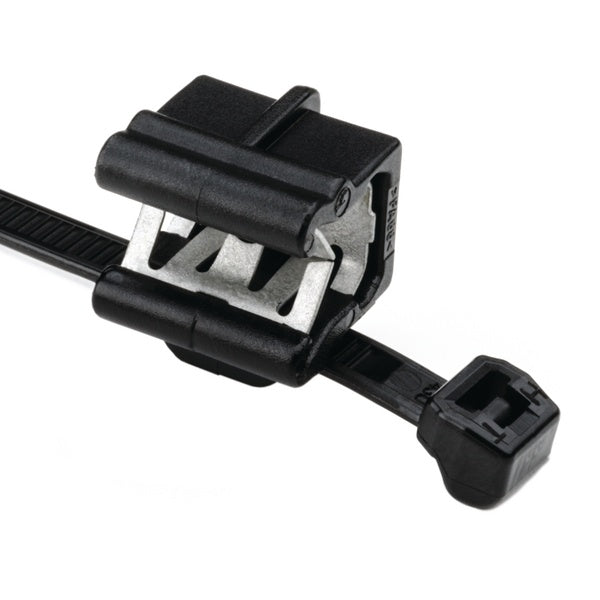

HellermannTyton’s Two Piece Edge Clip with Cable Tie Assemblies are designed specifically to route bundles by securing them to the edge of a plastic or metal sheet without the need for a mountinig hole. The clip is easy to secure and the extraction for ce is high due to the integrated metal clamp that holds the edge clip in place.
HellermannTyton's Two Piece Edge Clip with Cable Tie Assemblies are designed specifically to route bundles by securing them to the edge of a plastic or metal sheet without the need for a mountinig hole. The clip is easy to secure and the extraction force is high due to the integrated metal clamp that holds the edge clip in place.
About HellermannTyton: HellermannTyton is a global manufacturer of cable management and identification solutions for automotive, solar, electrical, construction, industrial automation, broadband and other OEM markets. The company's integrated approach to product design, sustainability, production, quality assurance and delivery is optimized to benefit local and global customers. HellermannTyton operates in 39 countries, with North American headquarters in Milwaukee, Wisconsin.
HellermannTyton - 156-00878 - Features
- Edge Clip applies easily to plastic and metal sheets without the need for a mounting hole.
- Edge Clip provides low insertion force and high extraction force ideal for assembly environments.
- Two piece assembly allows the mount to slide along the strap ensuring proper orientation.
- Cable tie is outside serrated to reduce bundle chafing.
- Engineered and manufactured for maximum performance and quality.
- Made from 100% high-quality plastic to ensure efficient recycling.
- Inside serration for a strong grip onto bundles.
- Easy application either manually or with a tensioning tool.
- Bent tail allows for simpler insertion.
Specifications
Specifications
HellermannTyton - 156-00878 - Product Categories
- Hardware
- Cable Management
- Tubing
- Bundling & Securing
- Self-Affixing Cable Ties
- Edge Clip Cable Ties
HellermannTyton - 156-00878 - Specifications
| Brand Name | HellermannTyton |
|---|---|
| Decimal | 8.00 Inch |
| Dual | No |
| Heat Shrink | No Is Not Shrink Tubing |
| UNSPSC Code | 39130000 |
HellermannTyton - 156-00878 - Base Data
| Article Number | 156-00878 |
|---|---|
| Type | T50ROSEC24 |
| Color | Black (BK) |
| Quantity Per | bag |
| Short Description | Outside Serrated Cable Tie & Edge Clip, 8.0" Long, EC24, 3 - 6 mm Panel, 50lb, PA66HS, Black, 500/pkg |
| Global Part Name | T50ROSEC24-PA66HS/PA66HIRHS-BK |
HellermannTyton - 156-00878 - Product Dimensions
| Minimum Tensile Strength (Imperial) | 50 |
|---|---|
| Minimum Tensile Strength (Metric) | 225 |
| Length L (Imperial) | 8 |
| Length L (Metric) | 200 |
| Fixation Method | EdgeClip, sideway, assembled, 2 piece |
| Identification Plate Position | none |
| Releasable Closure | No |
| Variant | Outside Serrated |
| Width W (Imperial) | 0.18 |
| Width W (Metric) | 4.6 |
| Bundle Diameter Min (Imperial) | 0.04 |
| Bundle Diameter Min (Metric) | 1 |
| Bundle Diameter Max (Imperial) | 1.97 |
| Bundle Diameter Max (Metric) | 50 |
| Thickness T (Imperial) | 0.05 |
| Thickness T (Metric) | 1.3 |
| Height H (Imperial) | 0.05 |
| Height H (Metric) | 1.3 |
| Panel Thickness Min (Imperial) | 0.12 |
| Panel Thickness Max (Imperial) | 0.24 |
| Panel Thickness Min (Metric) | 3 |
| Panel Thickness Max (Metric) | 6 |
HellermannTyton - 156-00878 - Logistic & Packaging
| Package Quantity (Imperial) | 500 |
|---|---|
| Package Quantity (Metric) | 500 |
| Customs Number | 3.93E+09 |
HellermannTyton - 156-00878 - Materials & Specifications
| Material | Polyamide 6.6 heat stabilized (PA66HS)Polyamide 6.6, high impact modified, heat stabilized (PA66HIRHS) |
|---|---|
| Material Shortcut | PA66HSPA66HIRHS |
| Material Cable Tie | Polyamide 6.6 heat stabilized (PA66HS) |
| Flammability | UL 94 HB |
| UV Resistant (Yes/No) | No |
| Operating Temperature | -40°F to +221°F (-40°C to +105°C) |
| Reach Compliant (Article 33) | No |
| ROHS Compliant | Yes |
HellermannTyton - 156-00878 - Videos
| HellermannTyton 156-00878 Video URL | Click to View |
|---|---|
| HellermannTyton 156-00878 Video URL 2 | Click to View |
