HellermannTyton 156-01093 | Locking Clip, 10-14Mm, Assembled With T...
Description
Description

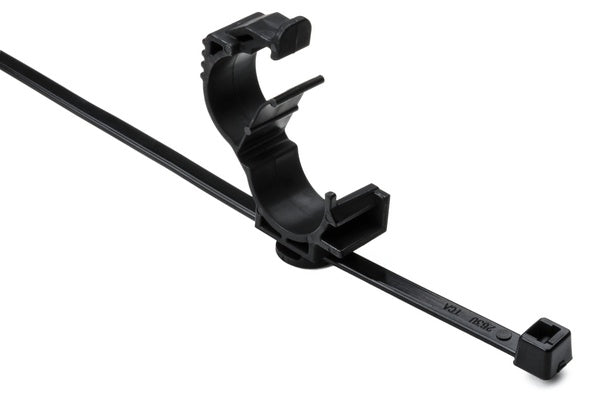

HellermannTyton’s Two-piece cable tie assembly offers dual bundle routing. The clip portion creates a full and secure lock completely around one bundle, while the cable tie creates a secure solution for a second bundle.
HellermannTyton's Two-piece cable tie assembly offers dual bundle routing. The clip portion creates a full and secure lock completely around one bundle, while the cable tie creates a secure solution for a second bundle.
About HellermannTyton: HellermannTyton is a global manufacturer of cable management and identification solutions for automotive, solar, electrical, construction, industrial automation, broadband and other OEM markets. The company's integrated approach to product design, sustainability, production, quality assurance and delivery is optimized to benefit local and global customers. HellermannTyton operates in 39 countries, with North American headquarters in Milwaukee, Wisconsin.
HellermannTyton - 156-01093 - Features
- The 360 degree enclosure ensures the entire bundle is secure when being routed by this clip.
- Locking tab on this clip is small enough that it will not interfere with any other portion of the wire routing, but is significant enough to allow for manual d isengagement if service is needed.
- The cable tie portion of this two-piece design allows for 2 wire bundles to be routed with the same piece.
- Offset design allows bundles to sit off of mounting points to avoid friction against surrounding areas.
- Fir tree gives 3 to 1 extraction versus insertion force making them strong and easy to install.
- Friction tab inside of fir tree allows tie to sit in mount without falling out prior to installation.
Specifications
Specifications
HellermannTyton - 156-01093 - Product Categories
- Hardware
- Cable Management
- Tubing
- Bundling & Securing
- Self-Affixing Cable Ties
- LOC Cable Ties
HellermannTyton - 156-01093 - Specifications
| Brand Name | HellermannTyton |
|---|---|
| Dual | Yes |
| Heat Shrink | No Is Not Shrink Tubing |
| UNSPSC Code | 39130000 |
HellermannTyton - 156-01093 - Base Data
| Article Number | 156-01093 |
|---|---|
| Type | T50RLOC10-14 |
| Color | Black (BK) |
| Quantity Per | box |
| Short Description | Locking Clip, 10-14mm, Assembled with T50R, PA66HIRHS, Black, 2000/CTN |
| Global Part Name | T50RLOC10-14-PA66HS/PA66HIRHS-BK |
HellermannTyton - 156-01093 - Product Dimensions
| Minimum Tensile Strength (Imperial) | 50 |
|---|---|
| Minimum Tensile Strength (Metric) | 220 |
| Length L (Imperial) | 1.72 |
| Length L (Metric) | 43.73 |
| Fixation Method | Omega Clips |
| Identification Plate Position | none |
| Width W (Imperial) | 0.47 |
| Width W (Metric) | 12 |
| Bundle Diameter Min (Imperial) | 0.39 |
| Bundle Diameter Min (Metric) | 10 |
| Bundle Diameter Max (Imperial) | 0.55 |
| Bundle Diameter Max (Metric) | 14 |
HellermannTyton - 156-01093 - Logistic & Packaging
| Package Quantity (Imperial) | 2000 |
|---|---|
| Package Quantity (Metric) | 2000 |
| Customs Number | 3.93E+09 |
HellermannTyton - 156-01093 - Materials & Specifications
| Material | Polyamide 6.6, high impact modified, heat stabilized (PA66HIRHS)Polyamide 6.6 heat stabilized (PA66HS) |
|---|---|
| Material Shortcut | PA66HIRHSPA66HS |
| UV Resistant (Yes/No) | No |
| Reach Compliant (Article 33) | Yes |
| ROHS Compliant | Yes |
HellermannTyton - 156-01093 - Videos
| HellermannTyton 156-01093 Video URL | Click to View |
|---|
