HellermannTyton 156-01345 | 1-Pc Cable Ties With Pipe Clip, 6.0" Long, Attaches To Diameter 1.2" - 1.5", Pa66Hs, Black, 250/Pkg
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
HellermannTyton 156-01345 | 1-Pc Cable Ties With Pipe Clip, 6.0&quo...
Description
Description

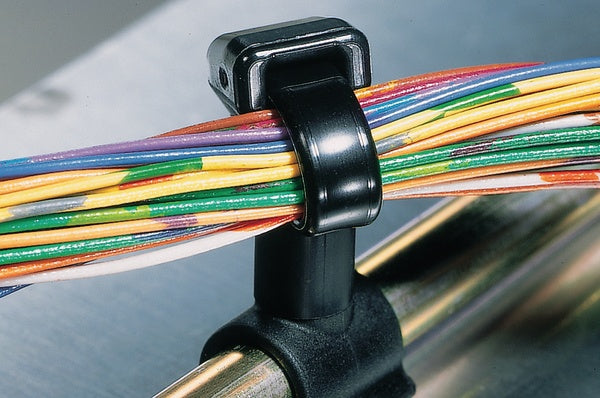

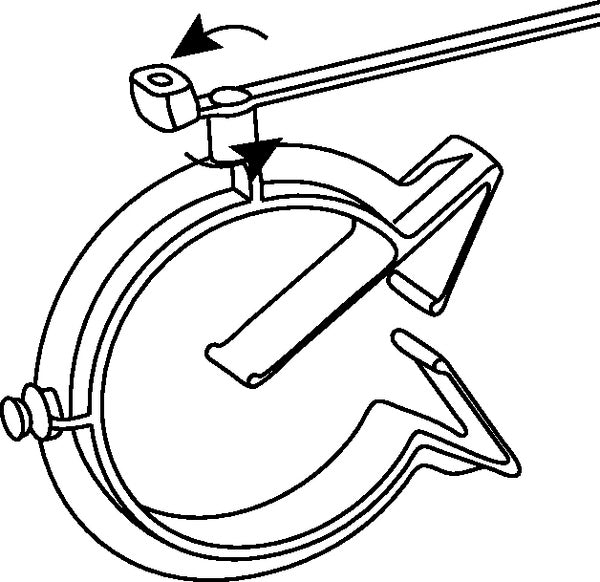

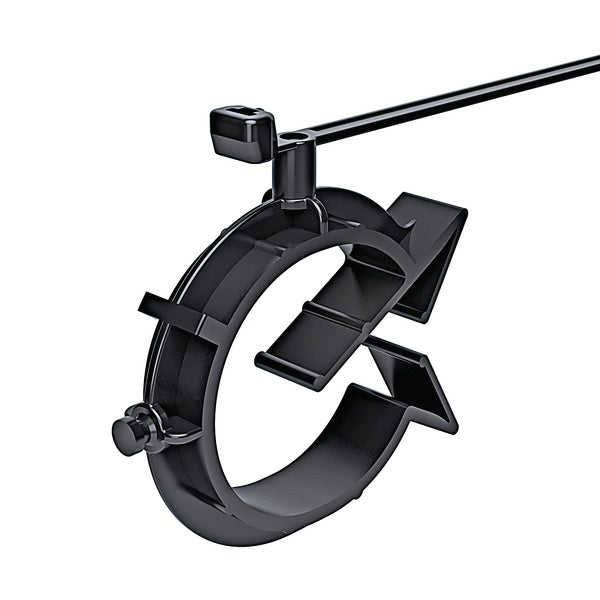

HellermannTyton’s 1-Piece Cable Tie with Pipe Clip secures cables to tubular frame rails. The cable tie bundles wires, cables or tubes, and the C-clip snaps onto the tubular frame rail. The clip can be removed from the mounting surface and reinstalled without additional fasteners.
HellermannTyton’s 1-Piece Cable Tie with Pipe Clip secures cables to tubular frame rails. The cable tie bundles wires, cables or tubes, and the C-clip snaps onto the tubular frame rail. The clip can be removed from the mounting surface and reinstalled without additional fasteners.
About HellermannTyton: HellermannTyton is a global manufacturer of cable management and identification solutions for automotive, solar, electrical, construction, industrial automation, broadband and other OEM markets. The company's integrated approach to product design, sustainability, production, quality assurance and delivery is optimized to benefit local and global customers. HellermannTyton operates in 39 countries, with North American headquarters in Milwaukee, Wisconsin.
HellermannTyton - 156-01345 - Features
- Bundle can rotate to any orientation, allowing routing in any direction regardless of mounting point.
- Clip is reusable, making relocation or adjustments simple.
- All-in-one bundling and mounting solution reduces costs.
- The 360 degree enclosure ensures the entire bundle is secure when being routed by this clip.
- Locking tab on this clip is small enough that it will not interfere with any other portion of the wire routing, but is significant enough to allow for manual disengagement if service is needed.
- The cable tie portion of this two-piece design allows for 2 wire bundles to be routed with the same piece.
Specifications
Specifications
HellermannTyton - 156-01345 - Product Categories
- Hardware
- Cable Management
- Tubing
- Bundling & Securing
- Cable Ties
- Cable Ties - Special Function
HellermannTyton - 156-01345 - Specifications
| Brand Name | HellermannTyton |
|---|---|
| Decimal | 6.00 Inch |
| Dual | No |
| Heat Shrink | No Is Not Shrink Tubing |
| UNSPSC Code | 39130000 |
HellermannTyton - 156-01345 - Base Data
| Article Number | 156-01345 |
|---|---|
| Type | T50SVCOC31-39 |
| Color | Black (BK) |
| Quantity Per | bag |
| Short Description | 1-Pc Cable Ties with Pipe Clip, 6.0" Long, Attaches to Diameter 1.2" - 1.5", PA66HS, Black, 250/pkg |
| Global Part Name | T50SVCOC31-39-PA66HS/PA66HIRHS-BK |
HellermannTyton - 156-01345 - Product Dimensions
| Minimum Tensile Strength (Imperial) | 50 |
|---|---|
| Minimum Tensile Strength (Metric) | 222 |
| Length L (Imperial) | 6.1 |
| Length L (Metric) | 155 |
| Fixation Method | Omega Clips |
| Identification Plate Position | none |
| Tie Closure | plastic pawl |
| Width W (Imperial) | 0.19 |
| Width W (Metric) | 4.7 |
| Bundle Diameter Min (Imperial) | 0.08 |
| Bundle Diameter Min (Metric) | 2 |
| Bundle Diameter Max (Imperial) | 1.4 |
| Bundle Diameter Max (Metric) | 35 |
| Thickness T (Metric) | 1.35 |
HellermannTyton - 156-01345 - Logistic & Packaging
| Package Quantity (Imperial) | 250 |
|---|---|
| Package Quantity (Metric) | 250 |
| Customs Number | 3.93E+09 |
HellermannTyton - 156-01345 - Materials & Specifications
| Material | Polyamide 6.6 heat stabilized (PA66HS)Polyamide 6.6, high impact modified, heat stabilized (PA66HIRHS) |
|---|---|
| Material Shortcut | PA66HIRHSPA66HS |
| Material Cable Tie | Polyamide 6.6 heat stabilized (PA66HS) |
| Flammability | UL 94 HB |
| UV Resistant (Yes/No) | No |
| Operating Temperature | -40°F to +221°F (-40°C to +105°C) |
| Reach Compliant (Article 33) | No |
| ROHS Compliant | Yes |
HellermannTyton - 156-01345 - Videos
| HellermannTyton 156-01345 Video URL | Click to View |
|---|
Documents and Downloads
Documents and Downloads
