HellermannTyton 156-01564 | LOC Locking Clamp, 20-25 mm, Unassemble...
Description
Description

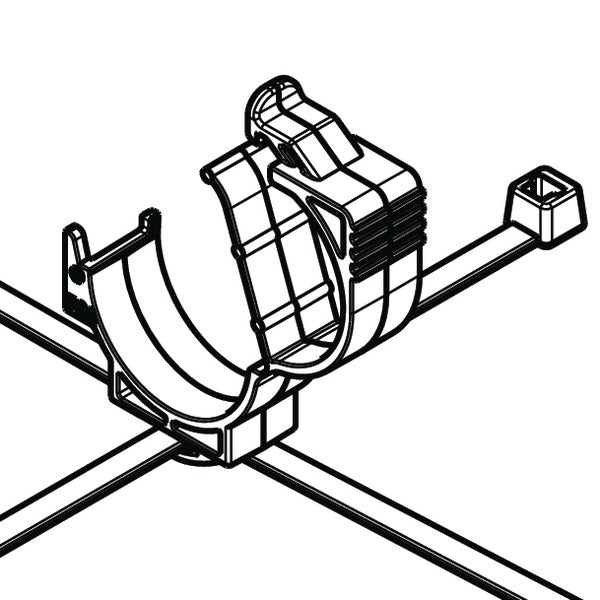

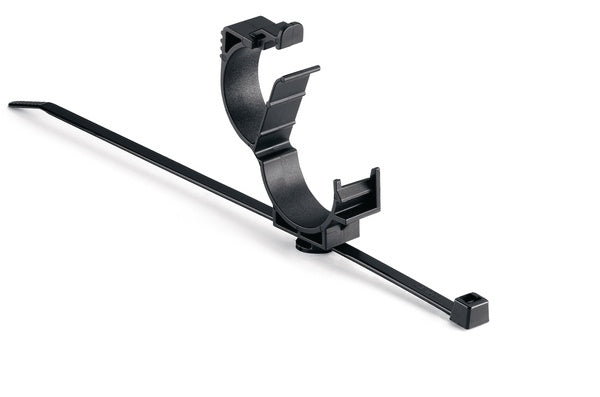

The 2-Piece LOC with Saddle to T50R Tie has a two-piece design that keeps two routings secured together while providing a semi-fixed orientation for each bundle. The saddle design allows 90-degree rotation of the bundles. Tie provides additional securi ty against axial slip by clamping around solid tube, pipe or harness.
The 2-Piece LOC with Saddle to T50R Tie has a two-piece design that keeps two routings secured together while providing a semi-fixed orientation for each bundle. The saddle design allows 90-degree rotation of the bundles. Tie provides additional security against axial slip by clamping around solid tube, pipe or harness.
About HellermannTyton: HellermannTyton is a global manufacturer of cable management and identification solutions for automotive, solar, electrical, construction, industrial automation, broadband and other OEM markets. The company's integrated approach to product design, sustainability, production, quality assurance and delivery is optimized to benefit local and global customers. HellermannTyton operates in 39 countries, with North American headquarters in Milwaukee, Wisconsin.
HellermannTyton - 156-01564 - Features
- The 360 degree locking enclosure and cable tie dynamically fit a range of bundle sizes.
- Clamp can be opened for bundle maintenance.
- Low-profile release tab won’t interfere with bundle or nearby routing.
- The two bundles are allowed to rotate up to 90 egrees from one another.
- Patented retention design of clip features inverted retaining legs, narrow opening and circular retainer to prevent inadvertent disengagement.
- Clip and clamp both offer easy bundle installation.
- Independent rotation allows for adjustable routing orientation.
- Locking clamp dynamically fits a range of bundle sizes.
Specifications
Specifications
HellermannTyton - 156-01564 - Product Categories
- OEM
- Cable Management and Electrical
- Cable Management
- Bundling & Securing
- Self-Affixing Cable Ties
- LOC Cable Ties
HellermannTyton - 156-01564 - Specifications
| Brand Name | HellermannTyton |
|---|---|
| Approvals | None |
| Category | Cable, Connectors And Clamps |
| Color | Black |
| Type | Cable Clamp |
| UNSPSC Code | 39121700 |
HellermannTyton - 156-01564 - Base Data
| Article Number | 156-01564 |
|---|---|
| Type | T50RLOC20-25SET |
| Color | Black (BK) |
| Quantity Per | carton |
| Short Description | LOC Locking Clamp, 20–25 mm, Unassembled to T50R Tie, PA66HIRHSUV, Black, 1000/ctn |
| Global Part Name | T50RLOC20-25SET-PA66HS/PA66HIRHSUV-BK |
HellermannTyton - 156-01564 - Product Dimensions
| Minimum Tensile Strength (Imperial) | 50 |
|---|---|
| Minimum Tensile Strength (Metric) | 225 |
| Length L (Imperial) | 1.46 |
| Length L (Metric) | 37.2 |
| Fixation Method | Omega Clips |
| Identification Plate Position | none |
| Releasable Closure | No |
| Tie Closure | plastic pawl |
| Variant | Inside Serrated |
| Bundle Diameter Min (Imperial) | 0.79 |
| Bundle Diameter Min (Metric) | 20 |
| Bundle Diameter Max (Imperial) | 0.98 |
| Bundle Diameter Max (Metric) | 25 |
| Height H (Imperial) | 1.53 |
| Height H (Metric) | 38.9 |
| Depth D (Imperial) | 0.47 |
| Depth D (Metric) | 12 |
HellermannTyton - 156-01564 - Logistic & Packaging
| Package Quantity (Imperial) | 1000 |
|---|---|
| Package Quantity (Metric) | 1000 |
| Customs Number | 3.93E+09 |
HellermannTyton - 156-01564 - Materials & Specifications
| Material | Polyamide 6.6 high impact modified, heat and UV stabilized (PA66HIRHSUV)Polyamide 6.6 heat stabilized (PA66HS) |
|---|---|
| Material Shortcut | PA66HSPA66HIRHSUV |
| Flammability | UL 94 HB |
| Halogen Free | Yes |
| UV Resistant (Yes/No) | Yes |
| Operating Temperature | -40°F to +230°F (-40°C to +110°C) |
| Reach Compliant (Article 33) | Yes |
| ROHS Compliant | Yes |
