HellermannTyton 156-01610 | 2-Piece Cable Tie/Fir Tree Mount, Unassembled Set, 8.9"L, 12mm Mounting Hole, PA66HIRHS, Black, 1000/ctn
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
HellermannTyton 156-01610 | 2-Piece Cable Tie/Fir Tree Mount, Unass...
Description
Description

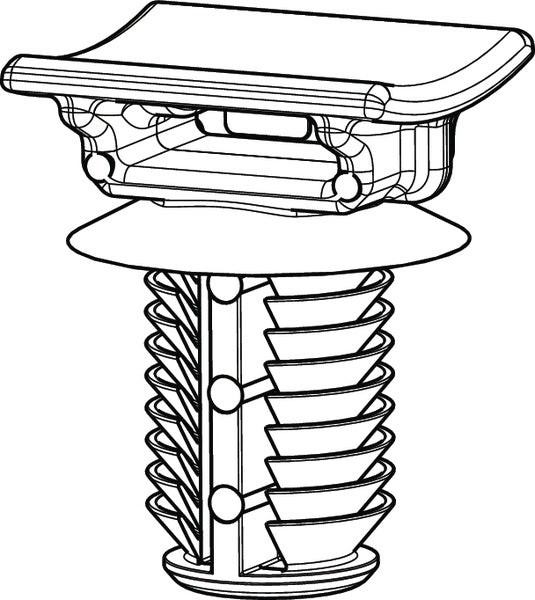

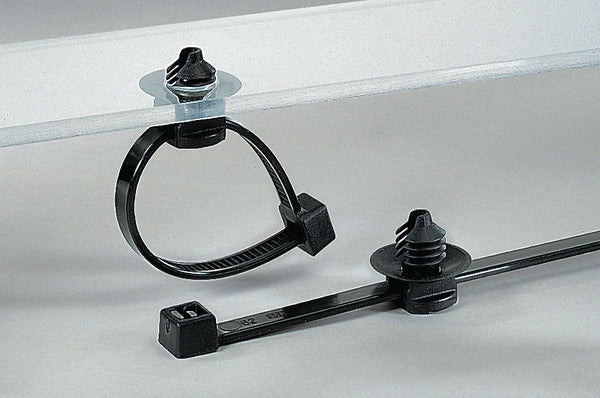

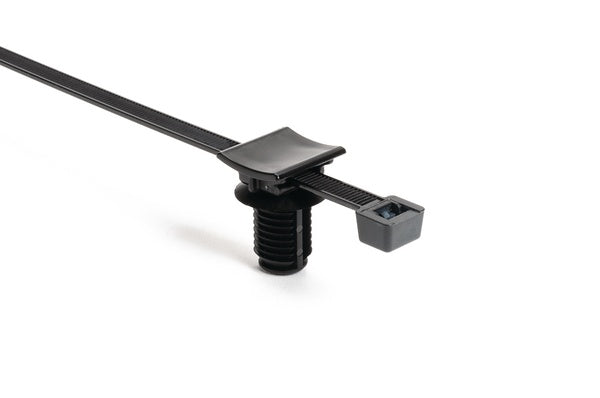

These two-piece fasteners are pre-assembled and offer a simple and versatile method of bundling and mounting cables. Sold as an unassembled set, this oval fir tree and tie combination allows the user to install the tie in two different directions, secu ring the bundle perpendicular or inline to the oval mounting hole.
These two-piece fasteners offer a simple and versatile method of bundling and mounting cables. Sold as an unassembled set, this oval fir tree and tie combination allows the user to install the tie in two different directions, securing the bundle perpendicular or inline to the oval mounting hole.
About HellermannTyton: HellermannTyton is a global manufacturer of cable management and identification solutions for automotive, solar, electrical, construction, industrial automation, broadband and other OEM markets. The company's integrated approach to product design, sustainability, production, quality assurance and delivery is optimized to benefit local and global customers. HellermannTyton operates in 39 countries, with North American headquarters in Milwaukee, Wisconsin.
HellermannTyton - 156-01610 - Features
- Robust fir tree design provides low insertion effort yet delivers exceptional retention strength in a 12 mm hole, for easy installation and reliable performance.
- Heavy Duty T120 tie provides a 120lb (534 N) tensile strength to secure bundles up to 2.2" (56 mm).
- Friction tab inside the fir tree allows the tie to sit in mount without falling out prior to installation.
- Disc feature prevents rattling in high-vibration applications and protects against debris ingress.
- All-in-one bundling and fastening solution reduces costs and assembly time.
- Anti-rotational oval fastener forces bundle to travel in intended direction.
- Offset cable ties route and position bundles away from a mounting hole to protect them from rubbing, heat or obstructions.
Specifications
Specifications
HellermannTyton - 156-01610 - Product Categories
- Hardware
- Tools and Supplies
- Supplies
- Bundling & Securing
- Self-Affixing Cable Ties
- Fir Tree Mount Cable Ties
HellermannTyton - 156-01610 - Specifications
| Brand Name | HellermannTyton |
|---|---|
| Type | Cables Ties And Accessories |
| UNSPSC Code | 39121703 |
HellermannTyton - 156-01610 - Base Data
| Article Number | 156-01610 |
|---|---|
| Type | T120SFT12SET |
| Color | Black (BK) |
| Quantity Per | carton |
| Short Description | 2-Pc Cable Tie/Fir Tree Mount, Unassembled Set, 9"L, 0.47" (12mm) Hole, PA66HIRHS, Black, 1000/ctn |
| Global Part Name | T120SFT12SET-PA66HS/PA66HIRHSUV-BK |
HellermannTyton - 156-01610 - Product Dimensions
| Minimum Tensile Strength (Imperial) | 120 |
|---|---|
| Minimum Tensile Strength (Metric) | 535 |
| Length L (Imperial) | 9 |
| Length L (Metric) | 229 |
| Fixation Method | Fir Tree |
| Identification Plate Position | none |
| Releasable Closure | No |
| Tie Closure | plastic pawl |
| Variant | Inside Serrated |
| Width W (Imperial) | 0.3 |
| Width W (Metric) | 7.6 |
| Bundle Diameter Min (Imperial) | 0.2 |
| Bundle Diameter Min (Metric) | 5 |
| Bundle Diameter Max (Imperial) | 2.17 |
| Bundle Diameter Max (Metric) | 55 |
| Thickness T (Imperial) | 0.07 |
| Thickness T (Metric) | 1.8 |
| Height H (Imperial) | 1.17 |
| Height H (Metric) | 29.7 |
| Panel Thickness Min (Imperial) | 0.02 |
| Panel Thickness Max (Imperial) | 0.43 |
| Panel Thickness Min (Metric) | 0.6 |
| Panel Thickness Max (Metric) | 11 |
| Mounting Hole Diameter D (Imperial) | 0.47 |
| Mounting Hole Diameter D (Metric) | 12.0 mm |
| Mounting Hole Diameter D Min (Imperial) | 0.046 |
| Mounting Hole Diameter D Max (Imperial) | 0.49 |
| Mounting Hole Diameter D Max (Metric) | 12.4 |
HellermannTyton - 156-01610 - Logistic & Packaging
| Package Quantity (Imperial) | 1000 |
|---|---|
| Package Quantity (Metric) | 1000 |
| Customs Number | 3.93E+09 |
HellermannTyton - 156-01610 - Materials & Specifications
| Material | Polyamide 6.6 heat stabilized (PA66HS)Polyamide 6.6 high impact modified, heat and UV stabilized (PA66HIRHSUV) |
|---|---|
| Material Shortcut | PA66HSPA66HIRHSUV |
| Material Cable Tie | Polyamide 6.6 heat stabilized (PA66HS) |
| Flammability | UL 94 HB |
| UV Resistant (Yes/No) | Yes |
| Operating Temperature | -40°F to +230°F (-40°C to +110°C) |
| Reach Compliant (Article 33) | No |
| ROHS Compliant | Yes |
