Brand: HellermannTyton | SKU: 9954248

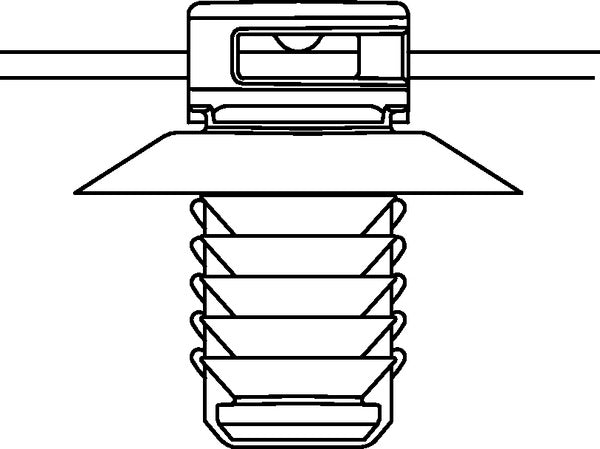

HellermannTyton 156-01641 | 2-Piece Cable Tie/Fir Tree Mount, 8.0" Long, 9-17 mm Mounting Hole, 50lb, PA66HIRHSUV, Black, 3000/ctn

Regular price $1.36
Shipping calculated at checkout.
  • Low prices.

    Price match guarantee

  • In-House Experts.

    We know our products

  • Easy Returns.

    Quick & Hassle Free

  • Superior Selection.

    Extensive product catalog

Description

HellermannTyton 156-01641 | 2-Piece Cable Tie/Fir Tree Mount, 8.0" Long, 9–17 Mm Mounting Hole, 50Lb, Pa66Hirhsuv, Black, 3000/Ctn

These two-piece fasteners are pre-assembled and offer a simple and versatile method of bundling and mounting cables runing perpendicular to 9x17 oval mounting holes. The fir tree base will easily push into pre-punched holes in panels or threaded blind holes and offers a secure fit. The two-piece design enables the head of the tie to be orientated to the required position to ease assembly, while the disc on top of the fir tree covers the hole and minimizes the ingress of water and dirt.

These two-piece fasteners are pre-assembled and offer a simple and versatile method of bundling and mounting cables runing perpendicular to 9x17 oval mounting holes. The fir tree base will easily push into pre-punched holes in panels or threaded blind holes and offers a secure fit. The two-piece design enables the head of the tie to be oriented to the required position to ease assembly, while the disc on top of the fir tree covers the hole and minimizes the ingress of water and dirt.

About HellermannTyton: HellermannTyton is a global manufacturer of cable management and identification solutions for automotive, solar, electrical, construction, industrial automation, broadband and other OEM markets. The company's integrated approach to product design, sustainability, production, quality assurance and delivery is optimized to benefit local and global customers. HellermannTyton operates in 39 countries, with North American headquarters in Milwaukee, Wisconsin.

HellermannTyton - 156-01641 - Features

  • Updated 9x17mm oval fir tree design maintains bundle orientation.
  • Fir tree provides low insertion force with high extraction resistance, for easy assembly and reliable performance.
  • Disc feature prevents rattling in high-vibration applications and protects against debris ingress.
  • Bundle can rotate to any orientation, allowing routing in any direction regardless of mounting point.
  • 2-piece design allows installer to slide clip around cable tie to obtain optimum orientation
  • Clip is reusable, making relocation or adjustments simple

Specifications

HellermannTyton - 156-01641 - Product Categories

  • Hardware
  • Cable Management
  • Tubing
  • Bundling & Securing
  • Self-Affixing Cable Ties
  • Fir Tree Mount Cable Ties

HellermannTyton - 156-01641 - Specifications

Brand NameHellermannTyton
Decimal8.00 Inch
DualNo
Heat ShrinkNo Is Not Shrink Tubing
Spiral WrapNo
UNSPSC Code39130000

HellermannTyton - 156-01641 - Base Data

Article Number156-01641
TypeT50RFT9X17B2
ColorBlack (BK)
Quantity Percarton
Short Description2-Piece Cable Tie/Fir Tree Mount, 8.0" Long, 9–17 mm Mounting Hole, 50lb, PA66HIRHSUV, Black, 3000/ctn
Global Part NameT50RFT9X17B2-PA66HIRHSUV-BK

HellermannTyton - 156-01641 - Product Dimensions

Minimum Tensile Strength (Imperial)50
Minimum Tensile Strength (Metric)225
Length L (Imperial)8
Length L (Metric)203.2
Fixation MethodFir Tree for oval holes
Identification Plate Positionnone
Tie Closureplastic pawl
Width W (Imperial)0.18
Width W (Metric)4.6
Bundle Diameter Min (Imperial)0.2
Bundle Diameter Min (Metric)5
Bundle Diameter Max (Imperial)2
Bundle Diameter Max (Metric)50
Panel Thickness Min (Imperial)0.02
Panel Thickness Max (Imperial)0.22
Panel Thickness Min (Metric)0.6
Panel Thickness Max (Metric)5.5
Mounting Hole Diameter D (Imperial)0.35 - 0.67
Mounting Hole Diameter D (Metric)9.0 x 17.0 mm

HellermannTyton - 156-01641 - Logistic & Packaging

Package Quantity (Imperial)3000
Package Quantity (Metric)3000
Customs Number3.93E+09

HellermannTyton - 156-01641 - Materials & Specifications

MaterialPolyamide 6.6 high impact modified, heat and UV stabilized (PA66HIRHSUV)
Material ShortcutPA66HIRHSUV
UV Resistant (Yes/No)Yes
Operating Temperature-40°F to +221°F (-40°C to +105°C)
Reach Compliant (Article 33)Yes
ROHS CompliantYes
