HellermannTyton 156-01668 | 2-Piece M5/T5/M6/T6 Stud Mount Tie, 8.0" Tie, 50lb Tensile Strength, PA46, BN/GY, 3000/pkg
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
HellermannTyton 156-01668 | 2-Piece M5/T5/M6/T6 Stud Mount Tie, 8.0...
Description
Description

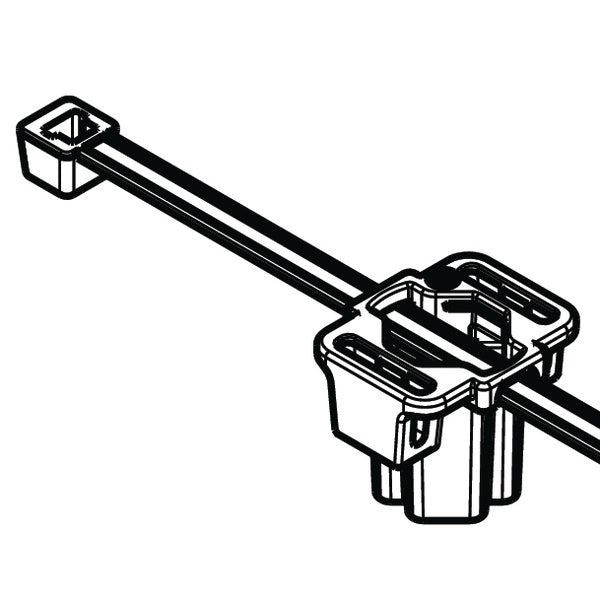

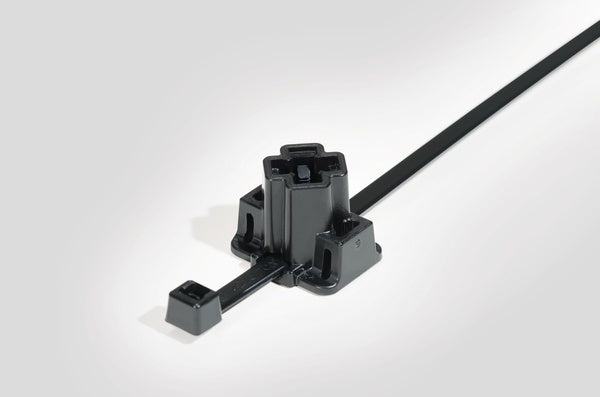

Unique, two-piece design allows routing to be above, parallel or perpendicular to stud. This also enables up to three separate bundles to be fastened to the same stud. With their low insertion force and high extraction performance, HellermannTyton moun ting ties offer the ideal combination of high-grade materials and superior design to suit the mounting and bundling needs of complex applications. Available in standard and high-heat material options.
Unique, two-piece design allows routing to be above, parallel or perpendicular to stud. This also enables up to three separate bundles to be fastened to the same stud. With their low insertion force and high extraction performance, HellermannTyton mounting ties offer the ideal combination of high-grade materials and superior design to suit the mounting and bundling needs of complex applications. Available in standard and high-heat material options.
About HellermannTyton: HellermannTyton is a global manufacturer of cable management and identification solutions for automotive, solar, electrical, construction, industrial automation, broadband and other OEM markets. The company's integrated approach to product design, sustainability, production, quality assurance and delivery is optimized to benefit local and global customers. HellermannTyton operates in 39 countries, with North American headquarters in Milwaukee, Wisconsin.
HellermannTyton - 156-01668 - Features
- Versatile design allows cable routing above, perpendicular or parallel to stud.

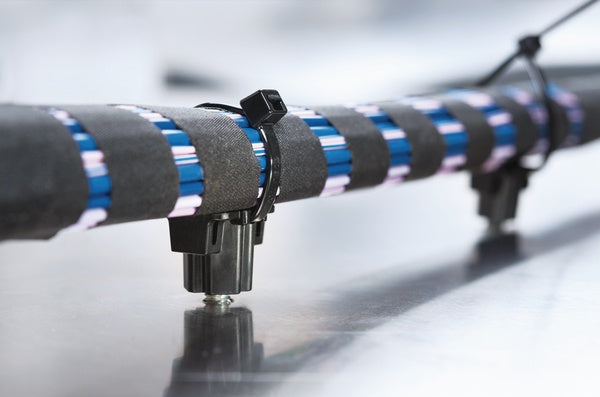

- Can mount up to three bundles simultaneously, making efficient use of a single mounting point.
- Four-pawl, three-tooth design delivers outstanding stud retention to keep bundles secure.

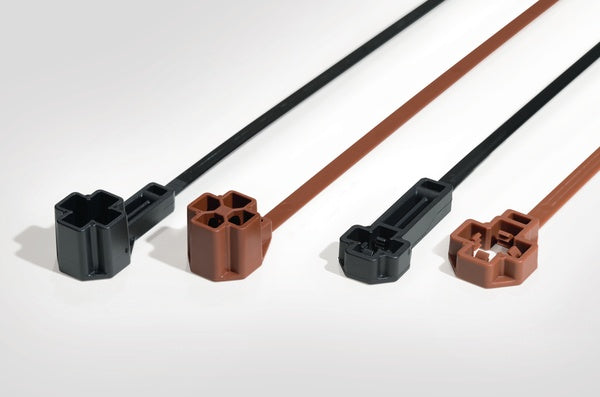

- PA46 material option allows use in high-heat applications.
- Versatile design allows cable routing above, perpendicular or parallel to stud.
- Can mount up to three bundles simultaneously, making efficient use of a single mounting point.
- Four-pawl, three-tooth design delivers outstanding stud retention to keep bundles secure.
Specifications
Specifications
HellermannTyton - 156-01668 - Product Categories
- Hardware
- Tools and Supplies
- Supplies
- Bundling & Securing
- Self-Affixing Cable Ties
- Stud Mount Cable Ties
HellermannTyton - 156-01668 - Specifications
| Brand Name | HellermannTyton |
|---|---|
| Cable Tie Diameter | 8" |
| Type | Cables Ties And Accessories |
| UNSPSC Code | 39121703 |
HellermannTyton - 156-01668 - Base Data
| Article Number | 156-01668 |
|---|---|
| Type | T50R1SBS5-6U-SET |
| Color | Gray (GY)Brown (BN) |
| Quantity Per | carton |
| Short Description | 2-Piece M5/T5/M6/T6 Stud Mount Tie, 8.0" Tie, 50lb Tensile Strength, PA46, BN/GY, 3000/pkg |
| Global Part Name | T50R1SBS5-6U-SET-PA46-BN/GY |
HellermannTyton - 156-01668 - Product Dimensions
| Minimum Tensile Strength (Imperial) | 50 |
|---|---|
| Minimum Tensile Strength (Metric) | 223 |
| Length L (Imperial) | 8 |
| Length L (Metric) | 203.2 |
| Fixation Method | Stud Mount |
| Identification Plate Position | none |
| Releasable Closure | No |
| Tie Closure | plastic pawl |
| Width W (Imperial) | 0.92 |
| Width W (Metric) | 23.25 |
| Bundle Diameter Min (Imperial) | 0.16 |
| Bundle Diameter Min (Metric) | 4 |
| Bundle Diameter Max (Imperial) | 1.97 |
| Bundle Diameter Max (Metric) | 50 |
| Cable Ties | 156-01668 |
| Height H (Imperial) | 0.74 |
| Height H (Metric) | 18.75 |
| Mounting Hole Diameter D (Imperial) | 0.20" x 0.03"; 0.24" x 0.04"; 0.20 |
| Mounting Hole Diameter D (Metric) | M6 x 1M5 x 0.8T5 |
| Stud Diameter (Metric) | 6.0 mm5.0 mm |
| Stud Diamater (Imperial) | 0.20 ", 0.24 |
HellermannTyton - 156-01668 - Logistic & Packaging
| Package Quantity (Imperial) | 3000 |
|---|---|
| Package Quantity (Metric) | 3000 |
| Customs Number | 3.93E+09 |
HellermannTyton - 156-01668 - Materials & Specifications
| Material | Polyamide 4.6 (PA46) |
|---|---|
| Material Shortcut | PA46 |
| Material Cable Tie | Polyamide 4.6 (PA46) |
| UV Resistant (Yes/No) | No |
| Operating Temperature | -40°F to +266°F (-40°C to +130°C) |
| Reach Compliant (Article 33) | Yes |
| ROHS Compliant | Yes |
