HellermannTyton 156-01814 | MOC Clip, 8 mm, Unassembled to T50R Tie...
Description
Description

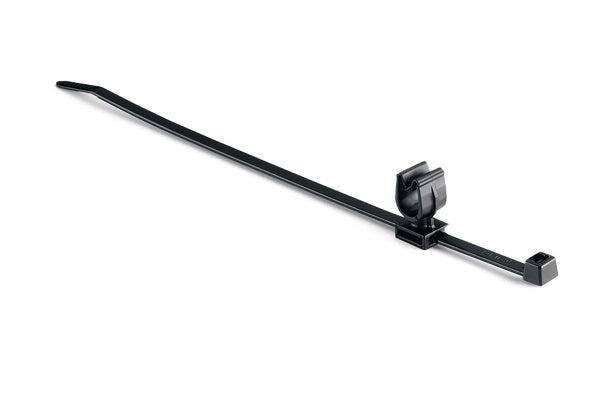

The MOC with Saddle to T50R Tie has a two-piece design that keeps two routings secured together while providing a fixed orientation for each bundle. The bi-directional saddle design allows the bundles to be coupled parallel or perpendicular to one anot her. Tie provides additional security against axial slip by clamping around solid tube, pipe or harness.
The MOC with Saddle to T50R Tie has a two-piece design that keeps two routings secured together while providing a fixed orientation for each bundle. The bi-directional saddle design allows the bundles to be coupled parallel or perpendicular to one another. Tie provides additional security against axial slip by clamping around solid tube, pipe or harness.
About HellermannTyton: HellermannTyton is a global manufacturer of cable management and identification solutions for automotive, solar, electrical, construction, industrial automation, broadband and other OEM markets. The company's integrated approach to product design, sustainability, production, quality assurance and delivery is optimized to benefit local and global customers. HellermannTyton operates in 39 countries, with North American headquarters in Milwaukee, Wisconsin.
HellermannTyton - 156-01814 - Features
- Patented retention design on clip features inverted retaining legs, narrow opening and circular retainer to prevent inadvertent disengagement.
- Controlled flex and angled entry promote easy installation.
- Fixed connector controls routing orientation.
- Cble tie accommodates wide range of secondary bundle sizes.
- Patented retention design on clip features inverted retaining legs, narrow opening and circular retainer to prevent inadvertent disengagement.
- Controlled flex and angled entry promote easy installation.
- Fixed connector controls routing orientation.
- Cable tie accommodates wide range of secondary bundle sizes.
Specifications
Specifications
HellermannTyton - 156-01814 - Product Categories
- OEM
- Cable Management and Electrical
- Cable Management
- Bundling & Securing
- Self-Affixing Cable Ties
- MOC Cable Ties
HellermannTyton - 156-01814 - Specifications
| Brand Name | HellermannTyton |
|---|---|
| Approvals | None |
| Category | Clips And Clamps |
| Color | Black |
| Rohs Compliant | Yes |
| Type | Clip Assembly |
| UNSPSC Code | 39121700 |
HellermannTyton - 156-01814 - Base Data
| Article Number | 156-01814 |
|---|---|
| Type | T50RMOC8SAD-SET |
| Color | Black (BK) |
| Quantity Per | carton |
| Short Description | MOC Clip, 8 mm, Unassembled to T50R Tie, PA66HIRHSUV, Black, 1000/ctn |
| Global Part Name | T50RMOC8SAD-SET-PA66HIRHSUV-BK |
HellermannTyton - 156-01814 - Product Dimensions
| Minimum Tensile Strength (Imperial) | 50 |
|---|---|
| Minimum Tensile Strength (Metric) | 225 |
| Length L (Imperial) | 0.52 |
| Length L (Metric) | 13.2 |
| Fixation Method | Omega Clips |
| Identification Plate Position | none |
| Releasable Closure | No |
| Tie Closure | plastic pawl |
| Variant | Inside Serrated |
| Bundle Diameter Min (Imperial) | 0.28 |
| Bundle Diameter Min (Metric) | 7 |
| Bundle Diameter Max (Imperial) | 0.35 |
| Bundle Diameter Max (Metric) | 9 |
| Height H (Imperial) | 0.82 |
| Height H (Metric) | 20.9 |
| Depth D (Imperial) | 0.39 |
| Depth D (Metric) | 10 |
HellermannTyton - 156-01814 - Logistic & Packaging
| Package Quantity (Imperial) | 1000 |
|---|---|
| Package Quantity (Metric) | 1000 |
| Customs Number | 3.93E+09 |
HellermannTyton - 156-01814 - Materials & Specifications
| Material | Polyamide 6.6 high impact modified, heat and UV stabilized (PA66HIRHSUV) |
|---|---|
| Material Shortcut | PA66HIRHSUV |
| Flammability | UL 94 HB |
| Halogen Free | Yes |
| UV Resistant (Yes/No) | Yes |
| Operating Temperature | -40°F to +230°F (-40°C to +110°C) |
| Reach Compliant (Article 33) | No |
| ROHS Compliant | Yes |
