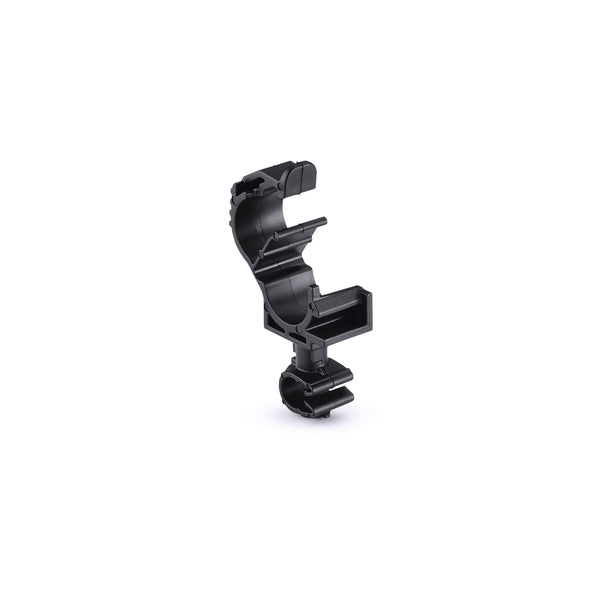

HellermannTyton 156-01831 | LOC Locking Clamp, 5-9 mm, to MOC Clip,...
Description
Description
The MOC to LOC is a rotatable dual routing clip and clamp combination that keeps two routings secured and separated. A swivel coupler allows them to rotate independently of each other.
The MOC to LOC is a rotatable dual routing clip and clamp combination that keeps two routings secured and separated. A swivel coupler allows them to rotate independently of each other.
About HellermannTyton: HellermannTyton is a global manufacturer of cable management and identification solutions for automotive, solar, electrical, construction, industrial automation, broadband and other OEM markets. The company's integrated approach to product design, sustainability, production, quality assurance and delivery is optimized to benefit local and global customers. HellermannTyton operates in 39 countries, with North American headquarters in Milwaukee, Wisconsin.
HellermannTyton - 156-01831 - Features
- Patented retention design of clip features inverted retaining legs, narrow opening and circular retainer to prevent inadvertent disengagement.
- Clip and clamp both offer easy bundle installation.
- Independent rotation allows for adjustable routing orientation.
- Locking clamp dynamically fits a range of bundle sizes.
- Patented retention design of clip features inverted retaining legs, narrow opening and circular retainer to prevent inadvertent disengagement.
- Clip and clamp both offer easy bundle installation.
- Independent rotation allows for adjustable routing orientation.
- Locking clamp dynamically fits a range of bundle sizes.
Specifications
Specifications
HellermannTyton - 156-01831 - Product Categories
- OEM
- Cable Management and Electrical
- Cable Management
- Bundling & Securing
- Bundle Separators
- MOC to LOC Bundle Separators
HellermannTyton - 156-01831 - Specifications
| Brand Name | HellermannTyton |
|---|---|
| Approvals | None |
| Category | Cable, Connectors And Clamps |
| Color | Black |
| Rohs Compliant | Yes |
| Type | Cable Clamp |
| UNSPSC Code | 39121700 |
HellermannTyton - 156-01831 - Base Data
| Article Number | 156-01831 |
|---|---|
| Type | MOC7FLOC5-9 |
| Color | Black (BK) |
| Quantity Per | carton |
| Short Description | LOC Locking Clamp, 5-9 mm, to MOC Clip, 7 mm, PA66HIRHSUV, Black, 2000/ctn |
| Global Part Name | MOC7FLOC5-9-PA66HIRHSUV-BK |
HellermannTyton - 156-01831 - Product Dimensions
| Length L (Imperial) | 1.46 |
|---|---|
| Length L (Metric) | 37.2 |
| Variant | Clip to Clamp |
| Bundle Diameter Min (Imperial) | 0.24 |
| Bundle Diameter Min (Metric) | 6 |
| Bundle Diameter Max (Imperial) | 0.31 |
| Bundle Diameter Max (Metric) | 8 |
| Height H (Imperial) | 0.93 |
| Height H (Metric) | 23.6 |
| Depth D (Imperial) | 0.47 |
| Depth D (Metric) | 12 |
HellermannTyton - 156-01831 - Logistic & Packaging
| Package Quantity (Imperial) | 2000 |
|---|---|
| Package Quantity (Metric) | 2000 |
| Customs Number | 3.93E+09 |
HellermannTyton - 156-01831 - Materials & Specifications
| Material | Polyamide 6.6 high impact modified, heat and UV stabilized (PA66HIRHSUV) |
|---|---|
| Material Shortcut | PA66HIRHSUV |
| Flammability | UL 94 HB |
| Halogen Free | Yes |
| UV Resistant (Yes/No) | Yes |
| Operating Temperature | -40°F to +230°F (-40°C to +110°C) |
| Reach Compliant (Article 33) | No |
| ROHS Compliant | Yes |
