HellermannTyton 156-02280 | MOC Clip to MOC Clip, 5 mm, 5 mm, PA66HIRHSUV, Black, 1000/ctn
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
HellermannTyton 156-02280 | MOC Clip to MOC Clip, 5 mm, 5 mm, PA66H...
Description
Description

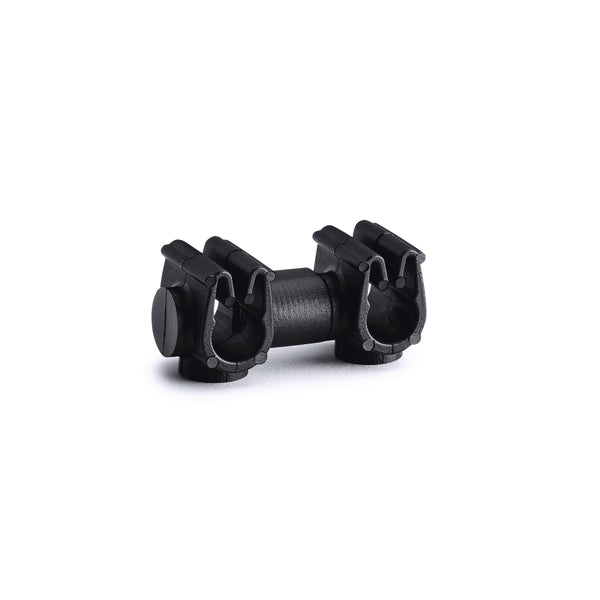

The MOC to MOC is a rotatable dual routing clip that keeps two routings secured and separated. A swivel coupler allows them to rotate independently of each other.
The MOC to MOC is a rotatable dual routing clip that keeps two routings secured and separated. A swivel coupler allows them to rotate independently of each other.
About HellermannTyton: HellermannTyton is a global manufacturer of cable management and identification solutions for automotive, solar, electrical, construction, industrial automation, broadband and other OEM markets. The company's integrated approach to product design, sustainability, production, quality assurance and delivery is optimized to benefit local and global customers. HellermannTyton operates in 39 countries, with North American headquarters in Milwaukee, Wisconsin.
HellermannTyton - 156-02280 - Features
- Patented retention design features inverted retaining legs, narrow opening and circular retainer to prevent inadvertent disengagement.
- Controlled flex and angled entry promote easy installation.
- Independent rotation allows for adjustable routing orientation.
- Patented retention design features inverted retaining legs, narrow opening and circular retainer to prevent inadvertent disengagement.
- Controlled flex and angled entry promote easy installation.
- Independent rotation allows for adjustable routing orientation.
Specifications
Specifications
HellermannTyton - 156-02280 - Product Categories
- OEM
- Cable Management and Electrical
- Cable Management
- Bundling & Securing
- Bundle Separators
- MOC Clips to MOC Clips
HellermannTyton - 156-02280 - Specifications
| Brand Name | HellermannTyton |
|---|---|
| Approvals | None |
| Category | Clips And Clamps |
| Color | Black |
| Rohs Compliant | Yes |
| Type | Clip Assembly |
| UNSPSC Code | 39121700 |
HellermannTyton - 156-02280 - Base Data
| Article Number | 156-02280 |
|---|---|
| Type | MOC5FMOC5M |
| Color | Black (BK) |
| Quantity Per | carton |
| Short Description | MOC Clip to MOC Clip, 5 mm, 5 mm, PA66HIRHSUV, Black, 500/ctn |
| Global Part Name | MOC5FMOC5M-PA66HIRHSUV-BK |
HellermannTyton - 156-02280 - Product Dimensions
| Length L (Imperial) | 0.95 |
|---|---|
| Length L (Metric) | 24.1 |
| Variant | Clip to Clip |
| Bundle Diameter Min (Imperial) | 0.16 |
| Bundle Diameter Min (Metric) | 4 |
| Bundle Diameter Max (Imperial) | 0.22 |
| Bundle Diameter Max (Metric) | 5.5 |
| Height H (Imperial) | 0.43 |
| Height H (Metric) | 10.8 |
| Depth D (Imperial) | 0.39 |
| Depth D (Metric) | 10 |
HellermannTyton - 156-02280 - Logistic & Packaging
| Package Quantity (Imperial) | 500 |
|---|---|
| Package Quantity (Metric) | 500 |
| Customs Number | 3.93E+09 |
HellermannTyton - 156-02280 - Materials & Specifications
| Material | Polyamide 6.6 high impact modified, heat and UV stabilized (PA66HIRHSUV) |
|---|---|
| Material Shortcut | PA66HIRHSUV |
| Flammability | UL 94 HB |
| Halogen Free | Yes |
| UV Resistant (Yes/No) | Yes |
| Operating Temperature | -40°F to +230°F (-40°C to +110°C) |
| Reach Compliant (Article 33) | No |
| ROHS Compliant | Yes |
