HellermannTyton 156-02384 | Loc Locking Clamp, 5–9 Mm, With T50Smvc Swivel Tie, Pa66Hirhsuv, Black, 1000/Ctn
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
HellermannTyton 156-02384 | Loc Locking Clamp, 5–9 Mm, With T50Smvc...
Description
Description

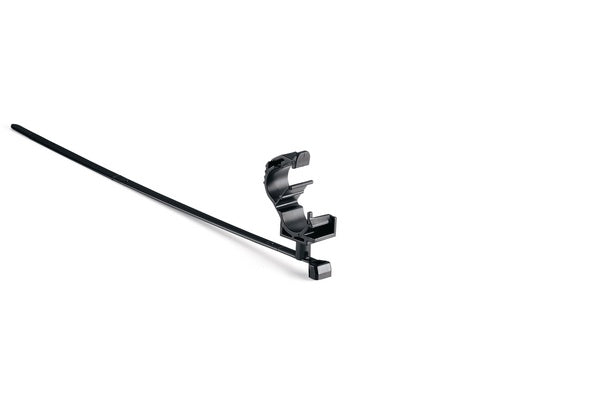

HellermannTyton’s 1-Piece Cable Tie with Pipe Clip secures cables to tubular frame rails. The cable tie bundles wires, cables or tubes, and the C-clip snaps onto the tubular frame rail. The clip can be removed from the mounting surface and reinstalled without additional fasteners.
HellermannTyton’s 1-Piece Cable Tie with Pipe Clip secures cables to tubular frame rails. The cable tie bundles wires, cables or tubes, and the C-clip snaps onto the tubular frame rail. The clip can be removed from the mounting surface and reinstalled without additional fasteners.
About HellermannTyton: HellermannTyton is a global manufacturer of cable management and identification solutions for automotive, solar, electrical, construction, industrial automation, broadband and other OEM markets. The company's integrated approach to product design, sustainability, production, quality assurance and delivery is optimized to benefit local and global customers. HellermannTyton operates in 39 countries, with North American headquarters in Milwaukee, Wisconsin.
HellermannTyton - 156-02384 - Features
- Bundle can rotate to any orientation, allowing routing in any direction regardless of mounting point.
- Clip is reusable, making relocation or adjustments simple.
- All-in-one bundling and mounting solution reduces costs.
- Edge Clip applies easily to plastic and metal sheets without the need for a mounting hole.
- Edge Clip provides low insertion force and high extraction force ideal for assembly environments.
Specifications
Specifications
HellermannTyton - 156-02384 - Product Categories
- OEM
- Cable Management and Electrical
- Cable Management
- Bundling & Securing
- Self-Affixing Cable Ties
- LOC Cable Ties
HellermannTyton - 156-02384 - Specifications
| Brand Name | HellermannTyton |
|---|---|
| Approvals | None |
| Category | Cable, Connectors And Clamps |
| Color | Black |
| Type | Cable Clamp |
| UNSPSC Code | 39121700 |
HellermannTyton - 156-02384 - Base Data
| Article Number | 156-02384 |
|---|---|
| Type | T50SMVCLOC5-9 |
| Color | Black (BK) |
| Quantity Per | carton |
| Short Description | LOC Locking Clamp, 5–9 mm, with T50SMVC Swivel Tie, PA66HIRHSUV, Black, 1000/ctn |
| Global Part Name | T50SMVCLOC5-9-PA66HIRHSUV-BK |
HellermannTyton - 156-02384 - Product Dimensions
| Minimum Tensile Strength (Imperial) | 50 |
|---|---|
| Minimum Tensile Strength (Metric) | 225 |
| Length L (Imperial) | 8.3 |
| Length L (Metric) | 210 |
| Fixation Method | Omega Clips |
| Identification Plate Position | none |
| Width W (Imperial) | 0.47 |
| Width W (Metric) | 12 |
| Bundle Diameter Min (Imperial) | 0.2 |
| Bundle Diameter Min (Metric) | 5 |
| Bundle Diameter Max (Imperial) | 0.35 |
| Bundle Diameter Max (Metric) | 9 |
| Height H (Imperial) | 1.08 |
| Height H (Metric) | 23.6 |
| Depth D (Imperial) | 0.47 |
| Depth D (Metric) | 12 |
| Mounting Hole Diameter D (Imperial) | 0.2 " - 0.35 |
| Mounting Hole Diameter D (Metric) | 5.0 - 9.0 mm |
HellermannTyton - 156-02384 - Logistic & Packaging
| Package Quantity (Imperial) | 1000 |
|---|---|
| Package Quantity (Metric) | 1000 |
| Customs Number | 3.93E+09 |
HellermannTyton - 156-02384 - Materials & Specifications
| Material | Polyamide 6.6 high impact modified, heat and UV stabilized (PA66HIRHSUV) |
|---|---|
| Material Shortcut | PA66HIRHSUV |
| Material Cable Tie | Polyamide 6.6, high impact modified, heat stabilized (PA66HIRHS) |
| Flammability | UL 94 HB |
| Halogen Free | Yes |
| UV Resistant (Yes/No) | Yes |
| Operating Temperature | -40°F to +230°F (-40°C to +110°C) |
| Reach Compliant (Article 33) | No |
| ROHS Compliant | Yes |
HellermannTyton - 156-02384 - Videos
| HellermannTyton 156-02384 Video URL | Click to View |
|---|
