HellermannTyton 156-02513 | Cable Tie with Button Mount, 0.35"...
Description
Description

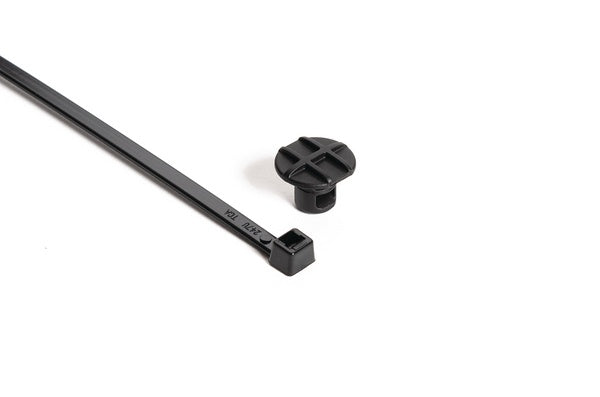

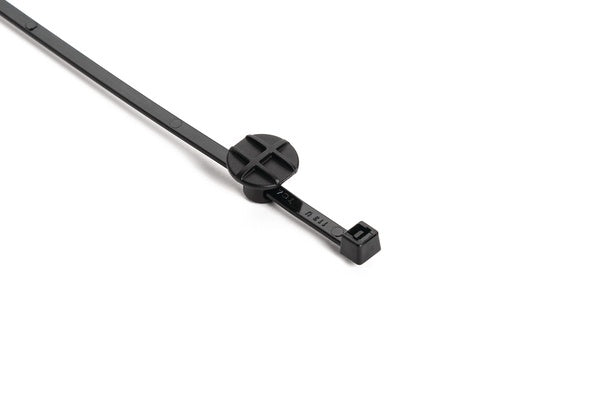

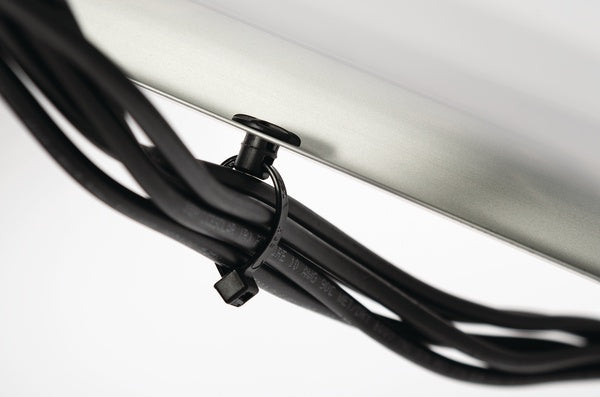

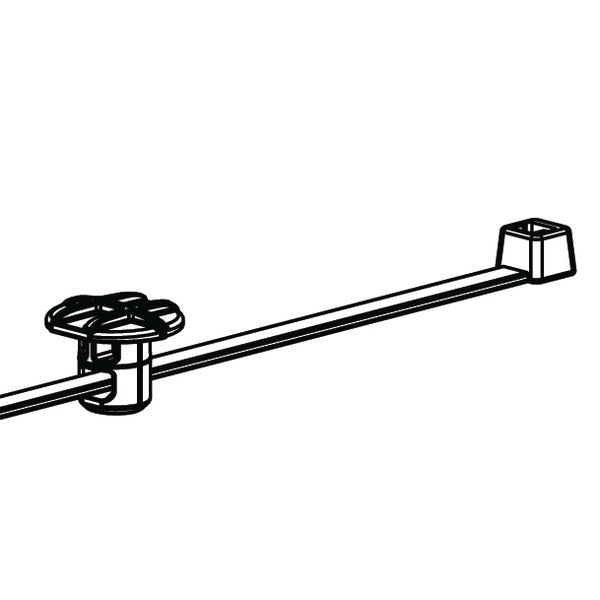

This button head mount includes a cable tie to secure cables and wire bundles to panels. Once placed through the panel hole, installers can insert the cable tie through the mount on the panel’s opposite surface. The button head mount is designed to fit pre-stamped oval hole sizes from 9x12 mm to 9x14 mm with zero insertion force. Made from impact-modified, heat-resistant, UV stabilized Polyamide 6.6 material, it will withstand extreme environments.
This button head mount includes a cable tie to secure cables and wire bundles to panels. Once placed through the panel hole, installers can insert the cable tie through the mount on the panel’s opposite surface. The button head mount is designed to fit pre-stamped oval hole sizes from 9x12 mm to 9x14 mm with zero insertion force. Made from impact-modified, heat-resistant, UV stabilized Polyamide 6.6 material, it will withstand extreme environments.
About HellermannTyton: HellermannTyton is a global manufacturer of cable management and identification solutions for automotive, solar, electrical, construction, industrial automation, broadband and other OEM markets. The company's integrated approach to product design, sustainability, production, quality assurance and delivery is optimized to benefit local and global customers. HellermannTyton operates in 39 countries, with North American headquarters in Milwaukee, Wisconsin.
HellermannTyton - 156-02513 - Features
- Capable of holding several cables, depending on cable tie size, for ultimate flexibility.
- Zero-insertion-force design requires no tools for quick and easy mounting.
- High impact modified, heat-resistant, UV stabilized material is ideal for long-term performance, even in extreme weather.
- High-impact, heat and UV stabilized heavy duty cable ties contain an impact modifier allowing greater flexibility and greater resistance to vibration
- Head design provides high tensile strength with very low insertion force
Specifications
Specifications
HellermannTyton - 156-02513 - Product Categories
- Hardware
- Cable Management
- Tubing
- Bundling & Securing
- Self-Affixing Cable Ties
- Button Head Cable Ties
HellermannTyton - 156-02513 - Specifications
| Brand Name | HellermannTyton |
|---|---|
| Dual | No |
| Heat Shrink | No Is Not Shrink Tubing |
| UNSPSC Code | 39130000 |
HellermannTyton - 156-02513 - Base Data
| Article Number | 156-02513 |
|---|---|
| Type | T50RPBM9SET |
| Color | Black (BK) |
| Quantity Per | bag |
| Short Description | Cable Tie with Button Mount, 0.35" Hole Dia, 0.12" Max Panel, 0.07" Max Tie Width, PA66HIRHSUV, Black, 1000/pkg |
| Global Part Name | T50RPBM9SET-PA66HIRHSUV-BK |
| Contents of pkg/kit | T50R Cable Tie, Button Mount |
HellermannTyton - 156-02513 - Product Dimensions
| Minimum Tensile Strength (Imperial) | 50 |
|---|---|
| Minimum Tensile Strength (Metric) | 225 |
| Length L (Imperial) | 8 |
| Length L (Metric) | 203.2 |
| Identification Plate Position | none |
| Releasable Closure | No |
| Tie Closure | plastic pawl |
| Width W (Imperial) | 0.67 |
| Width W (Metric) | 17 |
| Bundle Diameter Min (Imperial) | 0.16 |
| Bundle Diameter Min (Metric) | 4 |
| Bundle Diameter Max (Imperial) | 1.97 |
| Bundle Diameter Max (Metric) | 50 |
| Height H (Imperial) | 0.53 |
| Height H (Metric) | 13.4 |
| Panel Thickness Max (Imperial) | 0.12 |
| Panel Thickness Max (Metric) | 3 |
| Mounting Hole Diameter D (Imperial) | 0.35 x 0.47 ", 0.35 x 0.55 |
| Mounting Hole Diameter D (Metric) | 9.0 x 12.0 mm9.0 x 14.0 mm |
HellermannTyton - 156-02513 - Logistic & Packaging
| Package Quantity (Imperial) | 1000 |
|---|---|
| Package Quantity (Metric) | 1000 |
| Customs Number | 3.93E+09 |
HellermannTyton - 156-02513 - Materials & Specifications
| Material | Polyamide 6.6 high impact modified, heat and UV stabilized (PA66HIRHSUV) |
|---|---|
| Material Shortcut | PA66HIRHSUV |
| Flammability | UL 94 HB |
| UV Resistant (Yes/No) | Yes |
| Operating Temperature | -40°F to +221°F (-40°C to +105°C) |
| Reach Compliant (Article 33) | Yes |
| ROHS Compliant | Yes |
| UL Recognized (US) | Yes |
| UL Listed (US and Canada) | Yes |
| UL Recognized (US and Canada) | Yes |
| UL Listed (US) | Yes |
