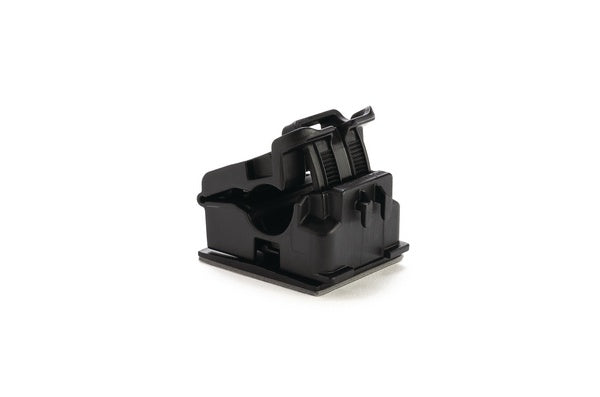

HellermannTyton 156-02624 | In-Line Ratchet Clamp, 0.24" - 0.54" Bundle Dia., MB5A, PA66HIRHSUV, Black, 250/CTN
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Description
Description
The In-line Ratchet P-Clamp family offers versatility when managing wires, cables and hoses. Built-in attachments include round and oval fir trees and adhesive mounts, so no additional hardware is needed for securing to a hole or panel. The robust desi gn and durable materials make it ideal for heavy duty applications, both indoors and out. The adjustable clamp can be closed by hand to the desired diameter. The release feature allows easy and nondestructive removal of cables simply by using a flat-he ad screwdriver. In this way, the clamp can be reused or serviced without removing it from the mounting surface. The clamp is offered in four sizes to accommodate bundles from 0.25" to 2" in diameter.
The Inline Ratchet P-Clamp family offers versatility when managing wires, cables and hoses. Built-in attachments include round and oval fir trees and adhesive mounts, so no additional hardware is needed for securing to a hole or panel. The robust design and durable materials make it ideal for heavy duty applications, both indoors and out. The adjustable clamp can be closed by hand to the desired diameter. The release feature allows easy and nondestructive removal of cables simply by using a flat-head screwdriver. In this way, the clamp can be reused or serviced without removing it from the mounting surface.
About HellermannTyton: HellermannTyton is a global manufacturer of cable management and identification solutions for automotive, solar, electrical, construction, industrial automation, broadband and other OEM markets. The company's integrated approach to product design, sustainability, production, quality assurance and delivery is optimized to benefit local and global customers. HellermannTyton operates in 39 countries, with North American headquarters in Milwaukee, Wisconsin.
HellermannTyton - 156-02624 - Features
- One-piece ratchet closure allows for easy installation during pre- or final assembly.
- Easy release feature simplifies quick adjustments and maintenance.
- Impact modified, heat and UV stabilized PA66 provides long-term durability, indoors and out.
- 3M VH adhesive on base creates an incredible bond with mounting surface.
- One-piece ratchet closure allows for easy installation during pre- or final assembly
- Easy release feature simplifies quick adjustments and maintenance
- Impact modified, heat and UV stabilized PA66 provides long-term durability, indoors and out
- High-performing oval fir trees ensure anti-rotational routing in existing or stamped oval or rectangular holes with no additional hardware required
Specifications
Specifications
HellermannTyton - 156-02624 - Product Categories
- OEM
- Cable Management and Electrical
- Cable Management
- Inline Ratchet Clamps
HellermannTyton - 156-02624 - Specifications
| Brand Name | HellermannTyton |
|---|---|
| Approvals | None |
| Category | Clamps And Vices |
| Color | Black |
| Quality Standard | Commercial Release |
| Rohs Compliant | Not Declared |
| Type | Cable Clamp |
| UNSPSC Code | 39121700 |
HellermannTyton - 156-02624 - Base Data
| Article Number | 156-02624 |
|---|---|
| Type | IRCAMB5A |
| Color | Black (BK) |
| Quantity Per | bag |
| Short Description | Adhesive Mount Ratchet Clamp, 0.24 - 0.54" Bundle Dia, MB5A, PA66HIRHSUV, Black, 250/ctn |
| Global Part Name | IRCAMB5A-PA66HIRHSUV-BK |
HellermannTyton - 156-02624 - Product Dimensions
| Minimum Tensile Strength (Imperial) | 100 |
|---|---|
| Minimum Tensile Strength (Metric) | 445 |

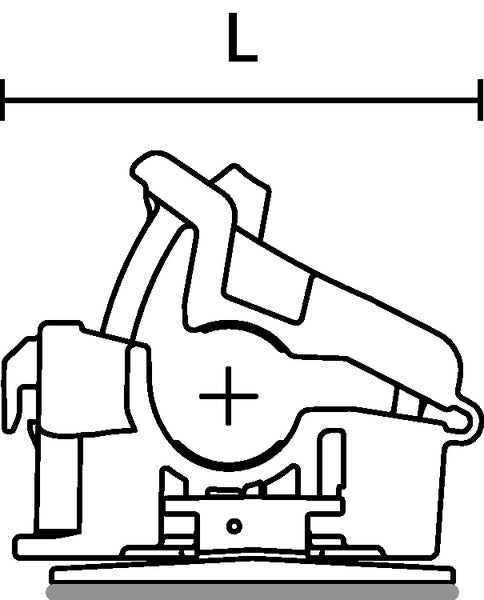

| Length L (Imperial) | 1.37 |
| Length L (Metric) | 34.8 |
| Fixation Method | Adhesive |
| Width W (Imperial) | 1.37 |
| Width W (Metric) | 34.9 |
| Bundle Diameter Min (Imperial) | 0.24 |
| Bundle Diameter Min (Metric) | 6.1 |
| Bundle Diameter Max (Imperial) | 0.54 |
| Bundle Diameter Max (Metric) | 13.72 |
HellermannTyton - 156-02624 - Logistic & Packaging
| Package Quantity (Imperial) | 250 |
|---|---|
| Package Quantity (Metric) | 250 |
| Customs Number | 3.93E+09 |
HellermannTyton - 156-02624 - Materials & Specifications
| Material | Polyamide 6.6 high impact modified, heat and UV stabilized (PA66HIRHSUV) |
|---|---|
| Material Shortcut | PA66HIRHSUV |
| Adhesive | Acrylic |
| Flammability | UL 94 HB |
| UV Resistant (Yes/No) | Yes |
| Operating Temperature | -40°F to +221°F (-40°C to +105°C) |
| Reach Compliant (Article 33) | No |
| ROHS Compliant | Yes |
