HellermannTyton 156-03000 | The Quick2Clamp offers ultra-fast insta...
Description
Description

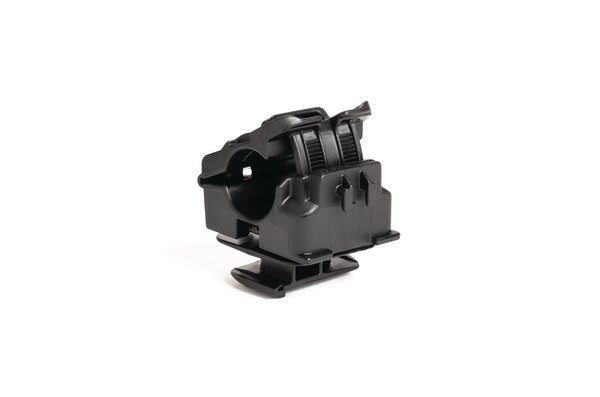

Quick2Clamp, 0.50" - 0.77" Bundle Dia, 1-5/8" Strut Attachment, PA66HIRHSUV, Black, 200/box

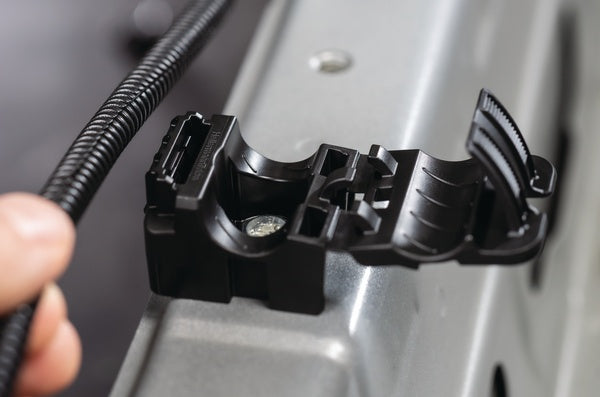

The Quick2Clamp offers ultra-fast installation and versatility for managing conduit, tubing and cables. The built-in strut mount attaches with a simple twist. The one-piece design makes it simple to install. The robust, adjustable clamp closes by hand to the desired diameter. A release feature allows easy and nondestructive maintenance simply by using a flat-head screwdriver. In this way, the clamp can be reused or serviced without removing it from the strut.
About HellermannTyton: HellermannTyton is a global manufacturer of cable management and identification solutions for automotive, solar, electrical, construction, industrial automation, broadband and other OEM markets. The company's integrated approach to product design, sustainability, production, quality assurance and delivery is optimized to benefit local and global customers. HellermannTyton operates in 39 countries, with North American headquarters in Milwaukee, Wisconsin.
HellermannTyton - 156-03000 - Features
- Clamp and mount combination means no extra hardware is needed, for time-saving, toolless, one-handed installation.
- Three size ranges handle diameters from 0.5" to 2", reducing part inventory.
- Clamp saddle provides additional attachment option using a cable tie.
- Impact modified, heat and UV stabilized PA66 provides long-term durability, indoors and out.
- Clamp and mount combination means no extra hardware is needed, for time-saving, toolless, one-handed installation.
- Three size ranges handle diameters from 0.5" to 2", reducing part inventory.
- Clamp saddle provides additional attachment option using a cable tie.
- Impact modified, heat and UV stabilized PA66 provides long-term durability, indoors and out.
Specifications
Specifications
HellermannTyton - 156-03000 - Product Categories
- Hardware
- Cable Management
- J-Hooks
- Inline Ratchet Clamps
HellermannTyton - 156-03000 - Specifications
| Brand Name | HellermannTyton |
|---|---|
| Type | Clamps |
| UNSPSC Code | 30101800 |
HellermannTyton - 156-03000 - Base Data
| Article Number | 156-03000 |
|---|---|
| Type | IRCBSTRUT |
| Color | Black (BK) |
| Quantity Per | carton |
| Short Description | Quick2Clamp, 0.50" - 0.77" Bundle Dia, 1-5/8" Strut Attachment, PA66HIRHSUV, Black, 200/box |
| Global Part Name | IRCBSTRUT-PA66HIRHSUV-BK |
HellermannTyton - 156-03000 - Product Dimensions
| Length L (Imperial) | 3.15 |
|---|---|
| Length L (Metric) | 79.9 |
| Fixation Method | 1-5/8 " Strut Attachment |
| Variant | Load Rating: 17 lbs, Safety Factor: 3Pull Force Rating: 50 lbs |
| Width W (Imperial) | 1.37 |
| Width W (Metric) | 34.81 |
| Bundle Diameter Min (Imperial) | 0.5 |
| Bundle Diameter Min (Metric) | 12.7 |
| Bundle Diameter Max (Imperial) | 0.77 |
| Bundle Diameter Max (Metric) | 19.5 |
| Height H (Imperial) | 1.41 |
| Height H (Metric) | 35.8 |
HellermannTyton - 156-03000 - Logistic & Packaging
| Package Quantity (Imperial) | 200 |
|---|---|
| Package Quantity (Metric) | 200 |
| Customs Number | 3.93E+09 |
HellermannTyton - 156-03000 - Materials & Specifications
| Material | Polyamide 6.6 high impact modified, heat and UV stabilized (PA66HIRHSUV) |
|---|---|
| Material Shortcut | PA66HIRHSUV |
| UV Resistant (Yes/No) | Yes |
| Operating Temperature | -40°F to +221°F (-40°C to +105°C) |
| Reach Compliant (Article 33) | No |
| ROHS Compliant | Yes |
| Certification/Specification | UL | UL2239 Conduit & Cable Hanger |
| UL Listed (US) | Yes |
