HellermannTyton 156-04243 | The MOC to Swivel Tie is a rotatable routing clip coupled to a cable tie that keeps two routings secured and separated.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
HellermannTyton 156-04243 | The MOC to Swivel Tie is a rotatable ro...
Description
Description

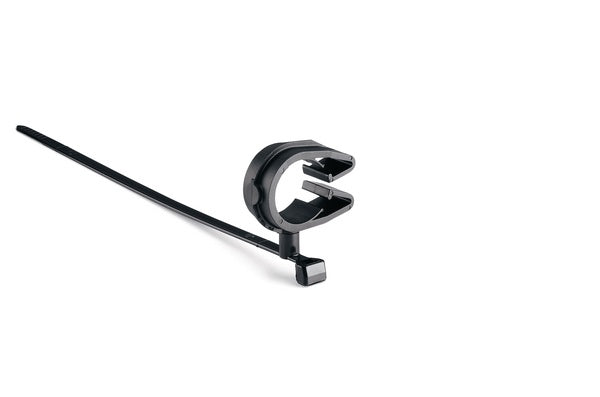

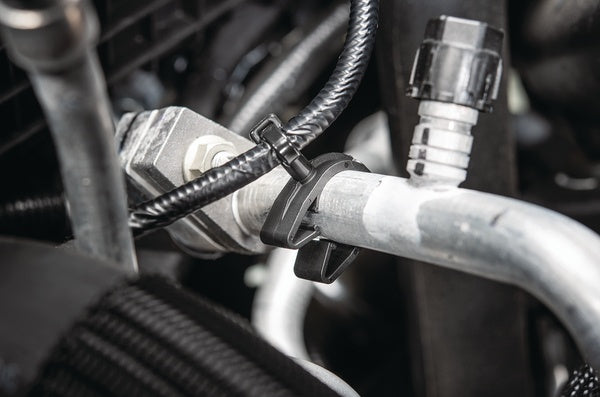

The MOC to Swivel Tie is a rotatable routing clip coupled to a cable tie that keeps two routings secured and separated. Tie provides additional security against axial slip by clamping around solid tube, pipe or harness. The swivel coupler allows the tw o routings to rotate independently of each other.
The MOC to Swivel Tie is a rotatable routing clip coupled to a cable tie that keeps two routings secured and separated. Tie provides additional security against axial slip by clamping around solid tube, pipe or harness. The swivel coupler allows the two routings to rotate independently of each other.
About HellermannTyton: HellermannTyton is a global manufacturer of cable management and identification solutions for automotive, solar, electrical, construction, industrial automation, broadband and other OEM markets. The company's integrated approach to product design, sustainability, production, quality assurance and delivery is optimized to benefit local and global customers. HellermannTyton operates in 39 countries, with North American headquarters in Milwaukee, Wisconsin.
HellermannTyton - 156-04243 - Features
- Patented retention design on clip features inverted retaining legs, narrow opening and circular retainer to prevent inadvertent disengagement.
- Controlled flex and angled entry promote easy installation.
- Independent rotation allows for adjustable routing orientation.
- Cable tie accommodates wide range of secondary bundle sizes.
- Self-wrapping feature allows easy installation and future access to wire and cables.
- Unique blend and construction using monofilament and mutifilament strands provide flexibility, high coverage and abrasion resistance.
- Extra overlapping design keeps wires contained even in tight bend conditions.
Specifications
Specifications
HellermannTyton - 156-04243 - Product Categories
- Hardware
- Tools and Supplies
- Supplies
- Bundling & Securing
- Self-Affixing Cable Ties
- MOC Cable Ties
HellermannTyton - 156-04243 - Specifications
| Brand Name | HellermannTyton |
|---|---|
| Type | Cable Tie - C/W Christmas Tree Mounting |
| UNSPSC Code | 39121703 |
HellermannTyton - 156-04243 - Base Data
| Article Number | 156-04243 |
|---|---|
| Type | T50SMVCMOC19M |
| Color | Black (BK) |
| Quantity Per | bag |
| Short Description | MOC Clip, 19 mm, Assembled to T50SMVC Swivel Tie, PA66HIRHSUV, Black, 100/bg |
| Global Part Name | T50SMVCMOC19M-PA66HIRHSUV-BK |
HellermannTyton - 156-04243 - Product Dimensions
| Minimum Tensile Strength (Imperial) | 50 |
|---|---|
| Minimum Tensile Strength (Metric) | 225 |
| Length L (Imperial) | 1.29 |
| Length L (Metric) | 32.7 |
| Fixation Method | Omega Clips |
| Identification Plate Position | none |
| Bundle Diameter Min (Imperial) | 0.67 |
| Bundle Diameter Min (Metric) | 17 |
| Bundle Diameter Max (Imperial) | 0.86 |
| Bundle Diameter Max (Metric) | 21.8 |
| Height H (Imperial) | 1.76 |
| Height H (Metric) | 44.8 |
| Depth D (Imperial) | 0.47 |
| Depth D (Metric) | 12 |
HellermannTyton - 156-04243 - Logistic & Packaging
| Package Quantity (Imperial) | 100 |
|---|---|
| Package Quantity (Metric) | 100 |
| Customs Number | 3.93E+09 |
HellermannTyton - 156-04243 - Materials & Specifications
| Material | Polyamide 6.6 high impact modified, heat and UV stabilized (PA66HIRHSUV) |
|---|---|
| Material Shortcut | PA66HIRHSUV |
| Flammability | UL 94 HB |
| Halogen Free | Yes |
| UV Resistant (Yes/No) | Yes |
| Operating Temperature | -40°F to +230°F (-40°C to +110°C) |
| Reach Compliant (Article 33) | No |
| ROHS Compliant | Yes |
HellermannTyton - 156-04243 - Videos
| HellermannTyton 156-04243 Video URL | Click to View |
|---|
