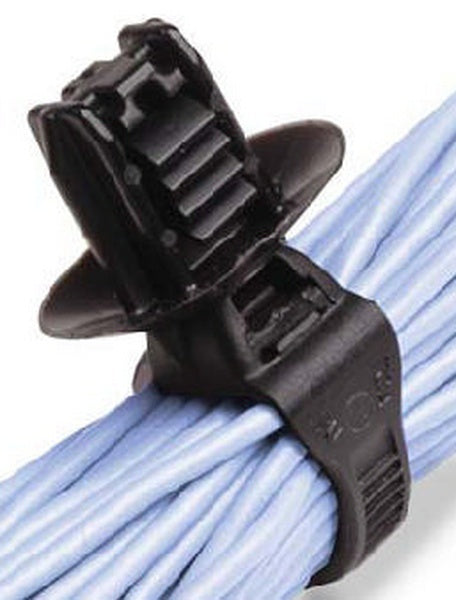

HellermannTyton 157-00054 | 1-Pc Cable Tie/Fir Tree Mount With Disc, 8.5"L, 7–12 Mm Mounting Hole, Pa66Hs, Black, 500/Pkg
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
HellermannTyton 157-00054 | 1-Pc Cable Tie/Fir Tree Mount With Disc...
Description
Description

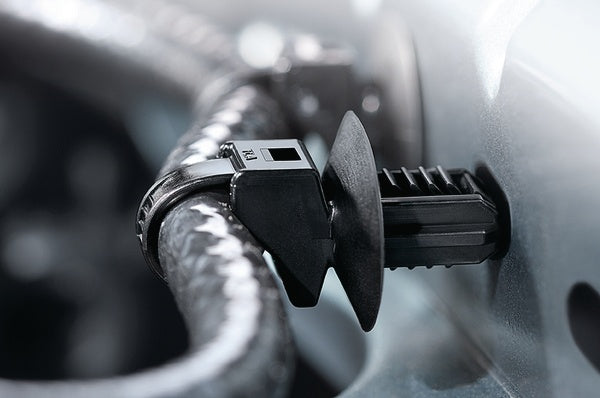

Fir Tree Mounts offer a simple and easy-to-use method of bundling and mounting cables. The design of the fir tree ensures a secure and robust fit into panels with a 7.0-12.0mm holes and a thickness between 0.6 mm-4.0 mm. The ’disc’ on the top of the fi r tree covers the hole and minimizes the ingress of water and dirt. This can be applied by hand and tensioned with one of HellermannTyton’s manual or pneumatic hand tools.
Fir Tree Mounts offer a simple and easy-to-use method of bundling and mounting cables. The design of the fir tree ensures a secure and robust fit into panels with a 7.0–12.0mm holes and a thickness between 0.6 mm–4.0 mm. The 'disc' on the top of the fir tree covers the hole and minimizes the ingress of water and dirt. This can be applied by hand and tensioned with one of HellermannTyton's manual or pneumatic hand tools.
About HellermannTyton: HellermannTyton is a global manufacturer of cable management and identification solutions for automotive, solar, electrical, construction, industrial automation, broadband and other OEM markets. The company's integrated approach to product design, sustainability, production, quality assurance and delivery is optimized to benefit local and global customers. HellermannTyton operates in 39 countries, with North American headquarters in Milwaukee, Wisconsin.
HellermannTyton - 157-00054 - Features
- Outside serrations on the tie strap minimize potential damage to the bundle.
- Low profile tie head design allows the tie to follow the contour of the bundle and center the bundle directly over the mounting hole.
- Tapered and bent tie strap tail makes it easier to locate and install the strap during the installation process.
- Grips on both sides of the tie strap tail allow for a stronger hold when tensioning the strap.
- Friction tab inside the fir tree allows the tie to sit in mount without falling out prior to installation.
- Fir tree provides low insertion effort yet demonstrates high extraction resistance.
- Disc feature prevents rattling in high-vibration applications and protects against debris ingress.
Specifications
Specifications
HellermannTyton - 157-00054 - Product Categories
- Hardware
- Tools and Supplies
- Supplies
- Bundling & Securing
- Self-Affixing Cable Ties
- Fir Tree Mount Cable Ties
HellermannTyton - 157-00054 - Specifications
| Brand Name | HellermannTyton |
|---|---|
| Type | Cables Ties And Accessories |
| UNSPSC Code | 39121703 |
HellermannTyton - 157-00054 - Base Data
| Article Number | 157-00054 |
|---|---|
| Type | T50ROSFT7X12U |
| Color | Black (BK) |
| Quantity Per | bag |
| Short Description | 1-Pc Cable Tie/Fir Tree Mount with Disc, 8.5"L, 7–12 mm Mounting Hole, PA66HS, Black, 500/pkg |
| Global Part Name | T50ROSFT7X12U-PA66HS-BK |
HellermannTyton - 157-00054 - Product Dimensions
| Minimum Tensile Strength (Imperial) | 50 |
|---|---|
| Minimum Tensile Strength (Metric) | 225 |

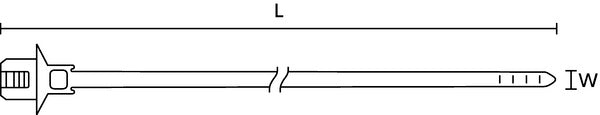

| Length L (Imperial) | 8.5 |
| Length L (Metric) | 215.9 |
| Fixation Method | Fir Tree for oval holes |
| Identification Plate Position | none |
| Releasable Closure | No |
| Tie Closure | plastic pawl |
| Variant | Outside Serrated |
| Width W (Imperial) | 0.2 |
| Width W (Metric) | 5.08 |
| Bundle Diameter Min (Imperial) | 0.08 |
| Bundle Diameter Min (Metric) | 2 |
| Bundle Diameter Max (Imperial) | 1.97 |
| Bundle Diameter Max (Metric) | 50 |
| Thickness T (Imperial) | 0.06 |
| Thickness T (Metric) | 1.5 |
| Height H (Imperial) | 0.41 |
| Height H (Metric) | 10.5 |
| Panel Thickness Min (Imperial) | 0.023 |
| Panel Thickness Max (Imperial) | 0.16 |
| Panel Thickness Min (Metric) | 0.6 |
| Panel Thickness Max (Metric) | 4 |
| Mounting Hole Diameter D (Imperial) | 0.28 x 0.47 |
| Mounting Hole Diameter D (Metric) | 7.0 x 12.0 mm |
| Mounting Hole Diameter D Min (Imperial) | 0.28 |
| Mounting Hole Diameter D Max (Imperial) | 0.47 |
| Mounting Hole Diameter D Max (Metric) | 12 |
| Disc Diameter (Metric) | 15.2 x 20.2 |
| Disc Diameter (Imperial) | 0.60 x 0.80 |
HellermannTyton - 157-00054 - Logistic & Packaging
| Package Quantity (Imperial) | 500 |
|---|---|
| Package Quantity (Metric) | 500 |
| Customs Number | 3.93E+09 |
HellermannTyton - 157-00054 - Materials & Specifications
| Material | Polyamide 6.6 heat stabilized (PA66HS) |
|---|---|
| Material Shortcut | PA66HS |
| Material Cable Tie | Polyamide 6.6 heat stabilized (PA66HS) |
| Flammability | UL 94 V-2 |
| UV Resistant (Yes/No) | No |
| Operating Temperature | -40°F to +257°F (-40°C to +125°C) |
| Reach Compliant (Article 33) | Yes |
| ROHS Compliant | Yes |
