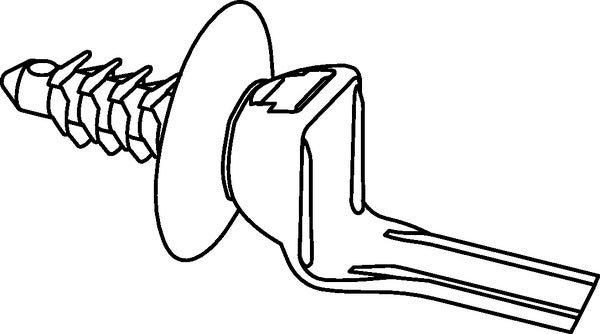

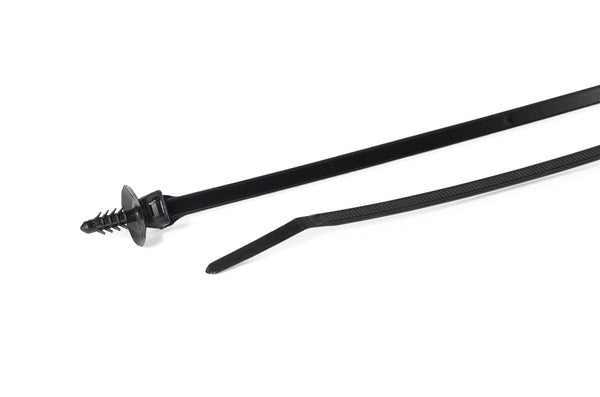

HellermannTyton 157-00112 | 1-Piece Cable Tie/Fir Tree Mount with Disc, 8"L, 0.24" - 0.27" Mounting Hole, PA66HIRHSUV, Black, 500/bag
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
HellermannTyton 157-00112 | 1-Piece Cable Tie/Fir Tree Mount with D...
Description
Description

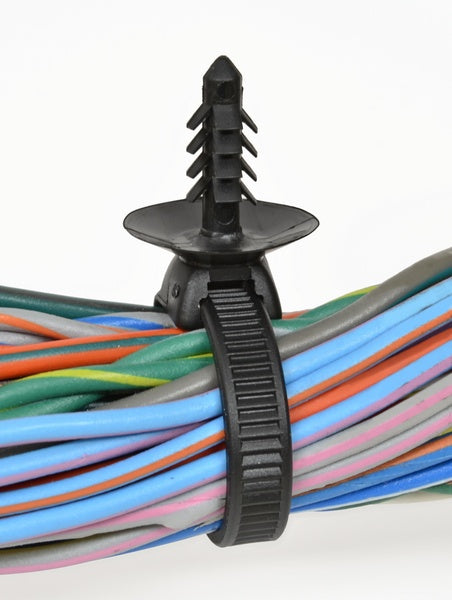

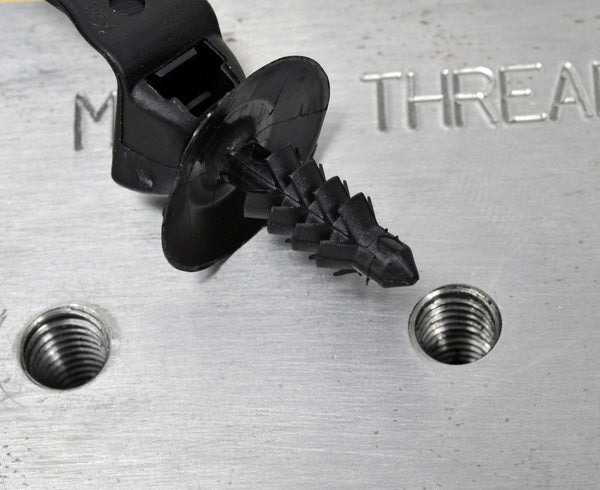

HellermannTyton Blind Hole Mount Cable Tie for threaded holes offers an easy-to-use method for bundling and affixing cables. The one-piece mount offers a low insertion force and aggressively resists pull off, for secure attachment to panel holes with t hicknesses from 0.02" to 0.28" or threaded blind holes. The disc on top of the mount covers the hole and minimizes ingress of water and debris.
HellermannTyton Blind Hole Mount Cable Tie for threaded holes offers an easy-to-use method for bundling and affixing cables. The one-piece mount offers a low insertion force and aggressively resists pull off, for secure attachment to panel holes with thicknesses from 0.02" to 0.28" or threaded blind holes. The disc on top of the mount covers the hole and minimizes ingress of water and debris.
About HellermannTyton: HellermannTyton is a global manufacturer of cable management and identification solutions for automotive, solar, electrical, construction, industrial automation, broadband and other OEM markets. The company's integrated approach to product design, sustainability, production, quality assurance and delivery is optimized to benefit local and global customers. HellermannTyton operates in 39 countries, with North American headquarters in Milwaukee, Wisconsin.
HellermannTyton - 157-00112 - Features
- One-piece design allows installers to mount and bundle wire or cables single-handedly.
- Fastener delivers high extraction force for reliable performance, yet it’s easy to install.
- Can be unscrewed or extracted from threaded holes for easy removal and re-usability.
Specifications
Specifications
HellermannTyton - 157-00112 - Product Categories
- Hardware
- Tools and Supplies
- Supplies
- Bundling & Securing
- Self-Affixing Cable Ties
- Fir Tree Mount Cable Ties
HellermannTyton - 157-00112 - Specifications
| Brand Name | HellermannTyton |
|---|---|
| Size | 8" |
| Type | Cables Ties And Accessories |
| UNSPSC Code | 39121703 |
HellermannTyton - 157-00112 - Base Data
| Article Number | 157-00112 |
|---|---|
| Type | T50ROSFTQM6 |
| Color | Black (BK) |
| Quantity Per | bag |
| Short Description | 1-Pc Cable Tie/Fir Tree Mount with Disc, 8"L, M6 Threaded Hole, PA66HIRHSUV, Black, 500/bg |
| Global Part Name | T50ROSFTQM6-PA66HIRHSUV-BK |
HellermannTyton - 157-00112 - Product Dimensions
| Minimum Tensile Strength (Imperial) | 50 |
|---|---|
| Minimum Tensile Strength (Metric) | 222.4 |
| Length L (Imperial) | 8 |
| Length L (Metric) | 203.2 |
| Fixation Method | Fir tree for round holes |
| Identification Plate Position | none |
| Releasable Closure | No |
| Tie Closure | plastic pawl |
| Width W (Imperial) | 0.2 |
| Width W (Metric) | 5.08 |
| Bundle Diameter Min (Imperial) | 0.08 |
| Bundle Diameter Min (Metric) | 2 |
| Bundle Diameter Max (Imperial) | 1.97 |
| Bundle Diameter Max (Metric) | 50 |
| Thickness T (Imperial) | 0.06 |
| Thickness T (Metric) | 1.5 |
| Height H (Imperial) | 0.54 |
| Height H (Metric) | 13.83 |
| Diameter D (Imperial) | 0.25 |
| Diameter D (Metric) | 6 |
| Panel Thickness Min (Imperial) | 0.13 |
| Panel Thickness Max (Imperial) | 0.28 |
| Panel Thickness Min (Metric) | 3.25 |
| Panel Thickness Max (Metric) | 7 |
| Mounting Hole Diameter D (Metric) | M6 |
| Disc Diameter (Metric) | 16 |
| Disc Diameter (Imperial) | 0.31 |
HellermannTyton - 157-00112 - Logistic & Packaging
| Package Quantity (Imperial) | 500 |
|---|---|
| Package Quantity (Metric) | 500 |
| Customs Number | 3.93E+09 |
HellermannTyton - 157-00112 - Materials & Specifications
| Material | Polyamide 6.6 high impact modified, heat and UV stabilized (PA66HIRHSUV) |
|---|---|
| Material Shortcut | PA66HIRHSUV |
| Flammability | UL 94 HB |
| UV Resistant (Yes/No) | Yes |
| Operating Temperature | -40°F to +221°F (-40°C to +105°C) |
| Reach Compliant (Article 33) | Yes |
| ROHS Compliant | Yes |
