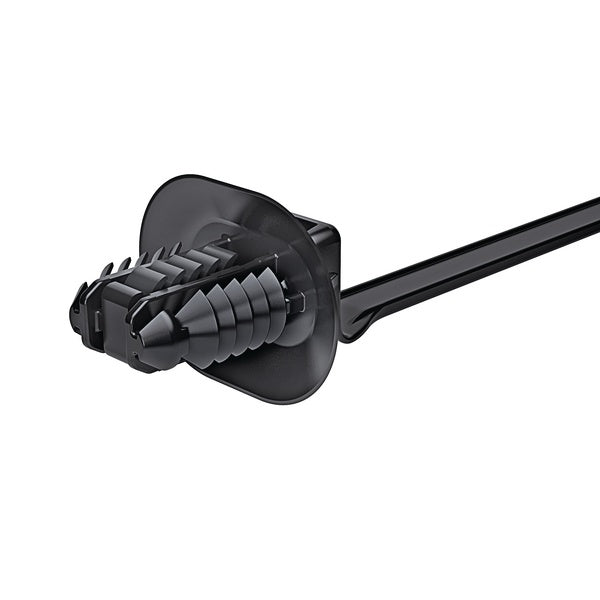

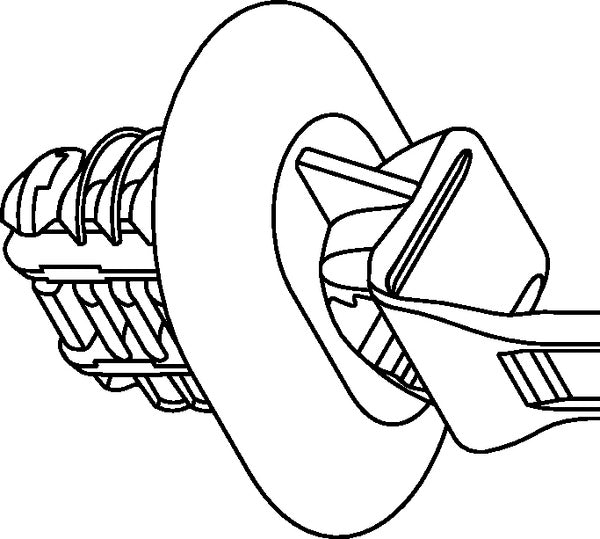

HellermannTyton 157-00154 | 1-Piece Cable Tie/Fir Tree Mount with Disc, 6.6"L, 6.2 - 13.0 mm, PA66HS, Grey, 1000/pkg
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
HellermannTyton 157-00154 | 1-Piece Cable Tie/Fir Tree Mount with D...
Description
Description

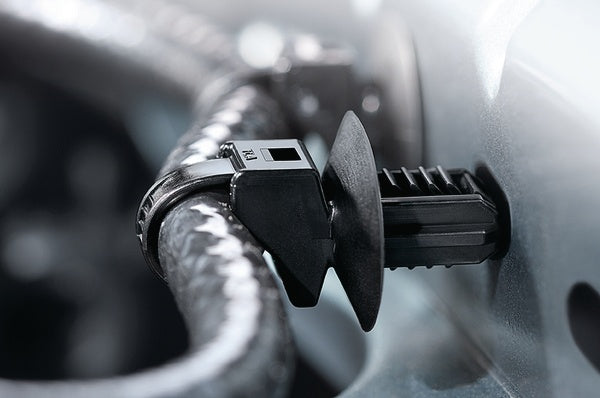

One-piece cable tie and mount offers a simple bundling and mounting solution. The innovative design of this fir tree establishes a 360-degree interface with the panel hole, ensuring a more secure fit. The oval shape won’t rotate once inserted, ensuring proper routing of wires and hoses. The disc feature prevents rattling in high-vibration applications and protects against debris ingress.
One-piece cable tie and mount offers a simple bundling and mounting solution. The innovative design of this fir tree establishes a 360-degree interface with the panel hole, ensuring a more secure fit. The oval shape won’t rotate once inserted, ensuring proper routing of wires and hoses. The disc feature prevents rattling in high-vibration applications and protects against debris ingress.
About HellermannTyton: HellermannTyton is a global manufacturer of cable management and identification solutions for automotive, solar, electrical, construction, industrial automation, broadband and other OEM markets. The company's integrated approach to product design, sustainability, production, quality assurance and delivery is optimized to benefit local and global customers. HellermannTyton operates in 39 countries, with North American headquarters in Milwaukee, Wisconsin.
HellermannTyton - 157-00154 - Features
- All-in-one bundling and fastening solution reduces costs and assembly time.
- Anti-rotational oval fastener forces bundle to travel in intended direction.
- High-spec materials and superior design deliver excellent performance and value.
- Made with UV-stable inks and materials for durability and weather resistance.
- Reflective properties to meet applicable NEC code requirements for reflective identification.
- Supplied with an aggressive adhesive to ensure long life.
- Meets NEC & IFC standards for printed text, character height, color and outdoor UV stability to pass inspections.
Specifications
Specifications
HellermannTyton - 157-00154 - Product Categories
- Hardware
- Tools and Supplies
- Supplies
- Bundling & Securing
- Self-Affixing Cable Ties
- Fir Tree Mount Cable Ties
HellermannTyton - 157-00154 - Specifications
| Brand Name | HellermannTyton |
|---|---|
| Cable Tie Diameter | 6" |
| Type | Cables Ties And Accessories |
| UNSPSC Code | 39121703 |
HellermannTyton - 157-00154 - Base Data
| Article Number | 157-00154 |
|---|---|
| Type | T50SOSFTOVALU |
| Color | Gray (GY) |
| Quantity Per | box |
| Short Description | 1-Pc Cable Tie/Fir Tree Mount with Disc, 6.6"L, 6.2 - 13.0 mm, PA66HS, Gray, 1000/pkg |
| Global Part Name | T50SOSFTOVALU-PA66HS-GY |

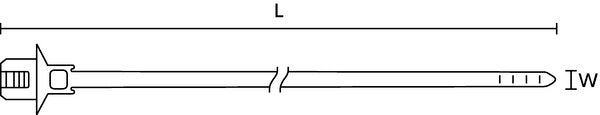

HellermannTyton - 157-00154 - Product Dimensions
| Minimum Tensile Strength (Imperial) | 50 |
|---|---|
| Minimum Tensile Strength (Metric) | 222.4 |
| Length L (Imperial) | 6.6 |
| Length L (Metric) | 168.2 |
| Fixation Method | Fir Tree for oval holes |
| Identification Plate Position | none |
| Releasable Closure | No |
| Tie Closure | plastic pawl |
| Variant | Outside Serrated |
| Width W (Imperial) | 0.2 |
| Width W (Metric) | 5.1 |
| Bundle Diameter Min (Imperial) | 0.08 |
| Bundle Diameter Min (Metric) | 2 |
| Bundle Diameter Max (Imperial) | 1.38 |
| Bundle Diameter Max (Metric) | 35 |
| Height H (Imperial) | 0.51 |
| Height H (Metric) | 12.85 |
| Panel Thickness Min (Imperial) | 0.023 |
| Panel Thickness Max (Imperial) | 0.27 |
| Panel Thickness Min (Metric) | 0.6 |
| Panel Thickness Max (Metric) | 6.75 |
| Mounting Hole Diameter D (Imperial) | 0.24 x 0.48 "0.25 x 0.50 "0.25 x 0.51 "0.27 x 0.47 |
| Mounting Hole Diameter D (Metric) | 6.5 x 13.0 mm6.2 x 12.2 mm6.5 x 12.5 mm7.0 x 12.0 mm |
| Mounting Hole Diameter D Min (Imperial) | 0.24 |
| Mounting Hole Diameter D Max (Imperial) | 0.51 |
| Mounting Hole Diameter D Max (Metric) | 13 |
| Disc Diameter (Metric) | 17.63 x 23.63 |
| Disc Diameter (Imperial) | 0.69 x 0.93 |
HellermannTyton - 157-00154 - Logistic & Packaging
| Package Quantity (Imperial) | 1000 |
|---|---|
| Package Quantity (Metric) | 1000 |
| Customs Number | 3.93E+09 |
HellermannTyton - 157-00154 - Materials & Specifications
| Material | Polyamide 6.6 heat stabilized (PA66HS) |
|---|---|
| Material Shortcut | PA66HS |
| Material Cable Tie | Polyamide 6.6 heat stabilized (PA66HS) |
| Flammability | UL 94 V-2 |
| UV Resistant (Yes/No) | No |
| Operating Temperature | -40°F to +257°F (-40°C to +125°C) |
| Reach Compliant (Article 33) | Yes |
| ROHS Compliant | Yes |
