HellermannTyton 157-00197 | 1-Piece Cable Tie/Offset Fir Tree with Disc, 25 mm, FT6, 8" Tie, 50lb Tensile Strength, PA66HIRHS, Black, 500/pkg
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
HellermannTyton 157-00197 | 1-Piece Cable Tie/Offset Fir Tree with ...
Description
Description

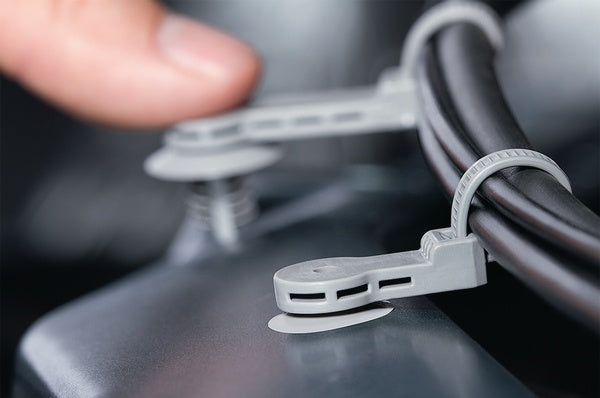

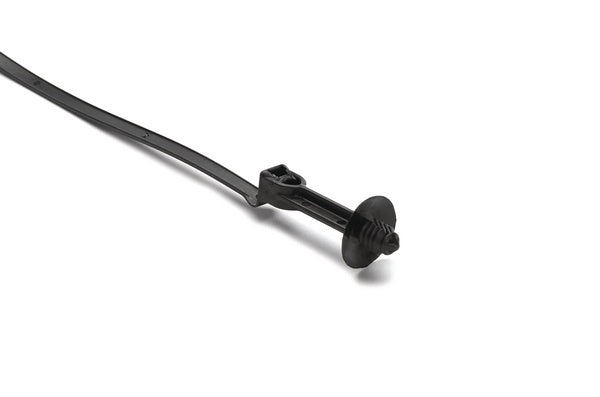

HellermannTyton’s Off-Set Fir Tree Cable Tie and fixing offers a simple and easy to use method of bundling and fixing cables, the design of the fir tree ensures a positive and secure fixing into panels with thicknesses from .2" - .26" or threaded blind holes.
The ’disc’ on the top of the fir tree covers the hole and minimizes the ingress of water and dirt.
HellermannTyton's Off-Set Fir Tree Cable Tie and fixing offers a simple and easy to use method of bundling and fixing cables, the design of the fir tree ensures a positive and secure fixing into panels with thicknesses from .2" - .26" or threaded blind holes.The 'disc' on the top of the fir tree covers the hole and minimizes the ingress of water and dirt.
About HellermannTyton: HellermannTyton is a global manufacturer of cable management and identification solutions for automotive, solar, electrical, construction, industrial automation, broadband and other OEM markets. The company's integrated approach to product design, sustainability, production, quality assurance and delivery is optimized to benefit local and global customers. HellermannTyton operates in 39 countries, with North American headquarters in Milwaukee, Wisconsin.
HellermannTyton - 157-00197 - Features
- One-piece cable tie and fixing offers a simple and easy to use method of bundling and fixing cables, through the design of the fir tree by ensuring positive and secure fixing into panels with thicknesses from 0.6-6.65mm.

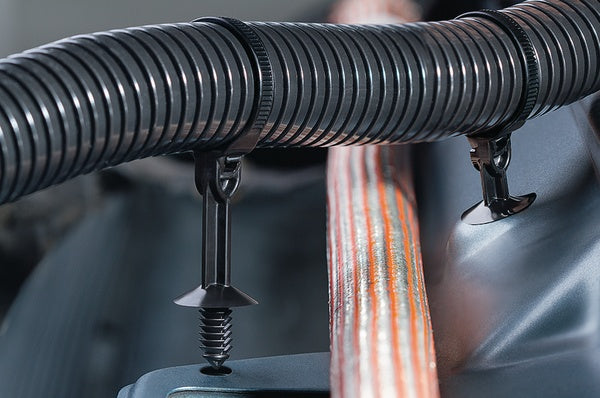

- The offset on the cable tie cre ates an alternate solution when an offset fixing option is required and a tape clip cannot be used due to the design which reduces the potential of the bundle flexing or shifting.
- The ’disc’ on the top of the fir tree covers the hole and minimizes the ingress of water and dirt.
Specifications
Specifications
HellermannTyton - 157-00197 - Product Categories
- Hardware
- Tools and Supplies
- Supplies
- Bundling & Securing
- Self-Affixing Cable Ties
- Fir Tree Mount Cable Ties
HellermannTyton - 157-00197 - Specifications
| Brand Name | HellermannTyton |
|---|---|
| Cable Tie Diameter | 8" |
| Size | 8" |
| Type | Cables Ties And Accessories |
| UNSPSC Code | 39121703 |
HellermannTyton - 157-00197 - Base Data
| Article Number | 157-00197 |
|---|---|
| Type | T50ROSFT6S25SO |
| Color | Black (BK) |
| Quantity Per | carton |
| Short Description | 1-Pc Cable Tie/Offset Fir Tree w/Disc, 25 mm, FT6, 8" Tie, 50lb Tensile, PA66HIRHSUV, Black, 500/pkg |
| Global Part Name | T50ROSFT6S25SO-PA66HIRHSUV-BK |
HellermannTyton - 157-00197 - Product Dimensions
| Minimum Tensile Strength (Imperial) | 50 |
|---|---|
| Minimum Tensile Strength (Metric) | 225 |

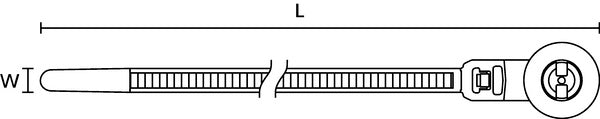

| Length L (Imperial) | 9.5 |
| Length L (Metric) | 242.2 |
| Offset Length (Imperial) | 0.98 |
| Offset Length (Metric) | 25 |
| Fixation Method | Fir Tree |
| Identification Plate Position | none |
| Releasable Closure | No |
| Width W (Imperial) | 0.2 |
| Width W (Metric) | 5.1 |
| Bundle Diameter Min (Imperial) | 0.08 |
| Bundle Diameter Min (Metric) | 2 |
| Bundle Diameter Max (Imperial) | 1.97 |
| Bundle Diameter Max (Metric) | 50 |
| Panel Thickness Min (Imperial) | 0.02 |
| Panel Thickness Max (Imperial) | 0.15 |
| Panel Thickness Min (Metric) | 0.6 |
| Panel Thickness Max (Metric) | 3.75 |
| Mounting Hole Diameter D (Imperial) | 0.24 - 0.27 |
| Mounting Hole Diameter D (Metric) | 6.1 - 6.9 mm |
| Mounting Hole Diameter D Min (Imperial) | 0.24 |
| Mounting Hole Diameter D Max (Imperial) | 0.27 |
| Mounting Hole Diameter D Max (Metric) | 6.9 |
| Disc Diameter (Metric) | 19 |
| Disc Diameter (Imperial) | 0.75 |
HellermannTyton - 157-00197 - Logistic & Packaging
| Package Quantity (Imperial) | 500 |
|---|---|
| Package Quantity (Metric) | 500 |
| Customs Number | 3.93E+09 |
HellermannTyton - 157-00197 - Materials & Specifications
| Material | Polyamide 6.6 high impact modified, heat and UV stabilized (PA66HIRHSUV) |
|---|---|
| Material Shortcut | PA66HIRHSUV |
| UV Resistant (Yes/No) | Yes |
| Operating Temperature | -40°F to +221°F (-40°C to +105°C) |
| Reach Compliant (Article 33) | Yes |
| ROHS Compliant | Yes |
