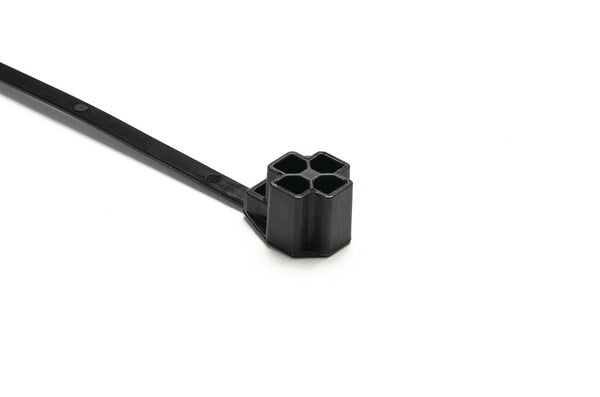

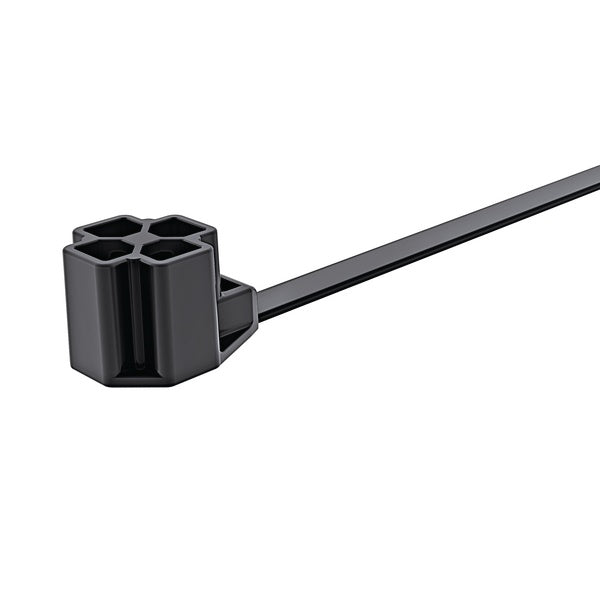

HellermannTyton 157-00290 | M8 Stud Mount Tie, 7.5" Tie, 80lb Tensile Strength, PA66HIRHS, Black, 3000/pkg
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
HellermannTyton 157-00290 | M8 Stud Mount Tie, 7.5" Tie, 80lb ...
Description
Description
Stud Mount Ties offer outstanding stud retention. With their low insertion force and high extraction performance, HellermannTyton mounting ties offer the ideal combination of high-grade materials and superior design to suit the mounting and bundling ne eds of complex applications. Available in standard and high-heat material options.
Stud Mount Ties offer outstanding stud retention. With their low insertion force and high extraction performance, HellermannTyton mounting ties offer the ideal combination of high-grade materials and superior design to suit the mounting and bundling needs of complex applications. Available in standard and high-heat material options.
About HellermannTyton: HellermannTyton is a global manufacturer of cable management and identification solutions for automotive, solar, electrical, construction, industrial automation, broadband and other OEM markets. The company's integrated approach to product design, sustainability, production, quality assurance and delivery is optimized to benefit local and global customers. HellermannTyton operates in 39 countries, with North American headquarters in Milwaukee, Wisconsin.
HellermannTyton - 157-00290 - Features
- Covers top of stud for protection from stud end.
- Four-pawl, three-tooth design delivers outstanding stud retention to keep bundles secure.
- PA46 material option allows use in high-heat applications.
- Made with UV-stable inks and materials for durability and weather resistance.
- Reflective properties to meet applicable NEC code requirements for reflective identification.
- Supplied with an aggressive adhesive to ensure long life.
- Meets NEC & IFC standards for printed text, character height, color and outdoor UV stability to pass inspections.
Specifications
Specifications
HellermannTyton - 157-00290 - Product Categories
- Hardware
- Tools and Supplies
- Supplies
- Bundling & Securing
- Self-Affixing Cable Ties
- Stud Mount Cable Ties
HellermannTyton - 157-00290 - Specifications
| Brand Name | HellermannTyton |
|---|---|
| Type | Cables Ties And Accessories |
| UNSPSC Code | 39121703 |
HellermannTyton - 157-00290 - Base Data
| Article Number | 157-00290 |
|---|---|
| Type | T80ROSSB8U |
| Color | Black (BK) |
| Quantity Per | carton |
| Short Description | M8 Stud Mount Tie, 7.5" Tie, 80lb Tensile Strength, PA66HIRHS, Black, 1500/pkg |
| Global Part Name | T80ROSSB8U-PA66HIRHSUV-BK |
HellermannTyton - 157-00290 - Product Dimensions
| Minimum Tensile Strength (Imperial) | 80 |
|---|---|
| Minimum Tensile Strength (Metric) | 335 |
| Length L (Imperial) | 8.3 |
| Length L (Metric) | 212 |
| Fixation Method | Stud Mount |
| Identification Plate Position | none |
| Releasable Closure | No |
| Tie Closure | plastic pawl |
| Width W (Imperial) | 0.7 |
| Width W (Metric) | 17.75 |
| Bundle Diameter Min (Imperial) | 0.14 |
| Bundle Diameter Min (Metric) | 3.5 |
| Bundle Diameter Max (Imperial) | 1.97 |
| Bundle Diameter Max (Metric) | 50 |
| Cable Ties | 157-00290 |
| Height H (Imperial) | 0.59 |
| Height H (Metric) | 15 |
| Mounting Hole Diameter D (Imperial) | 0.31" x 0.05 |
| Mounting Hole Diameter D (Metric) | M8 x 1.25 |
| Stud Diameter (Metric) | 8.0 mm |
| Stud Diamater (Imperial) | 0.31 |
HellermannTyton - 157-00290 - Logistic & Packaging
| Package Quantity (Imperial) | 1500 |
|---|---|
| Package Quantity (Metric) | 1500 |
| Customs Number | 3.93E+09 |
HellermannTyton - 157-00290 - Materials & Specifications
| Material | Polyamide 6.6 high impact modified, heat and UV stabilized (PA66HIRHSUV) |
|---|---|
| Material Shortcut | PA66HIRHSUV |
| Flammability | UL 94 HB |
| UV Resistant (Yes/No) | Yes |
| Operating Temperature | -40°F to +221°F (-40°C to +105°C) |
| Reach Compliant (Article 33) | Yes |
| ROHS Compliant | Yes |
