HellermannTyton 157-00328 | Offset M8 Stud Mount Tie, 7.5" Tie...
Description
Description

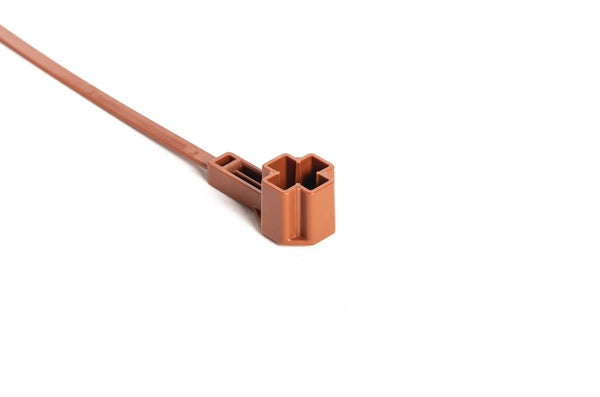

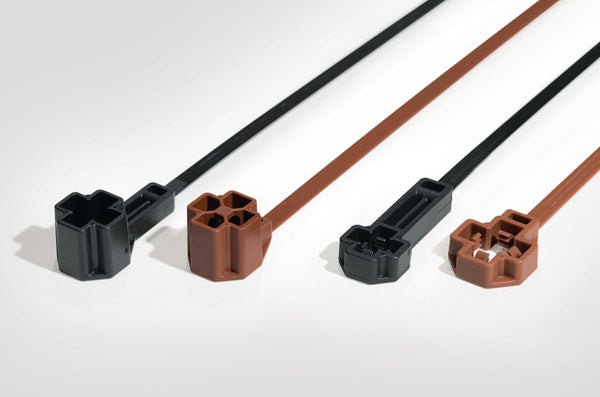

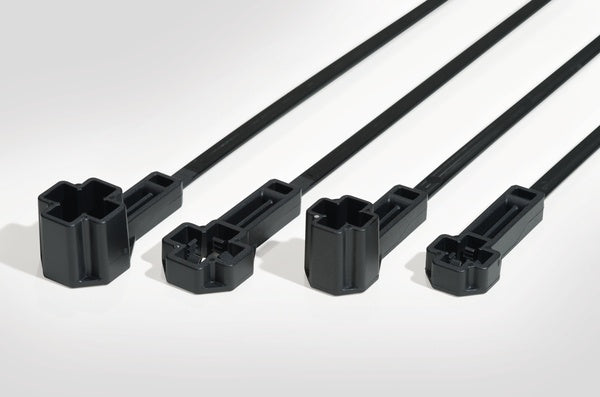

This mount features an offset design, which positions bundles away from obstructions, heat or sources of abrasion. With their low insertion force and high extraction performance, HellermannTyton mounting ties offer the ideal combination of high-grade m aterials and superior design to suit the mounting and bundling needs of complex applications. Available in standard and high-heat material options.
This mount features an offset design, which positions bundles away from obstructions, heat or sources of abrasion. With their low insertion force and high extraction performance, HellermannTyton mounting ties offer the ideal combination of high-grade materials and superior design to suit the mounting and bundling needs of complex applications. Available in standard and high-heat material options.
About HellermannTyton: HellermannTyton is a global manufacturer of cable management and identification solutions for automotive, solar, electrical, construction, industrial automation, broadband and other OEM markets. The company's integrated approach to product design, sustainability, production, quality assurance and delivery is optimized to benefit local and global customers. HellermannTyton operates in 39 countries, with North American headquarters in Milwaukee, Wisconsin.
HellermannTyton - 157-00328 - Features
- Offset design positions bundles away from obstructions, heat or sources of abrasion.
- Four-pawl, three-tooth design delivers outstanding stud retention to keep bundles secure.
- PA46 material option allows use in high-heat applications.
- Release feature allows maintenance or changeouts as needed.
- Polyamide 6.6 cable ties deliver excellent resistance to chemicals and salts.
- Inside serrations provide strong grip on cables and wire bundles.
- Reliable bundle fastening plus low insertion force for ease of use.
Specifications
Specifications
HellermannTyton - 157-00328 - Product Categories
- Hardware
- Tools and Supplies
- Supplies
- Bundling & Securing
- Self-Affixing Cable Ties
- Stud Mount Cable Ties
HellermannTyton - 157-00328 - Specifications
| Brand Name | HellermannTyton |
|---|---|
| Type | Cables Ties And Accessories |
| UNSPSC Code | 39121703 |
HellermannTyton - 157-00328 - Base Data
| Article Number | 157-00328 |
|---|---|
| Type | T50ROSM8SMSO25 |
| Color | Brown (BN) |
| Quantity Per | carton |
| Short Description | Offset M8 Stud Mount Tie, 7.5" Tie, 25.5 mm Offset, 50lb Tensile Strength, PA46, Brown, 1500/pkg |
| Global Part Name | T50ROSM8SMSO25-PA46-BN |
HellermannTyton - 157-00328 - Product Dimensions
| Minimum Tensile Strength (Imperial) | 50 |
|---|---|
| Minimum Tensile Strength (Metric) | 223 |
| Length L (Imperial) | 8.9 |
| Length L (Metric) | 226.14 |
| Offset Length (Imperial) | 1 |
| Offset Length (Metric) | 25.5 |
| Fixation Method | Stud Mount |
| Identification Plate Position | none |
| Releasable Closure | No |
| Tie Closure | plastic pawl |
| Width W (Imperial) | 0.7 |
| Width W (Metric) | 17.75 |
| Bundle Diameter Min (Imperial) | 0.08 |
| Bundle Diameter Min (Metric) | 2 |
| Bundle Diameter Max (Imperial) | 1.97 |
| Bundle Diameter Max (Metric) | 50 |
| Cable Ties | 157-00328 |
| Height H (Imperial) | 0.59 |
| Height H (Metric) | 15 |
| Mounting Hole Diameter D (Imperial) | 0.31" x 0.05 |
| Mounting Hole Diameter D (Metric) | M8 x 1.25 |
| Stud Diameter (Metric) | 8.0 mm |
| Stud Diamater (Imperial) | 0.31 |
HellermannTyton - 157-00328 - Logistic & Packaging
| Package Quantity (Imperial) | 1500 |
|---|---|
| Package Quantity (Metric) | 1500 |
| Customs Number | 3.93E+09 |
HellermannTyton - 157-00328 - Materials & Specifications
| Material | Polyamide 4.6 (PA46) |
|---|---|
| Material Shortcut | PA46 |
| UV Resistant (Yes/No) | No |
| Operating Temperature | -40°F to +266°F (-40°C to +130°C) |
| Reach Compliant (Article 33) | Yes |
| ROHS Compliant | Yes |
