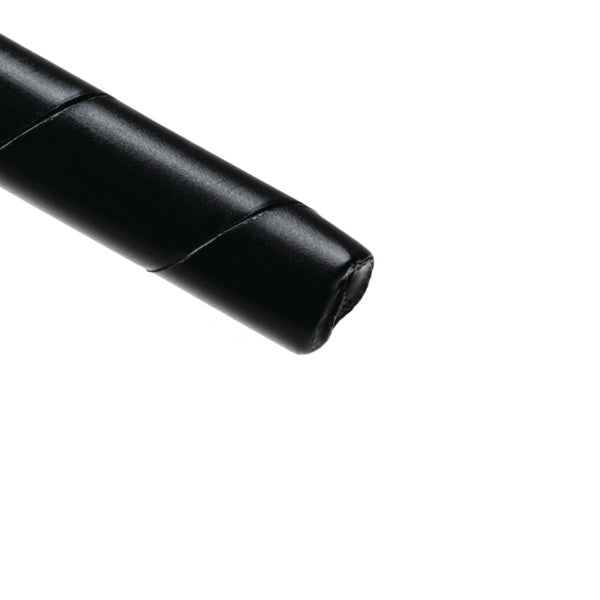

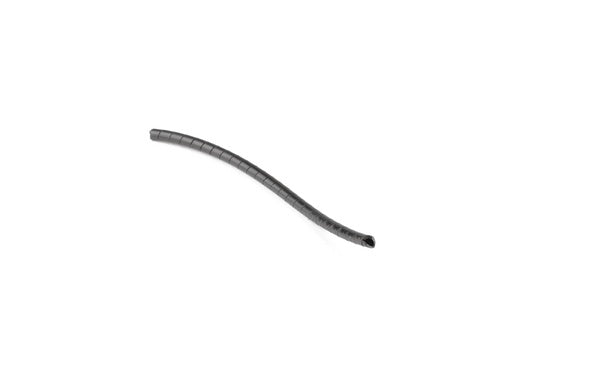

HellermannTyton 161-05090 | Spiralwrap Protective Sheathing, .38" Diameter, PE, Black, 500ft/roll
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Description
Description

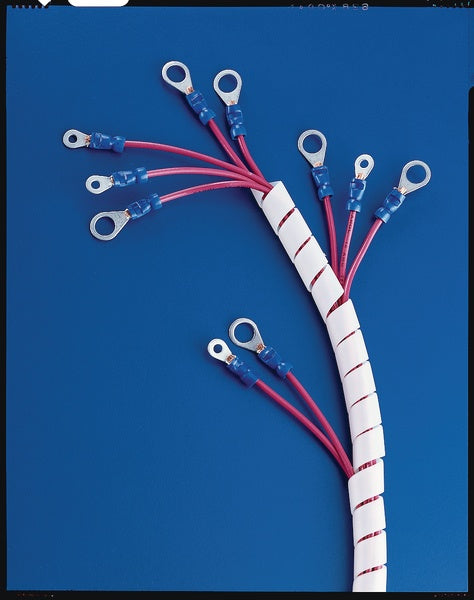

161-05090 HellermannTytons Spiralwrap protective sheathing provides cable protection and flexible routing. Spiralwrap is wrapped around a group of cables to shield and organize. Polyethylene is ideal for general applications that are not affected by or dinary solvents. Ultraviolet resistant black polyethlene is for outdoor use. It has the same qualities as clear polyethylene, but also contains an ultraviolet absorber which permits it to be used in direct sunlight for long periods of time. Available i n colors.
HellermannTyton’s Spiralwrap protective sheathing provides cable protection and flexible routing. Spiralwrap is wrapped around a group of cables to shield and organize. Polyethylene is ideal for general applications that are not affected by ordinary solvents. Ultraviolet resistant black polyethlene is for outdoor use. It has the same qualities as clear polyethylene, but also contains an ultraviolet absorber which permits it to be used in direct sunlight for long periods of time. Available in colors.
About HellermannTyton: HellermannTyton is a global manufacturer of cable management and identification solutions for automotive, solar, electrical, construction, industrial automation, broadband and other OEM markets. The company's integrated approach to product design, sustainability, production, quality assurance and delivery is optimized to benefit local and global customers. HellermannTyton operates in 39 countries, with North American headquarters in Milwaukee, Wisconsin.
Specifications
Specifications
HellermannTyton - 161-05090 - Product Categories
- Hardware
- Cable Management
- Tubing
- Routing, Protection and Insulation
- Spiralwrap
- Spiralwrap - General Purpose
HellermannTyton - 161-05090 - Specifications
| Brand Name | HellermannTyton |
|---|---|
| Dual | No |
| Heat Shrink | No Is Not Shrink Tubing |
| Sleeving | Yes |
| Spiral Wrap | Yes |
| Zipper | No |
| UNSPSC Code | 39131604 |
HellermannTyton - 161-05090 - Base Data
| Article Number | 161-05090 |
|---|---|
| Type | 2.5NFP0H |
| Color | Black (BK) |
| Quantity Per | reel |
| Short Description | Spiralwrap Protective Sheathing, 0.38" Diameter, PE, Black, 500ft/roll |
| Global Part Name | 2.5NFP0H-PE-BK |
| Local Order Number 2 | 161-05090 |
HellermannTyton - 161-05090 - Product Dimensions
| Length L (Imperial) | 500 |
|---|---|
| Length L (Metric) | 152.4 |
| Variant | Spiral Binding |
| Bundle Diameter Min (Imperial) | 0.31 |
| Bundle Diameter Min (Metric) | 7.92 |
| Bundle Diameter Max (Imperial) | 3 |
| Bundle Diameter Max (Metric) | 76.2 |
| Diameter D (Imperial) | 0.375 |
| Diameter D (Metric) | 9.53 |
| Nominal Diameter (Imperial) | 0.38 |
| Nominal Diameter (Metric) | 9.53 |

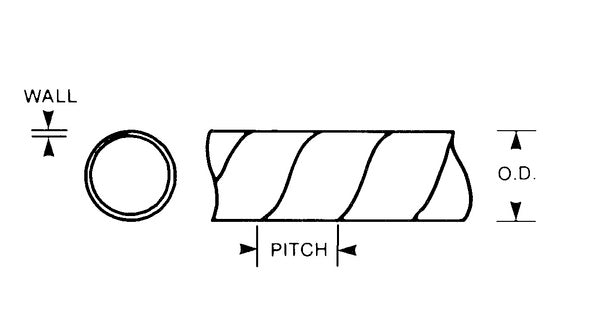

| Wall Thickness WT (Imperial) | 0.052 |
| Wall Thickness WT (Metric) | 1.32 |
HellermannTyton - 161-05090 - Logistic & Packaging
| Package Quantity (Imperial) | 500 |
|---|---|
| Package Quantity (Metric) | 152.4 |
| Customs Number | 3.93E+09 |
HellermannTyton - 161-05090 - Materials & Specifications
| Material | Polyethylene (PE) |
|---|---|
| Material Shortcut | PE |
| UV Resistant (Yes/No) | No |
| Operating Temperature | -76°F to +190°F (-60°C to +88°C) |
| Reach Compliant (Article 33) | No |
| ROHS Compliant | Yes |
