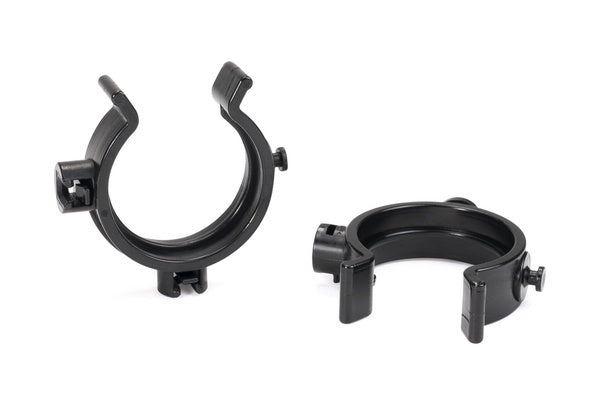

HellermannTyton 161-64010 | Helawrap, Accessory Clip, Hwclip30, 1-1/4" Dia, Pa66Hirhs, Black, 50/Pkg
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
HellermannTyton 161-64010 | Helawrap, Accessory Clip, Hwclip30, 1-1...
Description
Description

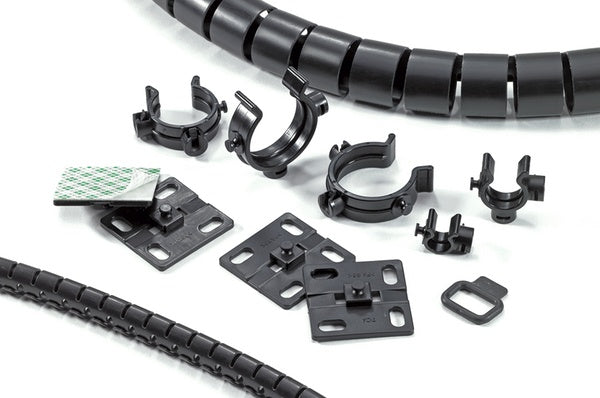

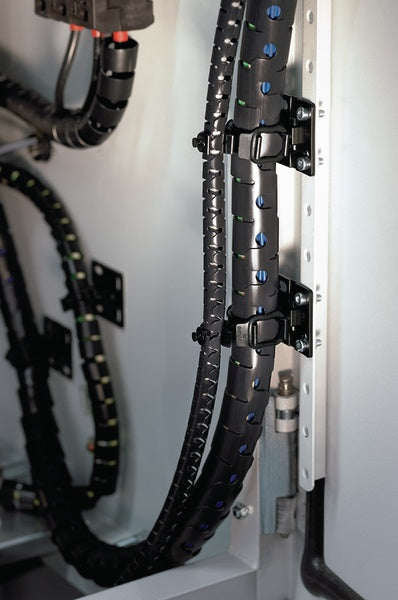

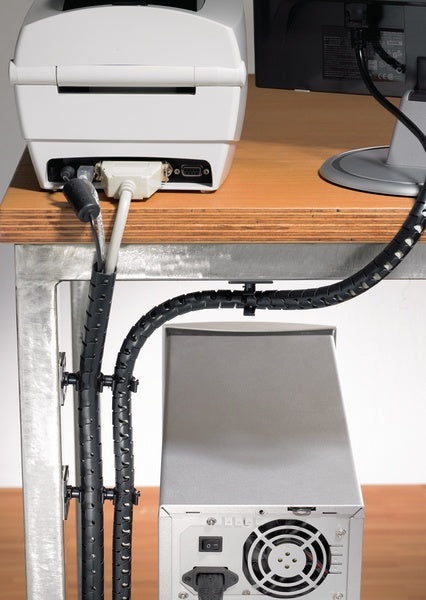

The Helawrap cable management system is the flexible routing and protection solution for industrial, datacom and electrical applications. Clips can be joined to a base and another clip of any size. Different cable sizes can be bundled together, organiz ed and protected flexibly and efficiently.
The Helawrap cable management system is the flexible routing and protection solution for industrial, datacom and electrical applications. Clips can be joined to a base and another clip of any size. Different cable sizes can be bundled together, organized and protected flexibly and efficiently.
About HellermannTyton: HellermannTyton is a global manufacturer of cable management and identification solutions for automotive, solar, electrical, construction, industrial automation, broadband and other OEM markets. The company's integrated approach to product design, sustainability, production, quality assurance and delivery is optimized to benefit local and global customers. HellermannTyton operates in 39 countries, with North American headquarters in Milwaukee, Wisconsin.
HellermannTyton - 161-64010 - Features
- An innovative coupling system allows for an unlimited number of bundling combinations.
- Clips can be easily released and reused.
- Clips swivel freely which reduces mechanical stress and eliminates pinch points.
- High Impact Polyamide 6.6 material provide firm fit even in rugged conditions.
- Consists of acrylate adhesive with base of polyurethane foam allowing it to adhere firmly and easily to nearly any surface.
- Unique open design allows for easy branch-offs at any point along the harness.
- Overwrap formation provides abrasion protection and accommodates multiple bundle configurations.
- Flexible construction and design is well suited for applications that involve movement and vibration.
- Easy to use installation tool makes assembly fast and easy.
Specifications
Specifications
HellermannTyton - 161-64010 - Product Categories
- Hardware
- Cable Management
- Tubing
- Routing, Protection and Insulation
- Helawrap Protective Tubing
- Helawrap - Clips, Bases, and Tools
HellermannTyton - 161-64010 - Specifications
| Brand Name | HellermannTyton |
|---|---|
| Decimal | 1.25 Inch |
| Dual | No |
| Heat Shrink | No Is Not Shrink Tubing |
| Size By Inch Fractions | 1 1/4 Inch |
| UNSPSC Code | 39131604 |
HellermannTyton - 161-64010 - Base Data
| Article Number | 161-64010 |
|---|---|
| Type | HWCLIP30 |
| Color | Black (BK) |
| Quantity Per | bag |
| Short Description | Helawrap, Accessory Clip, HWCLIP30, 1-1/4" Dia, PA66HIRHS, Black, 50/pkg |
| Global Part Name | HWCLIP30-PA66HIRHS-BK |
HellermannTyton - 161-64010 - Product Dimensions
| Fixation Method | Plug-in mounting |
|---|---|
| Diameter D (Imperial) | 1.22 |
| Diameter D (Metric) | 31 |
| Nominal Diameter (Imperial) | 1.25 |
| Nominal Diameter (Metric) | 30 |
HellermannTyton - 161-64010 - Logistic & Packaging
| Package Quantity (Imperial) | 50 |
|---|---|
| Package Quantity (Metric) | 50 |
| Customs Number | 3.93E+09 |
HellermannTyton - 161-64010 - Materials & Specifications
| Material | Polyamide 6.6, high impact modified, heat stabilized (PA66HIRHS) |
|---|---|
| Material Shortcut | PA66HIRHS |
| Flammability | UL 94 HB |
| Halogen Free | Yes |
| UV Resistant (Yes/No) | No |
| Operating Temperature | -40°F to +221°F (-40°C to +105°C) |
| Reach Compliant (Article 33) | Yes |
| ROHS Compliant | Yes |
HellermannTyton - 161-64010 - Videos
| HellermannTyton 161-64010 Video URL | Click to View |
|---|---|
| HellermannTyton 161-64010 Video URL 2 | Click to View |
