HellermannTyton 161-64310 | Helawrap, Hwpp20, 3/4" (20Mm) Dia,...
Description
Description

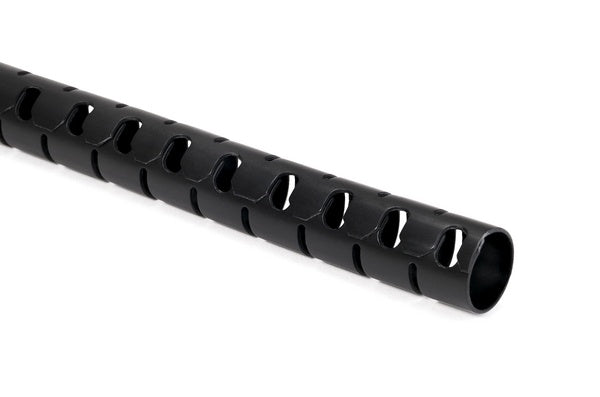

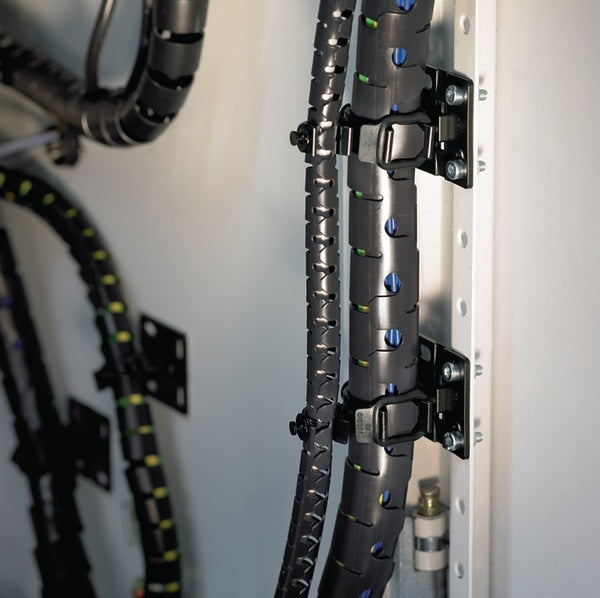

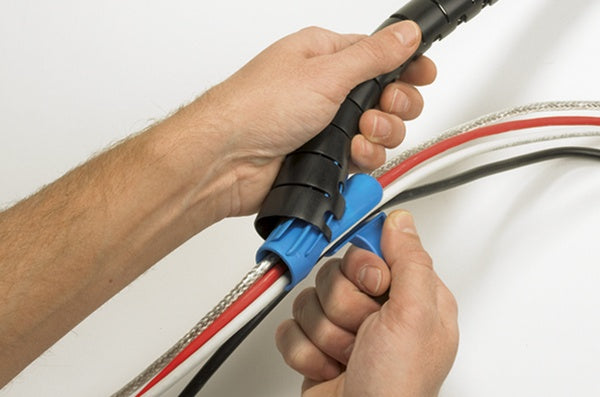

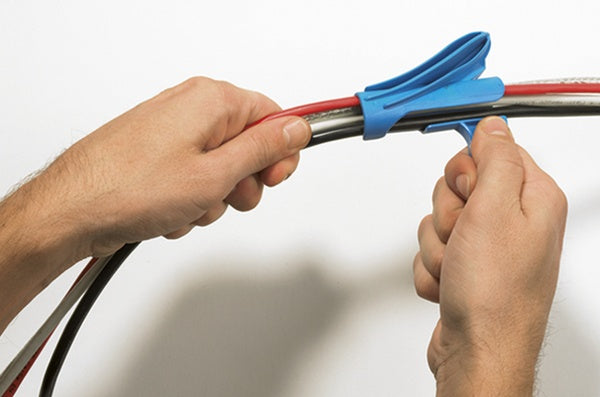

The Helawrap cable management system is the flexible routing and protection solution for industrial, datacom and electrical applications. Helawrap easily wraps around cables with a "zipper-like" motion to protect against abrasion and mechanical stress caused by movement and bending. A handy application tool is included in every package for faster installations.
The Helawrap cable management system is the flexible routing and protection solution for industrial, datacom and electrical applications. Helawrap easily wraps around cables with a "zipper-like" motion to protect against abrasion and mechanical stress caused by movement and bending. A handy application tool is included in every package for faster installations.
About HellermannTyton: HellermannTyton is a global manufacturer of cable management and identification solutions for automotive, solar, electrical, construction, industrial automation, broadband and other OEM markets. The company's integrated approach to product design, sustainability, production, quality assurance and delivery is optimized to benefit local and global customers. HellermannTyton operates in 39 countries, with North American headquarters in Milwaukee, Wisconsin.
HellermannTyton - 161-64310 - Features
- Unique open design for easy branch-offs at any point along the harness.
- Overwrap formation provides abrasion protection and accommodates multiple bundle configurations.
- Flexible construction and design eliminates pinch points and minimizes bending fatigue, making it ideal for applications involving movement and vibration.
- Split shape allows for future access without disassembly.
- For use with HellermannTyton T18 - T50 cable ties to provide stability when securing bundles.
- 4-way opening allows cable ties to be installed parallel or perpendicular to bundles.
- The rubber-based adhesive is an economical choice ideal for indoor applications, with a static load weight of 1.1 lb.
- Two predrilled holes extend mounting options and solutions.
- Extended adhesive liner is easy to remove quickly.
Specifications
Specifications
HellermannTyton - 161-64310 - Product Categories
- Hardware
- Cable Management
- Tubing
- Routing, Protection and Insulation
- Helawrap Protective Tubing
- Helawrap - General Purpose
HellermannTyton - 161-64310 - Specifications
| Brand Name | HellermannTyton |
|---|---|
| Decimal | .750 Inch |
| Dual | No |
| Heat Shrink | No Is Not Shrink Tubing |
| Mil Spec | No |
| Material/Type | Polypropylene |
| Military Color Code | Black |
| Size By Inch Fractions | 3/4 Inch |
| Sleeving | Yes |
| Spiral Wrap | No |
| Ul | No |
| Wall Type| Single Or Dual | Single Wall |
| Zipper | No |
| UNSPSC Code | 39131604 |
HellermannTyton - 161-64310 - Base Data
| Article Number | 161-64310 |
|---|---|
| Type | HWPP20 |
| Color | Black (BK) |
| Quantity Per | reel |
| Short Description | Helawrap, HWPP20, 3/4" (20mm) Dia, PP, Black, 100 ft/reel |
| Global Part Name | HWPP20-PP-BK |
HellermannTyton - 161-64310 - Product Dimensions
| Length L (Imperial) | 100 |
|---|---|
| Length L (Metric) | 30.48 |
| Variant | Spiral Binding |
| Bundle Diameter Min (Imperial) | 0.71 |
| Bundle Diameter Min (Metric) | 18.03 |
| Bundle Diameter Max (Imperial) | 0.83 |
| Bundle Diameter Max (Metric) | 21.08 |
| Diameter D (Imperial) | 0.75 |
| Diameter D (Metric) | 20 |
| Nominal Diameter (Imperial) | 0.75 |
| Nominal Diameter (Metric) | 20 |
| Wall Thickness WT (Imperial) | 0.037 |
| Wall Thickness WT (Metric) | 0.95 |
HellermannTyton - 161-64310 - Logistic & Packaging
| Package Quantity (Imperial) | 100 |
|---|---|
| Package Quantity (Metric) | 30.48 |
| Customs Number | 3.93E+09 |
HellermannTyton - 161-64310 - Materials & Specifications
| Material | Polypropylene (PP) |
|---|---|
| Material Shortcut | PP |
| Flammability | UL 94 HB |
| Halogen Free | Yes |
| UV Resistant (Yes/No) | No |
| Operating Temperature | -76°F to +230°F (-60°C to +110°C) |
| Reach Compliant (Article 33) | Yes |
| ROHS Compliant | Yes |
| Certification/Specification | EDAG | ECE R 118-03 Abschnitt 6 |
