HellermannTyton 166-90102 | Helaguard Non-Metallic Ip66 Fitting, 90...
Description
Description
Elbow fitting features a snap-on design that provides a quick, secure connection. Constructed of a very durable nylon material with a high resistance to salts, oils, weak acids and solvents. Designed for easy removal with a small screwdriver. Choose fr om IP66 or IP68 ingress protection rated fittings.

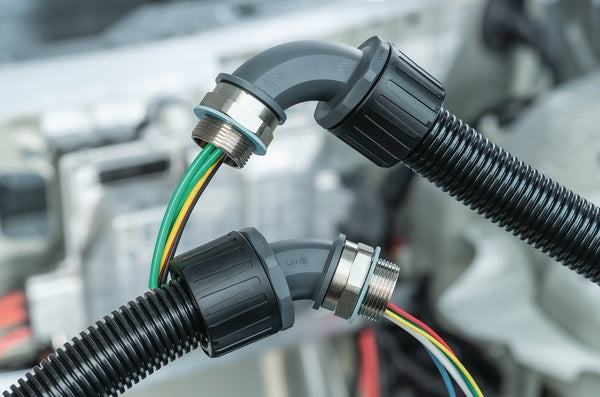

HelaGuard Non-Metallic 90-Degree Elbow fitting features a snap-on design that provides a quick, secure connection. Constructed of a very durable nylon material with a high resistance to salts, oils, weak acids and solvents. Designed for easy removal with a small screwdriver. IP66 ingress protection rated fittings.
About HellermannTyton: HellermannTyton is a global manufacturer of cable management and identification solutions for automotive, solar, electrical, construction, industrial automation, broadband and other OEM markets. The company's integrated approach to product design, sustainability, production, quality assurance and delivery is optimized to benefit local and global customers. HellermannTyton operates in 39 countries, with North American headquarters in Milwaukee, Wisconsin.
HellermannTyton - 166-90102 - Features
- External NPT thread provides a secure connection.
- Snap-on construction reduces installation time and costs by eliminating the need to thread fittings onto conduits.
- Elbow features a smooth, swept bore to ease cable installation.
- All-around "teeth" attch firmly to conduit and deliver a high extraction force.
- Durable nylon material has high resistance to salts, oils, weak acids and solvents.
- IP66 fitting has one-piece construction.
- IP68 fitting has additional conduit seal for increased protection aainst wind, dirt and water.
- External NPT thread provides a secure connection.
- Snap-on construction reduces installation time and costs by eliminating the need to thread fittings onto conduits.
- All-around "teeth" attach firmly to conduit and deliver a high extraction force.
- Durable nylon material has high resistance to salts, oils, weak acids and solvents.
- IP66 fitting has one-piece construction.
Specifications
Specifications
HellermannTyton - 166-90102 - Product Categories
- Hardware
- Cable Management
- Innerduct
- Routing, Protection and Insulation
- Flexible Conduit and Fittings
- Non-Metallic Fittings
HellermannTyton - 166-90102 - Specifications
| Brand Name | HellermannTyton |
|---|---|
| Color | Black |
| Diameter | 1.5" |
| Location | Outdoor |
| Type | Coupler |
| UNSPSC Code | 39131708 |
HellermannTyton - 166-90102 - Base Data
| Article Number | 166-90102 |
|---|---|
| Type | HG150-90-1500 |
| Color | Black (BK) |
| Quantity Per | bag |
| Short Description | HelaGuard Non-Metallic IP66 Fitting, 90-Elbow, NPT Thread, 1.50" Dia, PA66, Black, 2/pkg |
| Global Part Name | HG150-90-1500-PA66-BK |
HellermannTyton - 166-90102 - Product Dimensions
| Length L (Imperial) | 4.09 |
|---|---|
| Length L (Metric) | 104 |
| Variant | 90° Elbow |
| Outside Diameter OD (Imperial) | 2.99 |
| Outside Diameter OD (Metric) | 76 |
| Nominal Diameter (Imperial) | 2.13 |
| Nominal Diameter (Metric) | 54 |
HellermannTyton - 166-90102 - Logistic & Packaging
| Package Quantity (Imperial) | 2 |
|---|---|
| Package Quantity (Metric) | 2 |
| Customs Number | 3.93E+09 |
HellermannTyton - 166-90102 - Materials & Specifications
| Material | Polyamide 6.6 (PA66) |
|---|---|
| Material Shortcut | PA66 |
| Flammability | UL 94 V-2 |
| Halogen Free | Yes |
| UV Resistant (Yes/No) | No |
| Operating Temperature | -58°F to +275°F (-50°C to +135°C) |
| Reach Compliant (Article 33) | Yes |
| ROHS Compliant | Yes |
| UL Recognized (US) | Yes |
| UL Recognized (US and Canada) | Yes |
