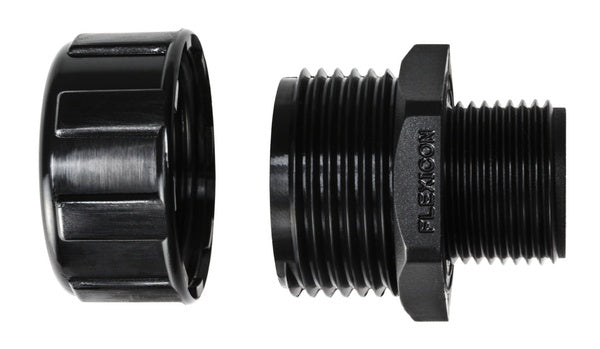

HellermannTyton 166-90137 | Helaguard Non-Metallic Ip65 Fitting, Straight, Npt Thread, 1.25" Dia, Pa66, Black, 2/Pkg
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
HellermannTyton 166-90137 | Helaguard Non-Metallic Ip65 Fitting, St...
Description
Description
Compression fittings feature a twist-on design for easy installation and future access. Constructed of a very durable nylon material with a high resistance to salts, oils, weak acids and solvents. Fits HelaGuard non-metallic conduits and tubing.
Compression fittings feature a twist-on design for easy installation and future access. Constructed of a very durable nylon material with a high resistance to salts, oils, weak acids and solvents. Fits HelaGuard non-metallic conduits and tubing.
About HellermannTyton: HellermannTyton is a global manufacturer of cable management and identification solutions for automotive, solar, electrical, construction, industrial automation, broadband and other OEM markets. The company's integrated approach to product design, sustainability, production, quality assurance and delivery is optimized to benefit local and global customers. HellermannTyton operates in 39 countries, with North American headquarters in Milwaukee, Wisconsin.
HellermannTyton - 166-90137 - Features
- External NPT thread provides a secure connection.
- Twist-on installation makes future access fast and easy.
- Internal spigot design helps ease threading of fitting onto conduit.
- All-around ?teeth" attach firmly to conduit and deliver a high extraction frce.
- Durable nylon material has high resistance to salts, oils, weak acids and solvents.
- IP65 rating for protection against wind, dirt and low pressure jets of water from all directions.
- Soft material inserts snap precisely into the body of the clamp to provide an enhanced level of protection for applications with movement, high vibration or soft cable bundles.
Specifications
Specifications
HellermannTyton - 166-90137 - Product Categories
- Hardware
- Cable Management
- Innerduct
- Routing, Protection and Insulation
- Flexible Conduit and Fittings
- Non-Metallic Fittings
HellermannTyton - 166-90137 - Specifications
| Brand Name | HellermannTyton |
|---|---|
| Color | Black |
| Diameter | 1.25" |
| Location | Outdoor |
| Type | Coupler |
| UNSPSC Code | 39131708 |
HellermannTyton - 166-90137 - Base Data
| Article Number | 166-90137 |
|---|---|
| Type | PSR125-S-1250 |
| Color | Black (BK) |
| Quantity Per | bag |
| Short Description | HelaGuard Non-Metallic IP65 Fitting, Straight, NPT Thread, 1.25" Dia, PA66, Black, 2/pkg |
| Global Part Name | PSR125-S-1250-PA66-BK |
HellermannTyton - 166-90137 - Product Dimensions
| Length L (Imperial) | 2.32 |
|---|---|
| Length L (Metric) | 59 |
| Variant | Straight |
| Outside Diameter OD (Imperial) | 2.36 |
| Outside Diameter OD (Metric) | 60 |
| Nominal Diameter (Imperial) | 1.25 |
| Nominal Diameter (Metric) | 40 |
HellermannTyton - 166-90137 - Logistic & Packaging
| Package Quantity (Imperial) | 2 |
|---|---|
| Package Quantity (Metric) | 2 |
| Customs Number | 3.93E+09 |
HellermannTyton - 166-90137 - Materials & Specifications
| Material | Polyamide 6.6 (PA66) |
|---|---|
| Material Shortcut | PA66 |
| Flammability | UL 94 V-2 |
| Halogen Free | Yes |
| UV Resistant (Yes/No) | No |
| Operating Temperature | -40°F to +248°F (-40°C to +120°C) |
| Reach Compliant (Article 33) | Yes |
| ROHS Compliant | Yes |
| UL Recognized (US) | Yes |
| UL Recognized (US and Canada) | Yes |
