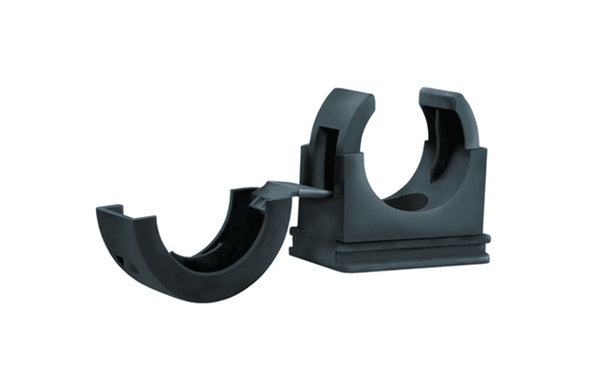

HellermannTyton 166-90180 | Helaguard Pacc Conduit Clip, 0.75" Dia, Pa66, Black, 10/Pkg
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
HellermannTyton 166-90180 | Helaguard Pacc Conduit Clip, 0.75"...
Description
Description
Conduit Clips clamp onto corrugated conduits and tubing to secure. Nylon material resists corrosion and chemicals. Can also be used on C-shaped DIN rails.
Conduit Clips clamp onto corrugated conduits and tubing to secure. Nylon material resists corrosion and chemicals. Can also be used on C-shaped DIN rails.
About HellermannTyton: HellermannTyton is a global manufacturer of cable management and identification solutions for automotive, solar, electrical, construction, industrial automation, broadband and other OEM markets. The company's integrated approach to product design, sustainability, production, quality assurance and delivery is optimized to benefit local and global customers. HellermannTyton operates in 39 countries, with North American headquarters in Milwaukee, Wisconsin.
HellermannTyton - 166-90180 - Features
- Assists with installation by easily cutting through HelaGuard non-mettalic conduit and tubing.
- Cable ties made of PA46 material provide a greater resistance to high heat exposures than PA66 heat stabilized material.
- Inside serrations allow for strong grip on cables and wire bundles.
- Head design provides high tensile strength with very low insertion force.
Specifications
Specifications
HellermannTyton - 166-90180 - Product Categories
- Hardware
- Cable Management
- Innerduct
- Routing, Protection and Insulation
- Flexible Conduit and Fittings
- Accessories
HellermannTyton - 166-90180 - Specifications
| Brand Name | HellermannTyton |
|---|---|
| Color | Black |
| Construction | Corrugated |
| Diameter | 0.75" |
| Location | Outdoor |
| Type | Accessory |
| UNSPSC Code | 39131708 |
HellermannTyton - 166-90180 - Base Data
| Article Number | 166-90180 |
|---|---|
| Type | PACC0750 |
| Color | Black (BK) |
| Quantity Per | pack |
| Short Description | HelaGuard PACC Conduit Clip, 0.75" Dia, PA66, Black, 10/pkg |
| Global Part Name | PACC0750-PA66-BK |
HellermannTyton - 166-90180 - Product Dimensions
| Length L (Imperial) | 1.61 |
|---|---|
| Length L (Metric) | 41 |
| Variant | Clip |
| Width W (Imperial) | 0.59 |
| Width W (Metric) | 15 |
| Height H (Imperial) | 1.77 |
| Height H (Metric) | 45 |
| Nominal Diameter (Imperial) | 0.75 |
| Nominal Diameter (Metric) | 28 |
| Mounting Hole Diameter D (Imperial) | 0.24 |
| Mounting Hole Diameter D (Metric) | 6.0 mm |
| Mounting Hole Diameter D Max (Metric) | 6 |
HellermannTyton - 166-90180 - Logistic & Packaging
| Package Quantity (Imperial) | 10 |
|---|---|
| Package Quantity (Metric) | 10 |
| Customs Number | 3.93E+09 |
HellermannTyton - 166-90180 - Materials & Specifications
| Material | Polyamide 6.6 (PA66) |
|---|---|
| Material Shortcut | PA66 |
| Flammability | UL 94 V-2 |
| Halogen Free | Yes |
| UV Resistant (Yes/No) | No |
| Operating Temperature | -58°F to +275°F (-50°C to +135°C) |
| Reach Compliant (Article 33) | No |
| ROHS Compliant | Yes |
