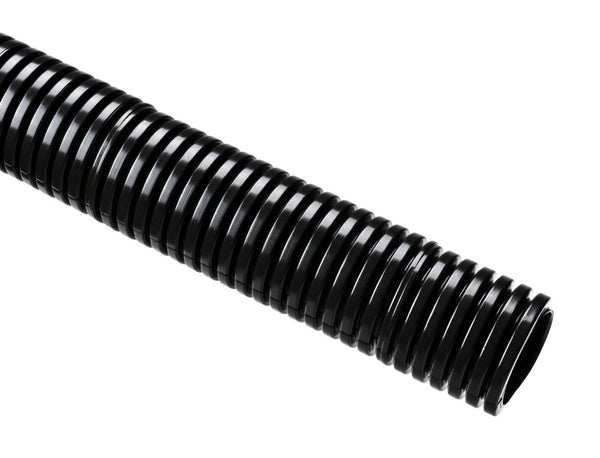

HellermannTyton 166-90202 | Helaguard Non-Metallic Conduit, Flame Retardant, Std Wt, 0.38" Dia, Pa6-Fr, Bk, 100 Ft/Std. Reel
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
HellermannTyton 166-90202 | Helaguard Non-Metallic Conduit, Flame R...
Description
Description

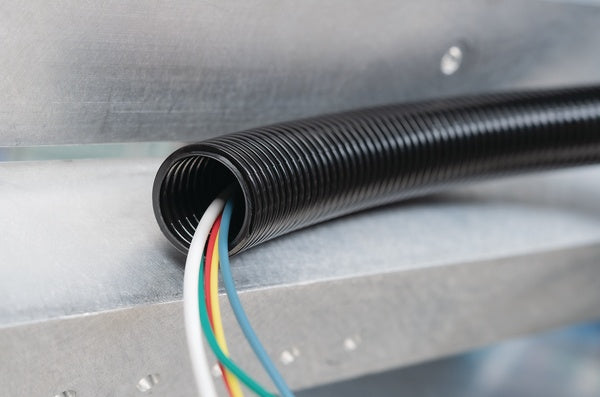

A standard weight corrugated conduit made of a flame retardant material for use in applications in which high fire protection and low flammability are primary requirements. Easy to cut and use, the material is highly resistant to solvents and oils. Com bine with HelaGuard Non-Metallic Fittings for IP66 rating or greater protection against water, wind and dirt.
A standard weight corrugated conduit made of a flame retardant material for use in applications in which high fire protection and low flammability are primary requirements. Easy to cut and use, the material is highly resistant to solvents and oils. Combine with HelaGuard Non-Metallic Fittings for IP66 rating or greater protection against water, wind and dirt.
About HellermannTyton: HellermannTyton is a global manufacturer of cable management and identification solutions for automotive, solar, electrical, construction, industrial automation, broadband and other OEM markets. The company's integrated approach to product design, sustainability, production, quality assurance and delivery is optimized to benefit local and global customers. HellermannTyton operates in 39 countries, with North American headquarters in Milwaukee, Wisconsin.
HellermannTyton - 166-90202 - Features
- Flame retardant material; meets low flammability, smoke and toxicity ratings.
- Easy to use and cut; reduces installation time and labor costs.
- Flexible, abrasion resistant and durable for a variety of applications.
- Good impact strength; recovers quickl if crushed.
- Rated UL94 V0.
- UV resistant; suitable for use in outdoor applications.
- Offered in fine or course corrugated pitch.
- Lightweight and highly flexible for use in tight bend and fit applications.
- Easy to use and cut; reduces installation time and labor costs.
- Good abrasion resistance and impact strength; recovers quickly if crushed.
- Offered in fine or course corrugated pitch.
Specifications
Specifications
HellermannTyton - 166-90202 - Product Categories
- Hardware
- Cable Management
- Innerduct
- Routing, Protection and Insulation
- Flexible Conduit and Fittings
- Non-Metallic Conduit
HellermannTyton - 166-90202 - Specifications
| Brand Name | HellermannTyton |
|---|---|
| Color | Black |
| Construction | Corrugated |
| Location | Outdoor |
| Type | Conduit |
| UNSPSC Code | 39131601 |
HellermannTyton - 166-90202 - Base Data
| Article Number | 166-90202 |
|---|---|
| Type | HG-FR0380 |
| Color | Black (BK) |
| Quantity Per | reel |
| Short Description | HelaGuard Non-Metallic Conduit, Flame Retardant, Std Wt, 0.38" Dia, PA6-FR, Bk, 100 ft/Std. Reel |
| Global Part Name | HG-FR0380-PA6FR-BK |
HellermannTyton - 166-90202 - Product Dimensions
| Length L (Imperial) | 100 |
|---|---|
| Length L (Metric) | 30.5 |
| Inner Diameter D (Imperial) | 0.47 |
| Inner Diameter D (Metric) | 11.8 |
| Outside Diameter OD (Imperial) | 0.63 |
| Outside Diameter OD (Metric) | 15.8 |
| Nominal Diameter (Imperial) | 0.38 |
| Nominal Diameter (Metric) | 16 |
HellermannTyton - 166-90202 - Logistic & Packaging
| Package Quantity (Imperial) | 100 |
|---|---|
| Package Quantity (Metric) | 30.48 |
| Customs Number | 3.93E+09 |
HellermannTyton - 166-90202 - Materials & Specifications
| Material | Polyamide 6, flame retardant (PA6FR) |
|---|---|
| Material Shortcut | PA6FR |
| Flammability | UL 94 V-0 |
| Halogen Free | Yes |
| UV Resistant (Yes/No) | No |
| Operating Temperature | -40°F to +248°F (-40°C to +120°C) |
| Reach Compliant (Article 33) | Yes |
| ROHS Compliant | Yes |
| Certification/Specification | Exova | NFPA130: 2017ASTM 1354ASTM E 662ASTM E 162 |
| UL Recognized (US) | Yes |
| UL Recognized (US and Canada) | Yes |
