HellermannTyton 166-90264 | HelaGuard Non-Metallic Conduit, Std. We...
Description
Description

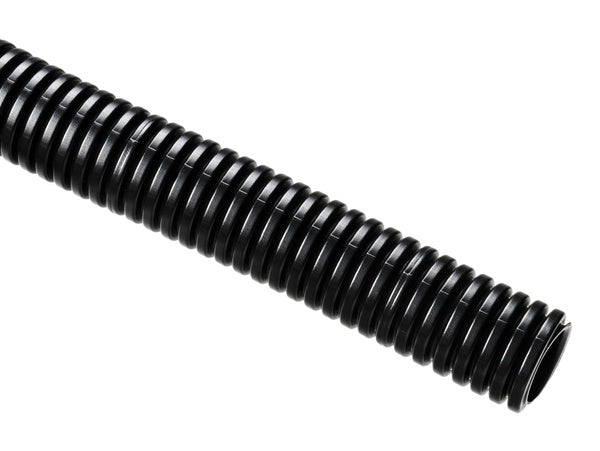

A standard weight corrugated conduit made of PA12 nylon that offers superior impact resistance, making it ideal for protecting wire and cable bundles in conditions with continual movement or bending. This material is highly resistant to UV light, solve nts and oils. Combine with HelaGuard non-metallic fittings to achieve IP66 or greater protection against water, wind and dirt.
A standard weight corrugated conduit made of PA12 nylon that offers superior impact resistance, making it ideal for protecting wire and cable bundles in conditions with continual movement or bending. This material is highly resistant to UV light, solvents and oils. Combine with HelaGuard non-metallic fittings to achieve IP66 or greater protection against water, wind and dirt.
About HellermannTyton: HellermannTyton is a global manufacturer of cable management and identification solutions for automotive, solar, electrical, construction, industrial automation, broadband and other OEM markets. The company's integrated approach to product design, sustainability, production, quality assurance and delivery is optimized to benefit local and global customers. HellermannTyton operates in 39 countries, with North American headquarters in Milwaukee, Wisconsin.
HellermannTyton - 166-90264 - Features
- Very high impact strength; recovers completely if crushed and provides excellent fatigue life.
- Highly UV resistant; suitable for use in outdoor applications.
- Offered in fine or course corrugated pitch.
- Offered with or without slit; slit options offereasy access during installation and maintenance.
- One-piece ratchet closure allows for easy installation during pre- or final assembly.
- Easy release feature simplifies quick adjustments and maintenance.
- Impact modified, heat and UV stabilized PA66 provides long-term durability, indoors and out.
- Stainless steel mounting plate tolerates high torque and provides superior corrosion resistance against chemicals, salt spray and contact with dissimilar metals.
- Straight, 180° mounting plate is ideal for applications requiring a flush mount set off from the mounting hole.
Specifications
Specifications
HellermannTyton - 166-90264 - Product Categories
- Hardware
- Cable Management
- Innerduct
- Routing, Protection and Insulation
- Flexible Conduit and Fittings
- Non-Metallic Conduit
HellermannTyton - 166-90264 - Specifications
| Brand Name | HellermannTyton |
|---|---|
| Color | Black |
| Construction | Corrugated |
| Location | Outdoor |
| Type | Conduit |
| UNSPSC Code | 39131601 |
HellermannTyton - 166-90264 - Base Data
| Article Number | 166-90264 |
|---|---|
| Type | HG-HISL0380 |
| Color | Black (BK) |
| Quantity Per | reel |
| Short Description | HelaGuard Non-Metallic Conduit, Std. Weight, 0.38" Dia, Nylon PA12 Slit, Black, 100 ft/Std. Reel |
| Global Part Name | HG-HISL0380-PA12-BK |
HellermannTyton - 166-90264 - Product Dimensions
| Length L (Imperial) | 100 |
|---|---|
| Length L (Metric) | 30.5 |
| Inner Diameter D (Imperial) | 0.47 |
| Inner Diameter D (Metric) | 11.8 |
| Outside Diameter OD (Imperial) | 0.63 |
| Outside Diameter OD (Metric) | 15.8 |
| Nominal Diameter (Imperial) | 0.38 |
| Nominal Diameter (Metric) | 16 |
HellermannTyton - 166-90264 - Logistic & Packaging
| Package Quantity (Imperial) | 100 |
|---|---|
| Package Quantity (Metric) | 30.48 |
| Customs Number | 3.93E+09 |
HellermannTyton - 166-90264 - Materials & Specifications
| Material | Polyamide 12 (PA12) |
|---|---|
| Material Shortcut | PA12 |
| Flammability | EN IEC 61386 |
| Halogen Free | Yes |
| UV Resistant (Yes/No) | No |
| Operating Temperature | -58°F to +230°F (-50°C to +110°C) |
| Reach Compliant (Article 33) | Yes |
| ROHS Compliant | Yes |
