HellermannTyton 166-90502 | Helaguard Sr Pvc Tubing, Smooth Bore, S...
Description
Description

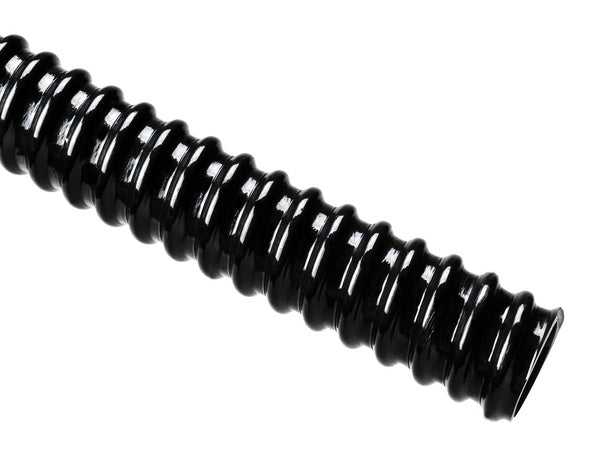

A lightweight tubing with a smooth inside bore, made of a spiral reinforced PVC material that provides high flexibility. This tubing is well-suited for protecting wire and cable bundles in extremely tight spaces. UV resistant. Use with HelaGuard Non-Me tallic Compression Fittings to create an enclosed system.
A lightweight tubing with a smooth inside bore, made of a spiral reinforced PVC material that provides high flexibility. This tubing is well-suited for protecting wire and cable bundles in extremely tight spaces. UV resistant. Use with HelaGuard Non-Metallic Compression Fittings to create an enclosed system.
About HellermannTyton: HellermannTyton is a global manufacturer of cable management and identification solutions for automotive, solar, electrical, construction, industrial automation, broadband and other OEM markets. The company's integrated approach to product design, sustainability, production, quality assurance and delivery is optimized to benefit local and global customers. HellermannTyton operates in 39 countries, with North American headquarters in Milwaukee, Wisconsin.
HellermannTyton - 166-90502 - Features
- Spiral reinforced construction provides protection from crushing yet remains extremely flexible.
- Lightweight, easy-to-use material reduces installation time and labor costs.
- Material stands up to vibration and limited torsional movement without creation of stress points or cracks.
- Smooth inside bore protects wires and eases insertion of wire bundles.
- UV resistant; suitable for use in outdoor applications.
- Friction tab inside the fir tree allows the tie to sit in mount without falling out prior to installation.
- Fir tree provides low insertion effort yet demonstrates high extraction resistance.
- Disc feature prevents rattling in high-vibration applications and protects against debris ingress.
Specifications
Specifications
HellermannTyton - 166-90502 - Product Categories
- Hardware
- Cable Management
- Innerduct
- Routing, Protection and Insulation
- Flexible Conduit and Fittings
- Non-Metallic Conduit
HellermannTyton - 166-90502 - Specifications
| Brand Name | HellermannTyton |
|---|---|
| Color | Black |
| Construction | Smooth Outside / Smooth Inside |
| Diameter | 1.5" |
| Location | Outdoor |
| Type | Conduit |
| UNSPSC Code | 39131601 |
HellermannTyton - 166-90502 - Base Data
| Article Number | 166-90502 |
|---|---|
| Type | PSR1500 |
| Color | Black (BK) |
| Quantity Per | reel |
| Short Description | HelaGuard SR PVC Tubing, Smooth Bore, Spiral Cover, Std Wt, 1.5" Dia, Bk, 100 ft/Std. Reel |
| Global Part Name | PSR1500-PVC-BK |
HellermannTyton - 166-90502 - Product Dimensions
| Length L (Imperial) | 100 |
|---|---|
| Length L (Metric) | 30.5 |
| Inner Diameter D (Imperial) | 1.57 |
| Inner Diameter D (Metric) | 40 |
| Outside Diameter OD (Imperial) | 1.83 |
| Outside Diameter OD (Metric) | 46.4 |
| Nominal Diameter (Imperial) | 1.97 |
| Nominal Diameter (Metric) | 50 |
HellermannTyton - 166-90502 - Logistic & Packaging
| Package Quantity (Imperial) | 100 |
|---|---|
| Package Quantity (Metric) | 30.48 |
| Customs Number | 3.93E+09 |
HellermannTyton - 166-90502 - Materials & Specifications
| Material | Polyvinylchloride (PVC) |
|---|---|
| Material Shortcut | PVC |
| Flammability | EN IEC 61386 |
| Halogen Free | No |
| UV Resistant (Yes/No) | No |
| Operating Temperature | -4°F to +158°F (-20°C to +70°C) |
| Reach Compliant (Article 33) | Yes |
| ROHS Compliant | Yes |
| UL Recognized (US) | Yes |
| UL Recognized (US and Canada) | Yes |
