HellermannTyton 166-90790 | HelaGuard NM Ultra IP68 Fitting, 45-Deg...
Description
Description

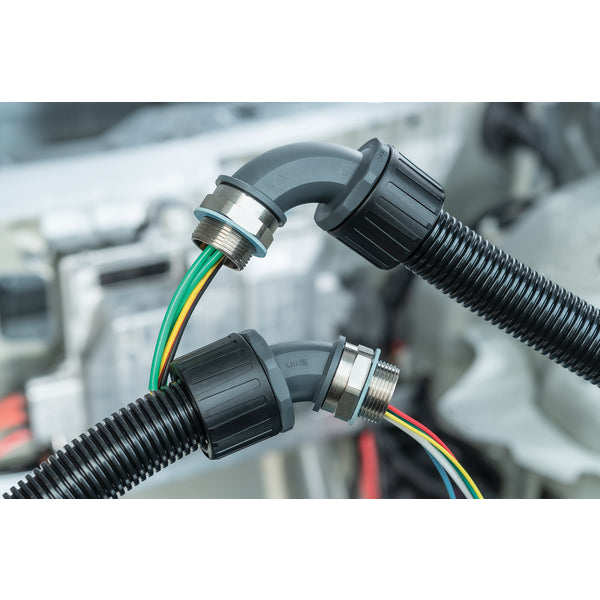

Elbow Snap-On style Metric or NPT threaded nylon fittings provide a true one-piece component solution; seals and locknuts are included. Durable nylon materials deliver high chemical resistance against salts, oils, weak acids, and solvents. Designed for easy removal with a small screwdriver. UL-Listed fittings deliver IP66 + IP67 + IP68 + IP69 ingress protection.
Elbow Snap-On style Metric or NPT threaded nylon fittings provide a true one-piece component solution; seals and locknuts are included. Durable nylon materials deliver high chemical resistance against salts, oils, weak acids, and solvents. Designed for easy removal with a small screwdriver. UL-Listed fittings deliver IP66 + IP67 + IP68 + IP69 ingress protection.
About HellermannTyton: HellermannTyton is a global manufacturer of cable management and identification solutions for automotive, solar, electrical, construction, industrial automation, broadband and other OEM markets. The company's integrated approach to product design, sustainability, production, quality assurance and delivery is optimized to benefit local and global customers. HellermannTyton operates in 39 countries, with North American headquarters in Milwaukee, Wisconsin.
HellermannTyton - 166-90790 - Features
- Integrated Sealing Technology includes conduit insert seal and high-performance face-sealing washer for ease of use and durability.
- True one-piece component for fast Snap-On application reduces installation time and costs by eliminating the need to thr ead fittings onto conduits.
- All-around "teeth" attach firmly to corrugated conduit and deliver a high extraction force.
- Elbow features a smooth bore to ease cable installation.
- PA66 nylon material has high resistance to salts, oils, weak acids, and sovents.
- Integrated design delivers IP66 + IP67 + IP68 + IP69 ingress protection against moisture and dirt.
Specifications
Specifications
HellermannTyton - 166-90790 - Product Categories
- Hardware
- Cable Management
- Innerduct
- Routing, Protection and Insulation
- Flexible Conduit and Fittings
- Non-Metallic Fittings
HellermannTyton - 166-90790 - Specifications
| Brand Name | HellermannTyton |
|---|---|
| Color | Black |
| Location | Outdoor |
| Type | Coupler |
| UNSPSC Code | 39131601 |
HellermannTyton - 166-90790 - Base Data
| Article Number | 166-90790 |
|---|---|
| Type | HGU038-45-0500 |
| Color | Black (BK) |
| Quantity Per | pack |
| Short Description | HelaGuard NM Ultra IP68 Fitting, 45-Degree Elbow, 0.50" NPT Thread, 0.38" Dia., PA66, Black, 1/pkg |
| Global Part Name | HGU038-45-0500-PA66-BK |
HellermannTyton - 166-90790 - Product Dimensions
| Length L (Imperial) | 2.28 |
|---|---|
| Length L (Metric) | 58 |
| Variant | 45° Elbow |
| Outside Diameter OD (Imperial) | 1.14 |
| Outside Diameter OD (Metric) | 29 |
| Nominal Diameter (Imperial) | 0.38 |
| Nominal Diameter (Metric) | 16 |
HellermannTyton - 166-90790 - Logistic & Packaging
| Package Quantity (Imperial) | 1 |
|---|---|
| Package Quantity (Metric) | 1 |
| Customs Number | 3.93E+09 |
HellermannTyton - 166-90790 - Materials & Specifications
| Material | Polyamide 6.6 (PA66) |
|---|---|
| Material Shortcut | PA66 |
| Halogen Free | Yes |
| UV Resistant (Yes/No) | No |
| Operating Temperature | -58°F to +275°F (-50°C to +135°C) |
| Reach Compliant (Article 33) | No |
| ROHS Compliant | Yes |
| UL Listed (US and Canada) | Yes |
| UL Listed (US) | Yes |
