HellermannTyton 169-23009 | Non-Metallic Tubing, 9mm Dia, PTFE, Bla...
Description
Description
169-23009 The unique advantages of PTFE include excellent resistance to almost all chemicals as well as to low and high temperatures, very good tensile strength and very good fatigue life. In addition, PTFE offers superior dielectric strength and anti- adhesive properties. The CTT conduits made of PTFE protect cables from extreme temperatures, fire, moisture, corrosion, vibration and abrasion.

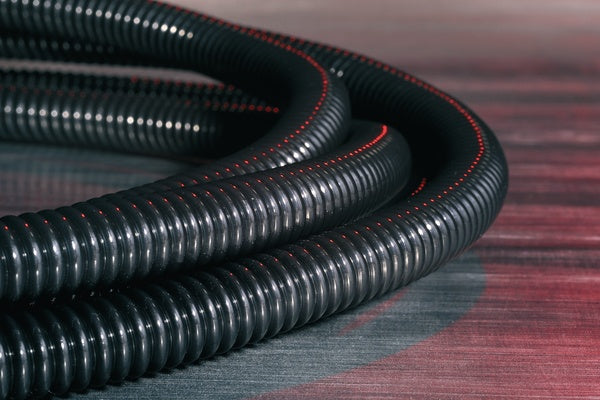

HellermannTyton’s Polytetrafluoroethylene Convoluted Tubing provides an efficient method of routing and protecting wire harness assemblies while reducing the chance of installation damage. It also protects valuable hoses and cables. It is used in industries with demanding environments including aviation, aerospace, chemical, pharmaceutical, ship building, food processing and electrical.
About HellermannTyton: HellermannTyton is a global manufacturer of cable management and identification solutions for automotive, solar, electrical, construction, industrial automation, broadband and other OEM markets. The company's integrated approach to product design, sustainability, production, quality assurance and delivery is optimized to benefit local and global customers. HellermannTyton operates in 39 countries, with North American headquarters in Milwaukee, Wisconsin.
HellermannTyton - 169-23009 - Features
- Living hinge allows harness serviceability and reduces assembly time.
- Internal ribs affix to exterior of tubing which prevents slipping during tension or movement.
- Snap-on connection makes installations quick and easy and increases efficiencies in harness assembly.
- Junction point outlets offer additional areas to branch off wires and prevents wires from sliding or accidental removal from tubing.
- Improves aesthics of assembled wire harness.
- No tools required to disassemble.
Specifications
Specifications
HellermannTyton - 169-23009 - Product Categories
- Hardware
- Cable Management
- Innerduct
- Routing, Protection and Insulation
- Convoluted Tubing and Accessories
- Convoluted Tubing
HellermannTyton - 169-23009 - Specifications
| Brand Name | HellermannTyton |
|---|---|
| Color | Grey |
| Construction | Smooth Outside / Smooth Inside |
| Location | Mixed Use |
| Type | Conduit - Flexible |
| UNSPSC Code | 39131706 |
HellermannTyton - 169-23009 - Base Data
| Article Number | 169-23009 |
|---|---|
| Type | CTT-09 NSA935805-09 |
| Color | Black (BK) |
| Quantity Per | reel |
| Short Description | Non-Metallic Tubing, 9mm Dia, PTFE, Black, 164 ft/pkg |
| Global Part Name | CTT-09 NSA935805-09-PTFE-BK |
HellermannTyton - 169-23009 - Product Dimensions
| Length L (Imperial) | 164 |
|---|---|
| Length L (Metric) | 50 |
| Variant | Unslit |
| Inner Diameter D (Imperial) | 0.28 |
| Inner Diameter D (Metric) | 7 |
| Diameter D (Imperial) | 0.42 |
| Diameter D (Metric) | 10.6 |
| Outside Diameter OD (Imperial) | 0.42 |
| Outside Diameter OD (Metric) | 10.6 |
| Nominal Diameter (Imperial) | 0.35 |
| Nominal Diameter (Metric) | 9 |
HellermannTyton - 169-23009 - Logistic & Packaging
| Package Quantity (Imperial) | 164.04 |
|---|---|
| Package Quantity (Metric) | 50 |
| Customs Number | 3.93E+09 |
HellermannTyton - 169-23009 - Materials & Specifications
| Material | Polytetrafluoroethylene (PTFE) |
|---|---|
| Material Shortcut | PTFE |
| Flammability | FAR 25 |
| Halogen Free | No |
| UV Resistant (Yes/No) | No |
| Operating Temperature | -85°F to +500°F (-65°C to +260°C) |
| Reach Compliant (Article 33) | Yes |
| ROHS Compliant | Yes |
| Certification/Specification | Airbus France | NSA 935805 |
