Brand: HellermannTyton | SKU: 501482

HellermannTyton 169-60019 | Convoluted Tubing, Slit, .5" Dia, PA6, Black with Gray Stripe, 100 ft/pkg

Regular price $127.15
Shipping calculated at checkout.
  • Low prices.

    Price match guarantee

  • In-House Experts.

    We know our products

  • Easy Returns.

    Quick & Hassle Free

  • Superior Selection.

    Extensive product catalog

Description

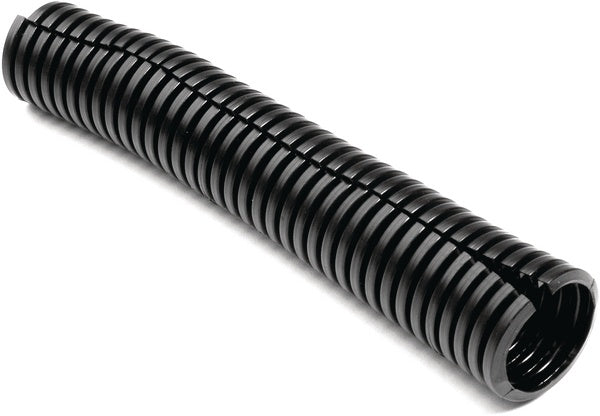

HellermannTyton 169-60019 | Convoluted Tubing, Slit, 0.5" Dia, Pa6, Black With Gray Stripe, 100 Ft/Pkg

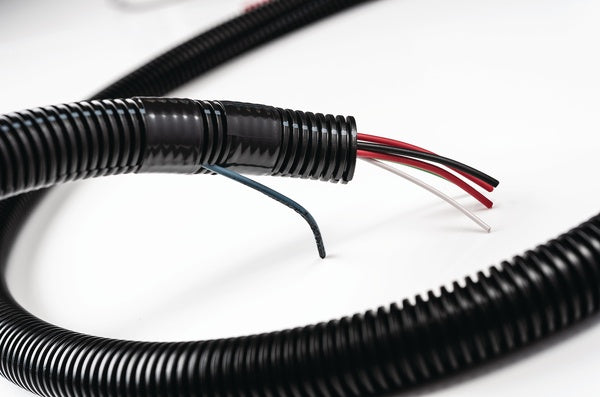

HellermannTyton’s Convoluted Tubing, also known at Split Loom Tubing, provides an efficient method of routing and protecting wire harness assemblies, while reducing the chance of installation damage. With a split down the side where you can insert your wire harness, you can just easily install Convoluted Tubing without removal of the entire assembly. It can also serve to protect valuable hoses and cables. Convoluted tubing offer’s excellent protection against vibration wear, water, snow, ice and the effects of heat, cold and sunlight on cables and wires.

Convoluted tubing provides an efficient method of routing and protecting wire harness assemblies, while reducing the chance of installation damage. It also can serve to protect valuable wiring circuits. HellermannTyton’s convoluted tubing offers excellent protection against automotive fluids, vibration wear, water, snow, ice, and the effects of heat or cold on cables and wires. Available in standard, bulk, and dispenser box packaging. Material is slit.

About HellermannTyton: HellermannTyton is a global manufacturer of cable management and identification solutions for automotive, solar, electrical, construction, industrial automation, broadband and other OEM markets. The company's integrated approach to product design, sustainability, production, quality assurance and delivery is optimized to benefit local and global customers. HellermannTyton operates in 39 countries, with North American headquarters in Milwaukee, Wisconsin.

HellermannTyton - 169-60019 - Features

  • Durable tubing provides protection of wire harness from friction, vibration, fraying and puncture
  • Tubing protects cables and wires against automotive fluids, vibration wear
  • Weather resistant material provides protection against water, snow, ice, and the effects of heat, cold, and sunlight
  • Weave construction adjusts to twisting and flexing without creating wrinkles or bends.
  • Durable construction offers excellent abrasion and cut-through resistance as well as inertness to most chemicals and fungus.
  • Color options available to provide easy visual and safety identification of critical wiring components.
  • Expands to 150% of nominal diameter for fast, easy installation.

Specifications

HellermannTyton - 169-60019 - Product Categories

  • Hardware
  • Cable Management
  • Innerduct
  • Routing, Protection and Insulation
  • Convoluted Tubing and Accessories
  • Convoluted Tubing

HellermannTyton - 169-60019 - Specifications

Brand NameHellermannTyton
ColorGrey
Diameter0.5"
LocationOutdoor
TypeCoupler
UNSPSC Code39131601

HellermannTyton - 169-60019 - Base Data

Article Number169-60019
TypeCTN120
ColorBlack with Gray Stripe (BKSTGY)
Quantity Perbox
Short DescriptionConvoluted Tubing, Slit, 0.5" Dia, PA6, Black with Gray Stripe, 100 ft/pkg
Global Part NameCTN120-PA6-BK

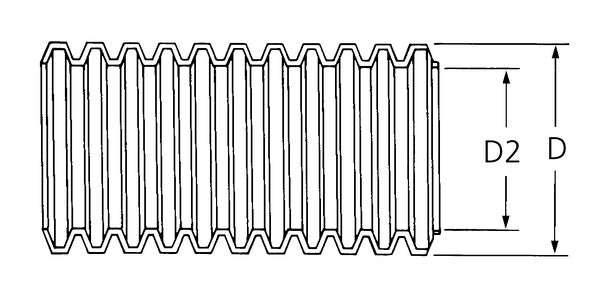

HellermannTyton - 169-60019 - Product Dimensions

Length L (Imperial)100
Length L (Metric)30.5
VariantSlit
Width W (Imperial)0.127
Width W (Metric)3.23
Inner Diameter D (Imperial)0.516
Inner Diameter D (Metric)13.11
Diameter D (Imperial)0.7
Diameter D (Metric)17.78
Outside Diameter OD (Imperial)0.7
Outside Diameter OD (Metric)17.78
Nominal Diameter (Imperial)0.5
Nominal Diameter (Metric)12.7
Wall Thickness WT (Imperial)0.005
Wall Thickness WT (Metric)0.127

HellermannTyton - 169-60019 - Logistic & Packaging

Package Quantity (Imperial)100
Package Quantity (Metric)30.48
Customs Number3.93E+09

HellermannTyton - 169-60019 - Materials & Specifications

MaterialPolyamide 6 (PA6)
Material ShortcutPA6
FlammabilityUL 94 HB
Halogen FreeNo
UV Resistant (Yes/No)No
Operating Temperature-40°F to +257°F (-40°C to +125°C)
Reach Compliant (Article 33)Yes
ROHS CompliantYes
