HellermannTyton 170-03015 | Braided Sleeving, Expandable, Fray Resi...
Description
Description

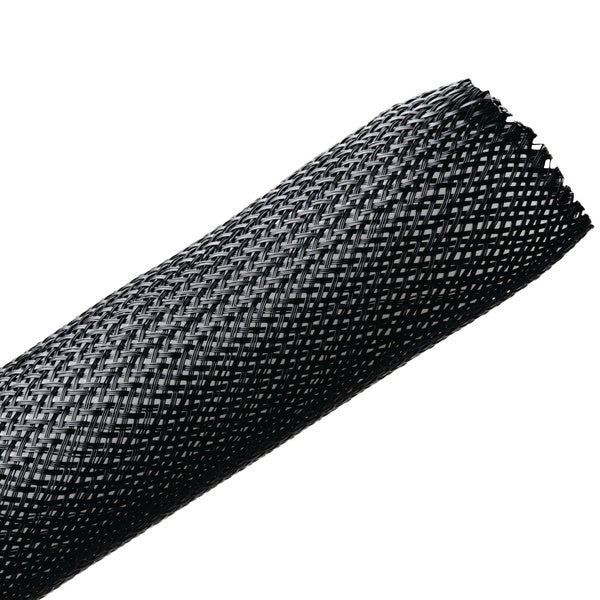

A versatile and economical general purpose sleeving that resists fraying when cut with ordinary scissors. For use in automotive, industrial and computer applications where the wires, cables and hoses being covered endure frequent handling. It is suited for situations where access to a hot knife is either impractical or impossible.
A versatile and economical general purpose sleeving that resists fraying when cut with ordinary scissors. For use in automotive, industrial and computer applications where the wires, cables and hoses being covered endure frequent handling. It is suited for situations where access to a hot knife is either impractical or impossible.
About HellermannTyton: HellermannTyton is a global manufacturer of cable management and identification solutions for automotive, solar, electrical, construction, industrial automation, broadband and other OEM markets. The company's integrated approach to product design, sustainability, production, quality assurance and delivery is optimized to benefit local and global customers. HellermannTyton operates in 39 countries, with North American headquarters in Milwaukee, Wisconsin.
HellermannTyton - 170-03015 - Features

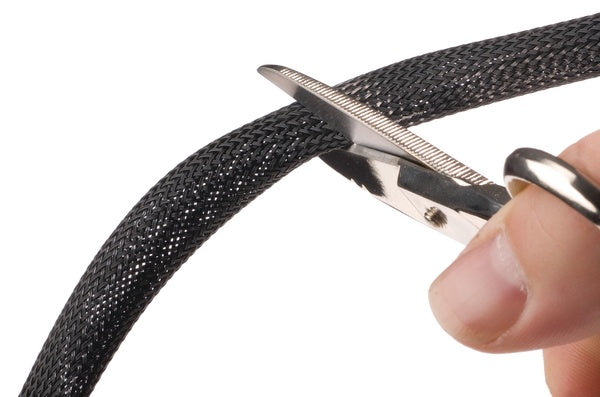

- Cuts with scissors without fraying ends enables field installations without need for hot knife.
- Expands to 150% of easy installation and reduced assembly time requirements.
- Material construction offers excellent abrasion and cut-through protection as well as inertness to common chemicals and fungus.
- Split side is ideal for applications where braided tubing or spiral wrap may be difficult to install.
- Tubing provides full coverage where spiral wrap or other coverings may not be suitable.
- In harsh applications the tubing provides resistance to crushing, impact, and abrasion.
- Tubing offers excellent protection against automotive fluids, vibration wear, water, snow, ice, and the effects of heat, cold, and sunlight on cables and wires.
Specifications
Specifications
HellermannTyton - 170-03015 - Product Categories
- Hardware
- Cable Management
- Tubing
- Routing, Protection and Insulation
- Braided Sleeving - General Purpose
- Braided Sleeving - General Purpose
HellermannTyton - 170-03015 - Specifications
| Brand Name | HellermannTyton |
|---|---|
| Decimal | 1.50 Inch |
| Dual | No |
| Heat Shrink | No Is Not Shrink Tubing |
| Mil Spec | No |
| Material/Type | Pes-Polyester |
| Size By Inch Fractions | 1 1/4 Inch |
| Sleeving | Yes |
| Spiral Wrap | No |
| Ul | No |
| Zipper | No |
| UNSPSC Code | 39131604 |
HellermannTyton - 170-03015 - Base Data
| Article Number | 170-03015 |
|---|---|
| Type | BSPSC1140 |
| Color | Black (BK) |
| Quantity Per | reel |
| Short Description | Braided Sleeving, Expandable, Fray Resistant, 1.25" Dia, PET, Black, 50 ft/reel |
| Global Part Name | BSPSC1140-PET-BK |
HellermannTyton - 170-03015 - Product Dimensions
| Length L (Imperial) | 50 |
|---|---|
| Length L (Metric) | 15.2 |
| Bundle Diameter Min (Imperial) | 1 |
| Bundle Diameter Min (Metric) | 25.4 |
| Bundle Diameter Max (Imperial) | 1.5 |
| Bundle Diameter Max (Metric) | 38.1 |
| Diameter D (Imperial) | 1.25 |
| Diameter D (Metric) | 31.8 |
| Nominal Diameter (Imperial) | 1.25 |
| Nominal Diameter (Metric) | 31.8 |
HellermannTyton - 170-03015 - Logistic & Packaging
| Package Quantity (Imperial) | 50 |
|---|---|
| Package Quantity (Metric) | 15.24 |
| Customs Number | 5.81E+09 |
HellermannTyton - 170-03015 - Materials & Specifications
| Material | Polyester (PET) |
|---|---|
| Material Shortcut | PET |
| Flammability | UL 94 V-0 |
| Halogen Free | Yes |
| UV Resistant (Yes/No) | No |
| Operating Temperature | -94°F to +257°F (-70°C to +125°C) |
| Reach Compliant (Article 33) | Yes |
| ROHS Compliant | Yes |
| UL Recognized (US) | Yes |
