HellermannTyton 170-03073 | Braided Sleeving, Expandable, Flame Ret...
Description
Description

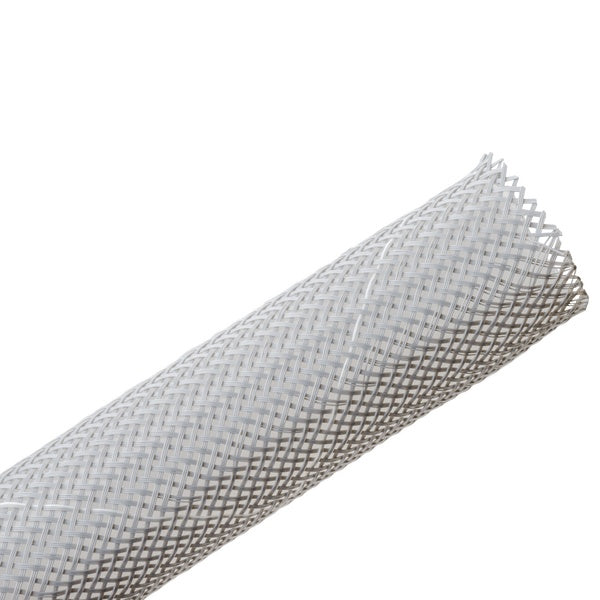

A flame retardant woven (threaded) polyester sleeving that is resistant to cuts and abrasion, and contains a combustion inhibitor allowing it to achieve a UL and CSA flame resistance rating of VW-1. Contains white tracer thread for easy identification.
A flame retardant woven (threaded) polyester sleeving that is resistant to cuts and abrasion, and contains a combustion inhibitor allowing it to achieve a UL and CSA flame resistance rating of VW-1. Contains white tracer thread for easy identification.
About HellermannTyton: HellermannTyton is a global manufacturer of cable management and identification solutions for automotive, solar, electrical, construction, industrial automation, broadband and other OEM markets. The company's integrated approach to product design, sustainability, production, quality assurance and delivery is optimized to benefit local and global customers. HellermannTyton operates in 39 countries, with North American headquarters in Milwaukee, Wisconsin.
HellermannTyton - 170-03073 - Features
- Treated polyester material contains a combustion inhibitor for use in applications where flame retardancy is required.
- Braided design allows sleeving to expand by 150% to accommodate variations in wire bundle and eases installation.
Specifications
Specifications
HellermannTyton - 170-03073 - Product Categories
- Hardware
- Cable Management
- Tubing
- Routing, Protection and Insulation
- Braided Sleeving - General Purpose
- Braided Sleeving - Flame Retardant
HellermannTyton - 170-03073 - Specifications
| Brand Name | HellermannTyton |
|---|---|
| Decimal | .750 Inch |
| Dual | No |
| Heat Shrink | No Is Not Shrink Tubing |
| Mil Spec | No |
| Material/Type | Pes-Polyester |
| Size By Inch Fractions | 1/2 Inch |
| Sleeving | Yes |
| Spiral Wrap | No |
| Ul | No |
| Zipper | No |
| UNSPSC Code | 39131604 |
HellermannTyton - 170-03073 - Base Data
| Article Number | 170-03073 |
|---|---|
| Type | BSPFR128 |
| Color | Gray (GY) |
| Quantity Per | reel |
| Short Description | Braided Sleeving, Expandable, Flame Retardant, 0.5" Dia, PET, Gray, 100 ft/reel |
| Global Part Name | BSPFR128-PET-GY |
HellermannTyton - 170-03073 - Product Dimensions
| Length L (Imperial) | 100 |
|---|---|
| Length L (Metric) | 30.48 |
| Bundle Diameter Min (Imperial) | 0.25 |
| Bundle Diameter Min (Metric) | 6.4 |
| Bundle Diameter Max (Imperial) | 0.75 |
| Bundle Diameter Max (Metric) | 19.1 |
| Diameter D (Imperial) | 0.5 |
| Diameter D (Metric) | 12.7 |
| Nominal Diameter (Imperial) | 0.5 |
| Nominal Diameter (Metric) | 12.7 |
HellermannTyton - 170-03073 - Logistic & Packaging
| Package Quantity (Imperial) | 100 |
|---|---|
| Package Quantity (Metric) | 30.48 |
| Customs Number | 5.81E+09 |
HellermannTyton - 170-03073 - Materials & Specifications
| Material | Polyester (PET) |
|---|---|
| Material Shortcut | PET |
| Flammability | Mil-202FAR 25FMVSS 302UL 224 VW-1 |
| Halogen Free | Yes |
| UV Resistant (Yes/No) | No |
| Operating Temperature | -94°F to +257°F (-70°C to +125°C) |
| Reach Compliant (Article 33) | Yes |
| ROHS Compliant | Yes |
| Certification/Specification | UL 94 VW-1 |
| UL Recognized (US) | Yes |
