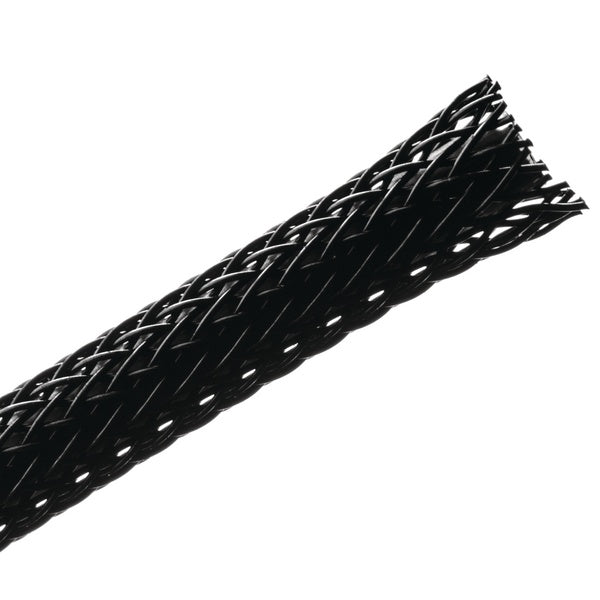

HellermannTyton 170-03177 | Braided Sleeving, Expandable, 0.125" Dia, Pet, Black, 225 Ft/Reel
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
HellermannTyton 170-03177 | Braided Sleeving, Expandable, 0.125&quo...
Description
Description
Designed to adjust and expand to irregular shapes, this general purpose sleeving is lightweight and offers a high tensile strength while still maintaining flexibility. This sleeving is an excellent choice for protecting wire and cable bundles from abra sion, chafing and heat degradation. Commonly used in electrial and industrial wire harnessing application where economy and durability are required for the protection of wires, cables, tubing, bundles and pneumatic hoses.
Designed to adjust and expand to irregular shapes, this general purpose sleeving is lightweight and offers a high tensile strength while still maintaining flexibility. This sleeving is an excellent choice for protecting wire and cable bundles from abrasion, chafing and heat degradation. Commonly used in electrial and industrial wire harnessing application where economy and durability are required for the protection of wires, cables, tubing, bundles and pneumatic hoses.
About HellermannTyton: HellermannTyton is a global manufacturer of cable management and identification solutions for automotive, solar, electrical, construction, industrial automation, broadband and other OEM markets. The company's integrated approach to product design, sustainability, production, quality assurance and delivery is optimized to benefit local and global customers. HellermannTyton operates in 39 countries, with North American headquarters in Milwaukee, Wisconsin.
HellermannTyton - 170-03177 - Features
- Weave construction adjusts to twisting and flexing without creating wrinkles or bends.
- Durable construction offers excellent abrasion and cut-through resistance as well as inertness to most chemicals and fungus.
- Color options available to provide easy visual and safety identification of critical wiring components.
- Expands to 150% of nominal diameter for fast, easy installation.
- Self extinguishing material does not melt and is unaffected by most acids, and provides excellent thermal stability against direct flame.
- Provides excellent thermal stability.
- Meets FMVSS 302 specifications for use in automotive engineering.
- Material cuts with ordinary scissors which reduces assembly time.
Specifications
Specifications
HellermannTyton - 170-03177 - Product Categories
- Hardware
- Cable Management
- Tubing
- Routing, Protection and Insulation
- Braided Sleeving - General Purpose
- Braided Sleeving - General Purpose
HellermannTyton - 170-03177 - Specifications
| Brand Name | HellermannTyton |
|---|---|
| Decimal | .250 Inch |
| Dual | No |
| Heat Shrink | No Is Not Shrink Tubing |
| Mil Spec | No |
| Material/Type | Pes-Polyester |
| Size By Inch Fractions | 1/8 Inch |
| Sleeving | Yes |
| Spiral Wrap | No |
| Ul | No |
| Zipper | No |
| UNSPSC Code | 39131604 |
HellermannTyton - 170-03177 - Base Data
| Article Number | 170-03177 |
|---|---|
| Type | BSP180 |
| Color | Black (BK) |
| Quantity Per | reel |
| Short Description | Braided Sleeving, Expandable, 0.125" Dia, PET, Black, 225 ft/reel |
| Global Part Name | BSP180-PET-BK |
HellermannTyton - 170-03177 - Product Dimensions
| Length L (Imperial) | 225 |
|---|---|
| Length L (Metric) | 68.6 |
| Bundle Diameter Min (Imperial) | 0.094 |
| Bundle Diameter Min (Metric) | 2.4 |
| Bundle Diameter Max (Imperial) | 0.25 |
| Bundle Diameter Max (Metric) | 6.4 |
| Diameter D (Imperial) | 0.25 |
| Diameter D (Metric) | 6.4 |
| Nominal Diameter (Imperial) | 0.125 |
| Nominal Diameter (Metric) | 3.18 |
HellermannTyton - 170-03177 - Logistic & Packaging
| Package Quantity (Imperial) | 225 |
|---|---|
| Package Quantity (Metric) | 68.58 |
| Customs Number | 5.81E+09 |
HellermannTyton - 170-03177 - Materials & Specifications
| Material | Polyester (PET) |
|---|---|
| Material Shortcut | PET |
| Flammability | FAR 25FMVSS 302UL 94 V-0 |
| Halogen Free | Yes |
| UV Resistant (Yes/No) | No |
| Operating Temperature | -94°F to +257°F (-70°C to +125°C) |
| Reach Compliant (Article 33) | Yes |
| ROHS Compliant | Yes |
| UL Recognized (US) | Yes |
