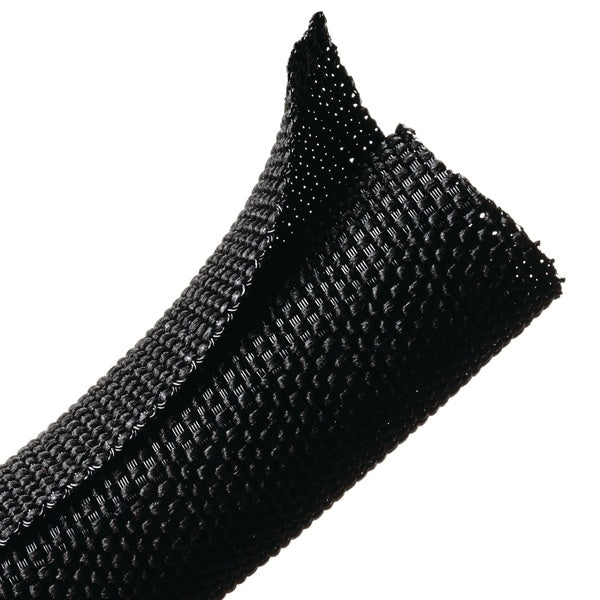

HellermannTyton 170-03184 | Braided Sleeving, Split Wrap Woven, 3/4" Dia, Pet, Black, 150 Ft/Bulk Reel
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Description
Description
A lateral split, semi-rigid and flame retardant braided sleeving configuration used when ease of installation and repeat access to wire bundle is required. The lateral split allows the sleeving to open and accommodate a variety of bundling requirements . The 25% edge overlap rolls back over connectors and splices without exposing the bundled wires. More flexible than spiral wraps or convoluted tubing, this product is a fast and easy option for adding protection in post-assembly or post-installation a pplications.
Split Wrap Woven Sleeving is a self-closing sleeving manufactured from a unique blend of monofilament and multifilament polyester fibers that resemble a tightly woven material. The wrap around design provides increased flexibility, better coverage and greater resistance from abrasion for wires, cables and assemblies. Can also be used to reduce noise in applications that involve movement, while protecting sensitive electronics and communication systems from dust and debris.
About HellermannTyton: HellermannTyton is a global manufacturer of cable management and identification solutions for automotive, solar, electrical, construction, industrial automation, broadband and other OEM markets. The company's integrated approach to product design, sustainability, production, quality assurance and delivery is optimized to benefit local and global customers. HellermannTyton operates in 39 countries, with North American headquarters in Milwaukee, Wisconsin.
HellermannTyton - 170-03184 - Features
- Split wrap design needs no fasteners and installs quickly, saving assembly time and future accessibility without disassembly.
- Bends to a tight radius without distortion or splitting open.
- Unique construction retains shape and rigidity throughout unrolling.
- Easy open design allows quick access and ability to apply protective sleeving post assembly or post installation situations.
Specifications
Specifications
HellermannTyton - 170-03184 - Product Categories
- Hardware
- Cable Management
- Tubing
- Routing, Protection and Insulation
- Braided Sleeving - General Purpose
- Braided Sleeving - Wraps
HellermannTyton - 170-03184 - Specifications
| Brand Name | HellermannTyton |
|---|---|
| Decimal | .750 Inch |
| Dual | No |
| Heat Shrink | No Is Not Shrink Tubing |
| Mil Spec | No |
| Material/Type | Pes-Polyester |
| Size By Inch Fractions | 3/4 Inch |
| Sleeving | Yes |
| Spiral Wrap | No |
| Ul | No |
| Zipper | No |
| UNSPSC Code | 39131604 |
HellermannTyton - 170-03184 - Base Data
| Article Number | 170-03184 |
|---|---|
| Type | BSSWV340B |
| Color | Black (BK) |
| Quantity Per | reel |
| Short Description | Braided Sleeving, Split Wrap Woven, 3/4" Dia, PET, Black, 150 ft/bulk reel |
| Global Part Name | BSSWV340B-PET-BK |
HellermannTyton - 170-03184 - Product Dimensions
| Length L (Imperial) | 150 |
|---|---|
| Length L (Metric) | 45.7 |
| Bundle Diameter Min (Imperial) | 0.1 |
| Bundle Diameter Min (Metric) | 2.54 |
| Bundle Diameter Max (Imperial) | 0.75 |
| Bundle Diameter Max (Metric) | 19.1 |
| Diameter D (Imperial) | 0.75 |
| Diameter D (Metric) | 19.1 |
| Nominal Diameter (Imperial) | 0.75 |
| Nominal Diameter (Metric) | 19.1 |
| Wall Thickness WT (Imperial) | 0.027 |
| Wall Thickness WT (Metric) | 0.68 |
HellermannTyton - 170-03184 - Logistic & Packaging
| Package Quantity (Imperial) | 150 |
|---|---|
| Package Quantity (Metric) | 45.7 |
| Customs Number | 5.81E+09 |
HellermannTyton - 170-03184 - Materials & Specifications
| Material | Polyester (PET) |
|---|---|
| Material Shortcut | PET |
| Flammability | UL 94 V-0 |
| Halogen Free | Yes |
| UV Resistant (Yes/No) | No |
| Operating Temperature | -94°F to +257°F (-70°C to +125°C) |
| Reach Compliant (Article 33) | Yes |
| ROHS Compliant | Yes |
