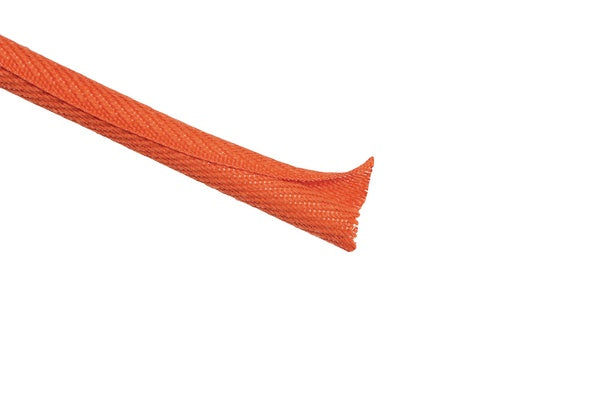

HellermannTyton 170-03230 | Braided Sleeving, Woven Convoluted Wrap, 3/8 Dia, PET, Orange, 150.0 ft/reel
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
HellermannTyton 170-03230 | Braided Sleeving, Woven Convoluted Wrap...
Description
Description

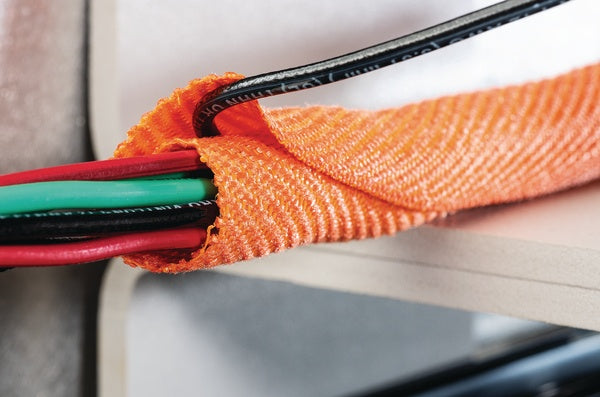

This split, wrap-around style woven convoluted sleeving utilizes a unique elastic construction for added flexibility and abrasion resistance. The overlapping design creates material memory allowing the sleeve to quickly roll back over connectors and sp lices without exposing bundled cabling.
This split, wrap-around style woven convoluted sleeving utilizes a unique elastic construction for added flexibility and abrasion resistance. The overlapping design creates material memory allowing the sleeve to quickly roll back over connectors and splices without exposing bundled cabling.
About HellermannTyton: HellermannTyton is a global manufacturer of cable management and identification solutions for automotive, solar, electrical, construction, industrial automation, broadband and other OEM markets. The company's integrated approach to product design, sustainability, production, quality assurance and delivery is optimized to benefit local and global customers. HellermannTyton operates in 39 countries, with North American headquarters in Milwaukee, Wisconsin.
HellermannTyton - 170-03230 - Features
- Self-wrapping feature allows easy installation and future access to wire and cables.
- Unique blend and construction using monofilament and mutifilament strands provide flexibility, high coverage and abrasion resistance.
- Extra overlapping design keeps wires contained even in tight bend conditions.
- Patented retention design on clip features inverted retaining legs, narrow opening and circular retainer to prevent inadvertent disengagement.
- Controlled flex and angled entry promote easy installation.
- Independent rotation allows for adjustable routing orientation.
- Cable tie accommodates wide range of secondary bundle sizes.
Specifications
Specifications
HellermannTyton - 170-03230 - Product Categories
- Hardware
- Cable Management
- Tubing
- Routing, Protection and Insulation
- Braided Sleeving - General Purpose
- Braided Sleeving - Wraps
HellermannTyton - 170-03230 - Specifications
| Brand Name | HellermannTyton |
|---|---|
| Heat Shrink | No Is Not Shrink Tubing |
| Material/Type | Fabric-Woven Fabric |
| Size By Inch Fractions | 3/8 Inch |
| Sleeving | Yes |
| UNSPSC Code | 39131602 |
HellermannTyton - 170-03230 - Base Data
| Article Number | 170-03230 |
|---|---|
| Type | BSPW380 |
| Color | Orange (OG) |
| Quantity Per | reel |
| Short Description | Braided Sleeving, Woven Convoluted Wrap, 3/8" Dia, PET, Orange, 150.0 ft/reel |
| Global Part Name | BSPW380-PET-OG |
HellermannTyton - 170-03230 - Product Dimensions
| Length L (Imperial) | 150 |
|---|---|
| Length L (Metric) | 45.7 |
| Bundle Diameter Min (Imperial) | 0.098 |
| Bundle Diameter Min (Metric) | 2.5 |
| Bundle Diameter Max (Imperial) | 0.38 |
| Bundle Diameter Max (Metric) | 9.53 |
| Diameter D (Imperial) | 0.375 |
| Diameter D (Metric) | 10 |
| Nominal Diameter (Imperial) | 0.394 |
| Nominal Diameter (Metric) | 10 |
| Wall Thickness WT (Imperial) | 0.027 |
| Wall Thickness WT (Metric) | 0.7 |
HellermannTyton - 170-03230 - Logistic & Packaging
| Package Quantity (Imperial) | 150 |
|---|---|
| Package Quantity (Metric) | 45.7 |
| Customs Number | 5.81E+09 |
HellermannTyton - 170-03230 - Materials & Specifications
| Material | Polyester (PET) |
|---|---|
| Material Shortcut | PET |
| Flammability | FMVSS 302UL 94 V-0 |
| Halogen Free | No |
| UV Resistant (Yes/No) | No |
| Operating Temperature | -94°F to +302°F (-70°C to +150°C) |
| Reach Compliant (Article 33) | No |
| ROHS Compliant | Yes |
Documents and Downloads
Documents and Downloads
