HellermannTyton 181-00580 | Slotted Wall Wiring Duct, 2" X 1&q...
Description
Description

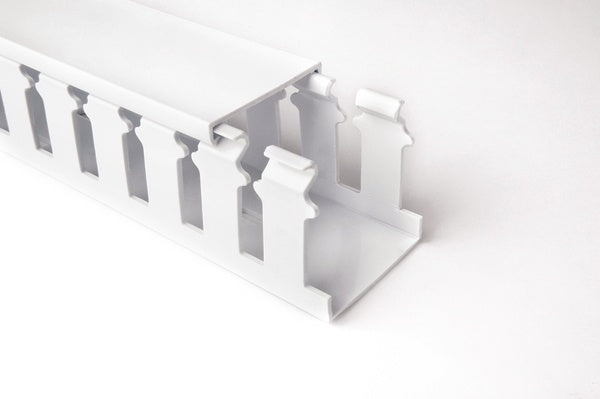

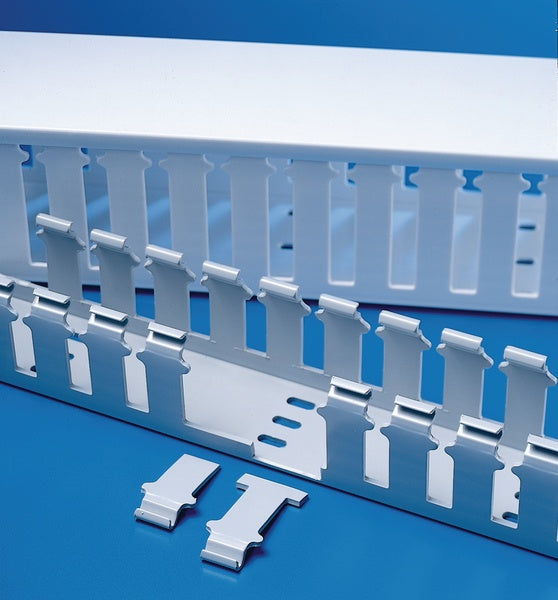

HellermannTyton Slotted Wall Duct features breakaway fingers that provide additional access for wire leads. Each section of the duct is provided with two score lines. The upper score line is used to break away fingers when a wider opening is required. The lower score line allows the sidewall to be smoothly cut for joints and Ts. Pressure-sensitive, rubber-based adhesive backing aids in temporary positioning.
HellermannTyton Slotted Wall Duct features breakaway fingers that provide additional access for wire leads. Each section of the duct is provided with two score lines. The upper score line is used to break away fingers when a wider opening is required. The lower score line allows the sidewall to be smoothly cut for joints and Ts. Pressure-sensitive, rubber-based adhesive backing aids in temporary positioning.
About HellermannTyton: HellermannTyton is a global manufacturer of cable management and identification solutions for automotive, solar, electrical, construction, industrial automation, broadband and other OEM markets. The company's integrated approach to product design, sustainability, production, quality assurance and delivery is optimized to benefit local and global customers. HellermannTyton operates in 39 countries, with North American headquarters in Milwaukee, Wisconsin.
HellermannTyton - 181-00580 - Features
- Strong fingers prevent unintended breaking.
- Fingers are easily deflected outward, allowing easier positioning of the wires.
- Restricted opening prevents unintended removal of wires and permits any individual wire to be traced without disconnection.
- Nonermanent adhesive allows repositioning prior to final installation.
- Optional covers snap on and off easily, and their nonslip lining ensures they stay in place even under vibration.
- One-piece ratchet closure allows for easy installation during pre- or final assembly.
- Easy release feature simplifies quick adjustments and maintenance.
- Impact modified, heat and UV stabilized PA66 provides long-term durability, indoors and out.
- Stainless-steel mounting plate tolerates high torque and provides superior corrosion resistance against chemicals, salt spray and contact with dissimilar metals.
- Angled mounting plates are ideal for stacking RPCs or for avoiding obstructions or heat sources.
Specifications
Specifications
HellermannTyton - 181-00580 - Product Categories
- Hardware
- Cable Management
- Cable Runway
- Routing, Protection and Insulation
- Wiring Duct
- Slotted Wall Duct and Covers
HellermannTyton - 181-00580 - Specifications
| Brand Name | HellermannTyton |
|---|---|
| Components | Slotted Duct Standard |
| Finish | White |
| Material | Pvc |
| Type | Cable Routing / Wiring Duct |
| UNSPSC Code | 39131712 |
HellermannTyton - 181-00580 - Base Data
| Article Number | 181-00580 |
|---|---|
| Type | SLA2X1 |
| Color | White (WH) |
| Quantity Per | carton |
| Short Description | Slotted Wall Wiring Duct, 2" x 1", Adhesive, PVC, White, 120ft/Carton |
| Global Part Name | SLA2X1-PVC-WH |

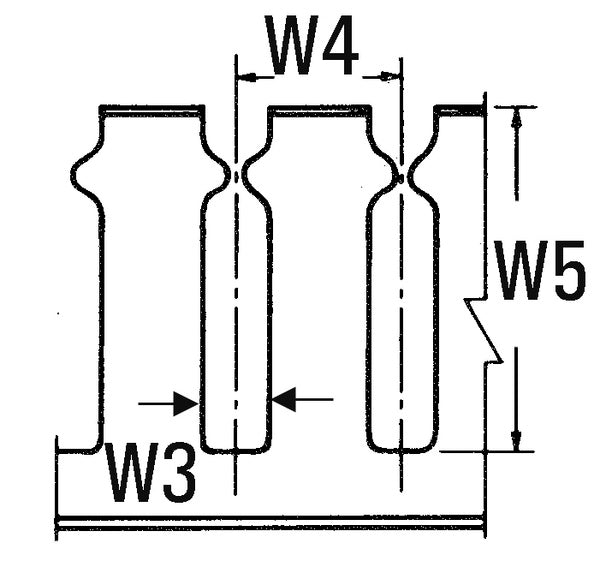

HellermannTyton - 181-00580 - Product Dimensions
| Length L (Imperial) | 6 |
|---|---|
| Length L (Metric) | 1.83 |
| Fixation Method | Adhesive |
| Width W (Imperial) | 2 |
| Width W (Metric) | 50.8 |
| Height H (Imperial) | 1.06 |
| Height H (Metric) | 26.9 |
| Mounting Hole Centers (Imperial) | 4 |
HellermannTyton - 181-00580 - Logistic & Packaging
| Package Quantity (Imperial) | 120 |
|---|---|
| Package Quantity (Metric) | 36.58 |
| Customs Number | 3.93E+09 |
HellermannTyton - 181-00580 - Materials & Specifications
| Material | Polyvinylchloride (PVC) |
|---|---|
| Material Shortcut | PVC |
| Halogen Free | No |
| UV Resistant (Yes/No) | No |
| Operating Temperature | +122°F (+50°C) |
| Reach Compliant (Article 33) | No |
| ROHS Compliant | Yes |
| Certification/Specification | EN 50085-2-3_1AEN 50085-1:2005 + A1:2013ULCSA |
| UL Recognized (US) | Yes |
