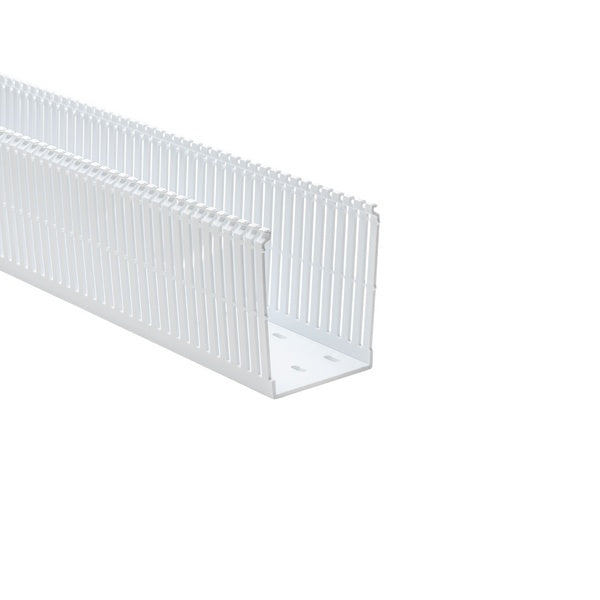

HellermannTyton 181-00669 | High Density Slotted Wall Wiring Duct, 4" X 5", Adhesive, Pvc, White, 60Ft/Carton
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
HellermannTyton 181-00669 | High Density Slotted Wall Wiring Duct, ...
Description
Description
Pro-Duct high density, slotted wall, wiring duct features narrow fingers, equaling a 2 to 1 finger ratio compared to standard slotted wiring duct. With the narrow fingers, compact designs and components are more easily accommodated.
HellermannTyton High-Density Slotted Wall Wiring Duct features narrow fingers equaling a 2-to-1 finger ratio compared to standard slotted wiring duct. With the narrow fingers, compact designs and components are more easily accommodated.
About HellermannTyton: HellermannTyton is a global manufacturer of cable management and identification solutions for automotive, solar, electrical, construction, industrial automation, broadband and other OEM markets. The company's integrated approach to product design, sustainability, production, quality assurance and delivery is optimized to benefit local and global customers. HellermannTyton operates in 39 countries, with North American headquarters in Milwaukee, Wisconsin.
HellermannTyton - 181-00669 - Features
- Narrow fingers reduce fanning of the wires to the terminal blocks, presenting a neater appearance.
- Each finger is provided with a double restriction to hold wires in the bottom portion of the duct, allowing for easier installation.
- Mounting holes are uniform in size to the solid and slotted wall duct, but are offered every 2 inches to accommodate compact designs and ease installation.
- Strong fingers prevent unwanted breaking.
- Restricted opening prevents unintended removal of wires and permits any individual wire to be traced without disconnection.
- Supplied with mounting holes to streamline installation.
- Optional covers enhance protection and appearance.
Specifications
Specifications
HellermannTyton - 181-00669 - Product Categories
- Hardware
- Cable Management
- Cable Runway
- Routing, Protection and Insulation
- Wiring Duct
- High Density Slotted Duct and Covers
HellermannTyton - 181-00669 - Specifications
| Brand Name | HellermannTyton |
|---|---|
| Components | Solid Duct |
| Finish | White |
| Material | Pvc |
| Type | Cable Routing / Wiring Duct |
| UNSPSC Code | 39131712 |
HellermannTyton - 181-00669 - Base Data
| Article Number | 181-00669 |
|---|---|
| Type | SLHDA4X5 |
| Color | White (WH) |
| Quantity Per | carton |
| Short Description | High Density Slotted Wall Wiring Duct, 4" x 5", Adhesive, PVC, White, 60ft/Carton |
| Global Part Name | SLHDA4X5-PVC-WH |
HellermannTyton - 181-00669 - Product Dimensions
| Length L (Imperial) | 6 |
|---|---|
| Length L (Metric) | 1.83 |
| Fixation Method | Adhesive |
| Width W (Imperial) | 4 |
| Width W (Metric) | 101.6 |
| Height H (Imperial) | 5.07 |
| Height H (Metric) | 128.8 |
| Mounting Hole Centers (Imperial) | 2 |
HellermannTyton - 181-00669 - Logistic & Packaging
| Package Quantity (Imperial) | 60 |
|---|---|
| Package Quantity (Metric) | 18.3 |
| Customs Number | 3.93E+09 |
HellermannTyton - 181-00669 - Materials & Specifications
| Material | Polyvinylchloride (PVC) |
|---|---|
| Material Shortcut | PVC |
| Halogen Free | No |
| UV Resistant (Yes/No) | No |
| Operating Temperature | +122°F (+50°C) |
| Reach Compliant (Article 33) | No |
| ROHS Compliant | Yes |
| Certification/Specification | CSAULEN 50085-2-3_1AEN 50085-1:2005 + A1:2013 |
| UL Recognized (US) | Yes |
