HellermannTyton 181-00684 | Universal Wiring Duct Mount, Pa66V0, Bl...
Description
Description

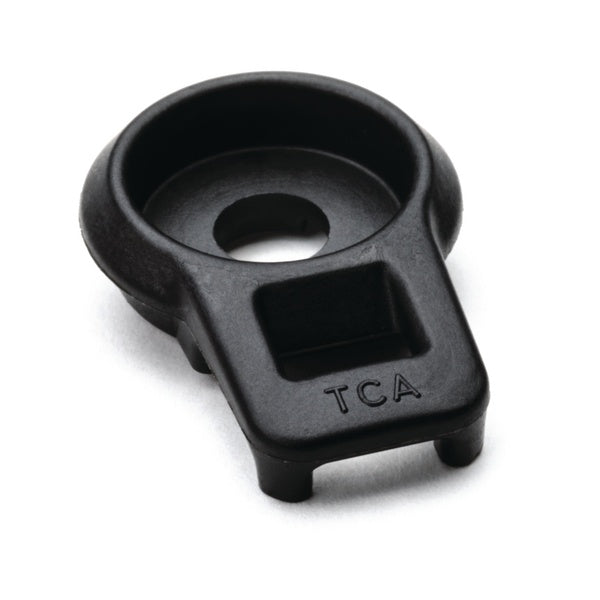

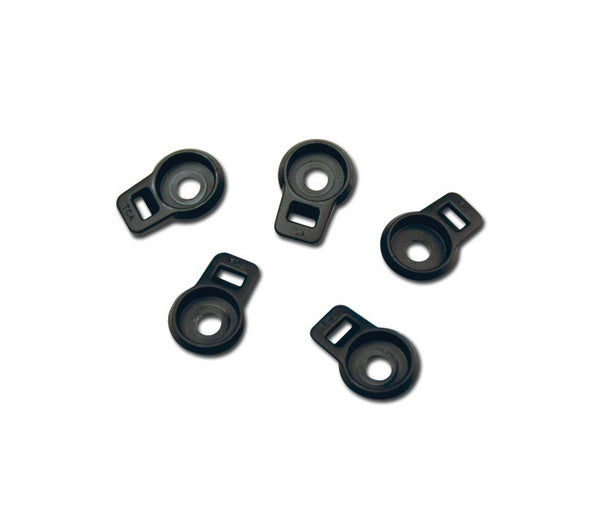

The HellermannTyton universal wiring duct mount is a multi-purpose mount that secures duct dividers or secures wire bundles inside the duct with a cable tie. The mount can be installed with duct panel rivets or mechanical fasteners. The bottom of the m ount has locator tabs that fit into the duct mounting holes, preventing the mount from spinning during installation.
The HellermannTyton universal wiring duct mount is a multi-purpose mount that secures duct dividers or secures wire bundles inside the duct with a cable tie. The mount can be installed with duct panel rivets or mechanical fasteners. The bottom of the mount has locator tabs that fit into the duct mounting holes, preventing the mount from spinning during installation.
About HellermannTyton: HellermannTyton is a global manufacturer of cable management and identification solutions for automotive, solar, electrical, construction, industrial automation, broadband and other OEM markets. The company's integrated approach to product design, sustainability, production, quality assurance and delivery is optimized to benefit local and global customers. HellermannTyton operates in 39 countries, with North American headquarters in Milwaukee, Wisconsin.
HellermannTyton - 181-00684 - Features
- Tabs align the mount for easy divider installation.
- Top of the mount creates separation between wires and the fastener head which protects the wires from abrasion.
- When used as a duct divider mount, the divider snaps or slides over the mount resulting in a quick, secure installation.

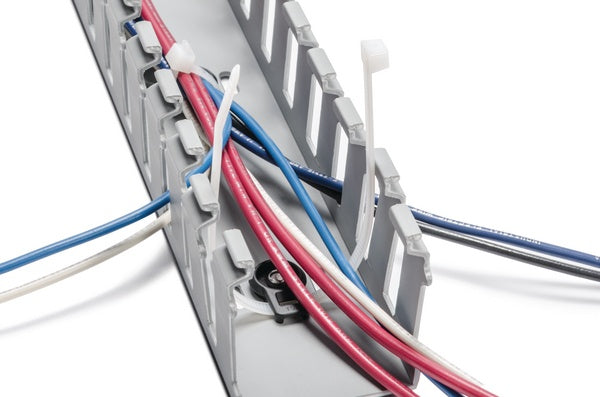

- When used as a wire bundle mount, simply slide the cable tie through any of the four-way tie slots to secure the bundle and prevent the cables from falling outside during installation and cover removal.
- Strong fingers prevent unwanted breaking.
- Restricted opening prevents unintended removal of wires and permits any individual wire to be traced without disconnection.
- Supplied with mounting holes to streamline installation.
- Optional covers enhance protection and appearance.
Specifications
Specifications
HellermannTyton - 181-00684 - Product Categories
- Hardware
- Cable Management
- Cable Runway
- Routing, Protection and Insulation
- Wiring Duct
- Duct Dividers
HellermannTyton - 181-00684 - Specifications
| Brand Name | HellermannTyton |
|---|---|
| Components | Slotted Duct Standard |
| Finish | Black |
| Material | Plastic |
| Type | Cable Routing / Wiring Duct |
| UNSPSC Code | 39131713 |
HellermannTyton - 181-00684 - Base Data
| Article Number | 181-00684 |
|---|---|
| Type | DVM |
| Color | Black (BK) |
| Quantity Per | bag |
| Short Description | Universal Wiring Duct Mount, PA66V0, Black, 100/pkg |
| Global Part Name | DVM-PA66V0-BK |
HellermannTyton - 181-00684 - Product Dimensions
| Package Quantity (Imperial) | 100 |
|---|---|
| Package Quantity (Metric) | 100 |
| Customs Number | 3.93E+09 |
HellermannTyton - 181-00684 - Logistic & Packaging
| Material | Polyamide 6.6 V0 (PA66V0) |
|---|---|
| Material Shortcut | PA66V0 |
| Flammability | UL 94 V-0 |
| Halogen Free | No |
| UV Resistant (Yes/No) | No |
| Operating Temperature | -40°F to +230°F (-40°C to +110°C) |
| Reach Compliant (Article 33) | No |
| ROHS Compliant | Yes |
HellermannTyton - 181-00684 - Videos
| HellermannTyton 181-00684 Video URL | Click to View |
|---|
