HellermannTyton 181-22017 | Solid Wall Wiring Duct, 2" X 2", Adhesive, Pvc, White, 30Ft/Box
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
HellermannTyton 181-22017 | Solid Wall Wiring Duct, 2" X 2&quo...
Description
Description

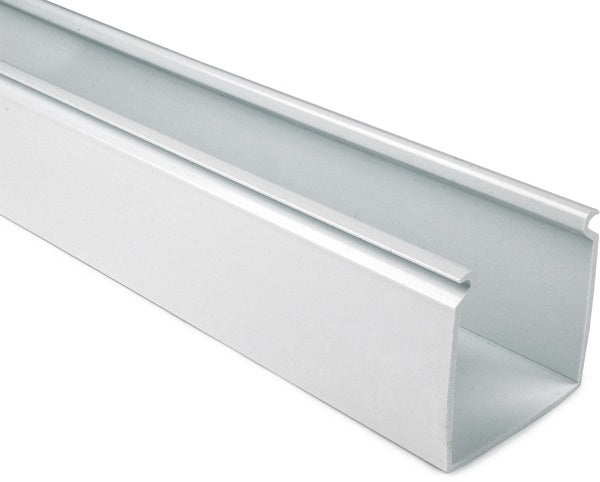

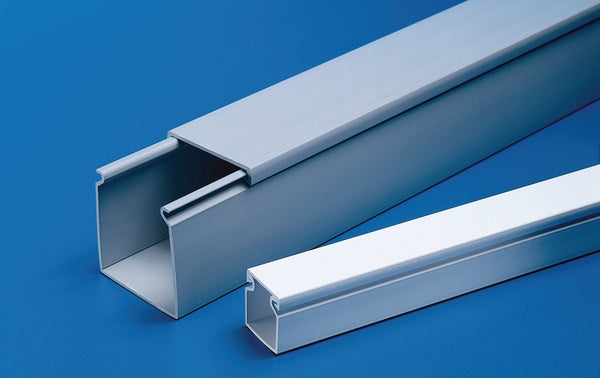

HellermannTyton Solid Wall Duct efficiently routes and protects wire. It is designed for straight wire runs where break-outs are not required. Manufactured from high impact, rigid PVC, it comes in six-foot lengths. Pressure-sensitive, rubber-based adhe sive backing aids in temporary positioning.
HellermannTyton Solid Wall Wiring Duct efficiently routes and protects wire. Solid wall wiring duct is designed for straight wire runs where breakouts are not required. Solid wall wiring duct is manufactured from high-impact, rigid PVC; comes in standard colors of white, gray and black; and is available in 6-foot lengths.
About HellermannTyton: HellermannTyton is a global manufacturer of cable management and identification solutions for automotive, solar, electrical, construction, industrial automation, broadband and other OEM markets. The company's integrated approach to product design, sustainability, production, quality assurance and delivery is optimized to benefit local and global customers. HellermannTyton operates in 39 countries, with North American headquarters in Milwaukee, Wisconsin.
HellermannTyton - 181-22017 - Features
- Solid wall construction provides excellent coverage to keep wires clean.
- Durable material protects wires from damage, with long-lasting performance.
- Standard colors complement or contrast light and dark environments.
- Nonpermanent adhesive allows repostioning prior to final installation.
- Optional covers snap on and off easily, and their nonslip lining ensures they stay in place even under vibration.
- Strong fingers prevent unwanted breaking.
- Restricted opening prevents unintended removal of wires and permits any individual wire to be traced without disconnection.
- Supplied with mounting holes to streamline installation.
- Optional covers enhance protection and appearance.
Specifications
Specifications
HellermannTyton - 181-22017 - Product Categories
- Hardware
- Cable Management
- Cable Runway
- Routing, Protection and Insulation
- Wiring Duct
- Solid Wall Duct and Covers
HellermannTyton - 181-22017 - Specifications
| Brand Name | HellermannTyton |
|---|---|
| Components | Solid Duct |
| Finish | White |
| Material | Pvc |
| Type | Cable Routing / Wiring Duct |
| UNSPSC Code | 39131712 |
HellermannTyton - 181-22017 - Base Data
| Article Number | 181-22017 |
|---|---|
| Type | SDA2X2 |
| Color | White (WH) |
| Quantity Per | box |
| Short Description | Solid Wall Wiring Duct, 2" x 2", Adhesive, PVC, White, 30ft/Box |
| Global Part Name | SDA2X2-PVC-WH |

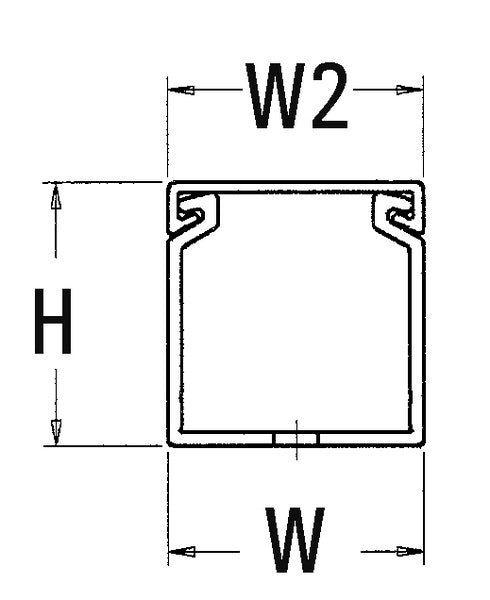

HellermannTyton - 181-22017 - Product Dimensions
| Length L (Imperial) | 6 |
|---|---|
| Length L (Metric) | 1.83 |
| Width W (Imperial) | 2 |
| Width W (Metric) | 50.8 |
| Height H (Imperial) | 2.07 |
| Height H (Metric) | 52.6 |

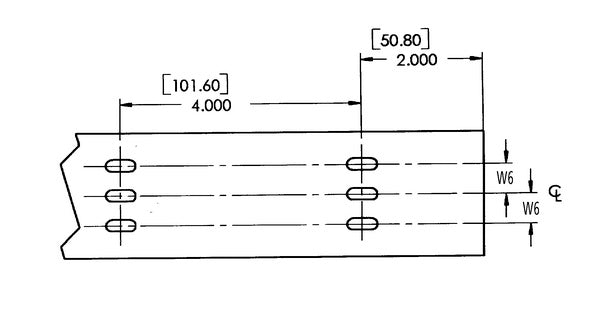

| Mounting Hole Centers (Imperial) | 4 |
HellermannTyton - 181-22017 - Logistic & Packaging
| Package Quantity (Imperial) | 30 |
|---|---|
| Package Quantity (Metric) | 9.14 |
| Customs Number | 3.93E+09 |
HellermannTyton - 181-22017 - Materials & Specifications
| Material | Polyvinylchloride (PVC) |
|---|---|
| Material Shortcut | PVC |
| Halogen Free | No |
| UV Resistant (Yes/No) | No |
| Operating Temperature | +122°F (+50°C) |
| Reach Compliant (Article 33) | No |
| ROHS Compliant | Yes |
| Certification/Specification | CSAEN 50085-2-3_1AEN 50085-1:2005 + A1:2013UL |
| UL Recognized (US) | Yes |
