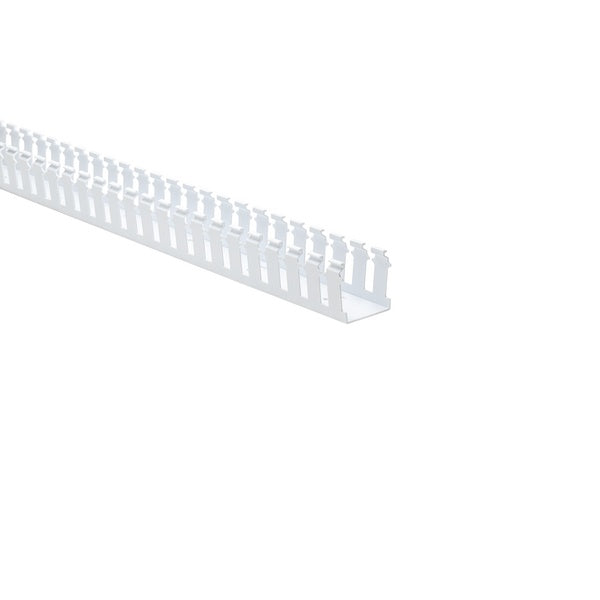

HellermannTyton 181-22027 | Slotted Wall Wiring Duct, 2" x 2", Non-Adhesive, PVC, White, 30ft/Box
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
HellermannTyton 181-22027 | Slotted Wall Wiring Duct, 2" x 2&q...
Description
Description

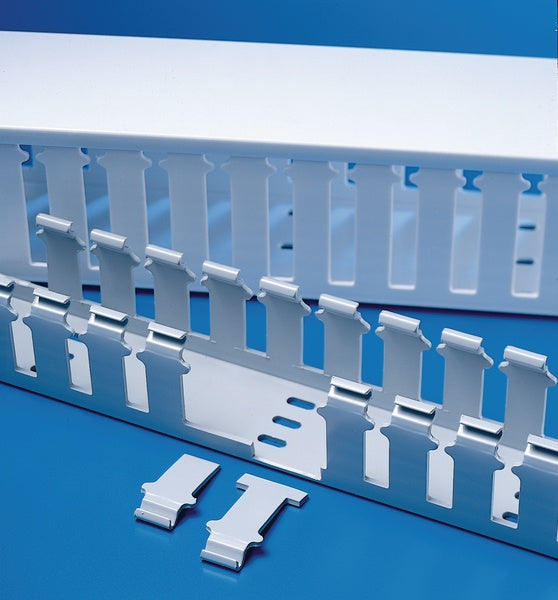

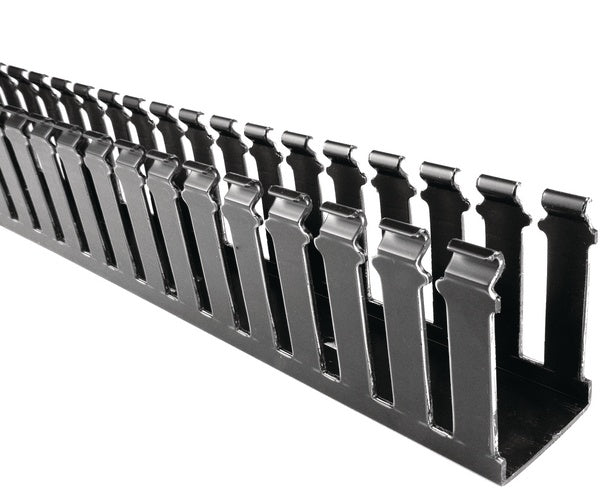

Pro-Duct slotted wall wiring duct features break-away fingers which provide additional access for wire leads. Each section of the duct is provided with two score lines. The upper score line is used to break away fingers when a greater opening is requir ed. The lower score line allows the sidewall to be smoothly cut for joints and Ts.
HellermannTyton Slotted Wall Wiring Duct features break-away fingers that provide additional access for wire leads. Each section of the duct is provided with two score lines. The upper score line is used to break away fingers when a greater opening is required. The lower score line allows the sidewall to be smoothly cut for joints and T’s.
About HellermannTyton: HellermannTyton is a global manufacturer of cable management and identification solutions for automotive, solar, electrical, construction, industrial automation, broadband and other OEM markets. The company's integrated approach to product design, sustainability, production, quality assurance and delivery is optimized to benefit local and global customers. HellermannTyton operates in 39 countries, with North American headquarters in Milwaukee, Wisconsin.
HellermannTyton - 181-22027 - Features
- Strong fingers prevent unwanted breaking.
- Fingers are easily deflected outward, allowing ready positioning of the wires within the slotted wall duct.
- Restricted opening design in the finger of the duct helps keep wires in place.
- Restricted opening revents unintended removal of wires and permits any individual wire to be traced without disconnection.
- Supplied with mounting holes to streamline installation.
- Optional covers enhance protection and appearance.
- Ribbons are resin based for the best print durability
- Ribbons are available to fit all HellermannTyton printers for easy resupply
- Ribbons are available in colors for maximizing design printing capabilities
- Ribbons meet UL recognition and Military standard where applicable to meet specific industry label requirements
Specifications
Specifications
HellermannTyton - 181-22027 - Product Categories
- Hardware
- Cable Management
- Cable Runway
- Routing, Protection and Insulation
- Wiring Duct
- Slotted Wall Duct and Covers
HellermannTyton - 181-22027 - Specifications
| Brand Name | HellermannTyton |
|---|---|
| Components | Slotted Duct Standard |
| Fiber Duct H X W | 2" X 2" |
| Finish | White |
| Material | PVC |
| Type | Cable Routing / Wiring Duct |
| UNSPSC Code | 39131712 |
HellermannTyton - 181-22027 - Base Data
| Article Number | 181-22027 |
|---|---|
| Type | SL2X2 |
| Color | White (WH) |
| Quantity Per | box |
| Short Description | Slotted Wall Wiring Duct, 2" x 2", Non-Adhesive, PVC, White, 30ft/Box |
| Global Part Name | SL2X2-PVC-WH |

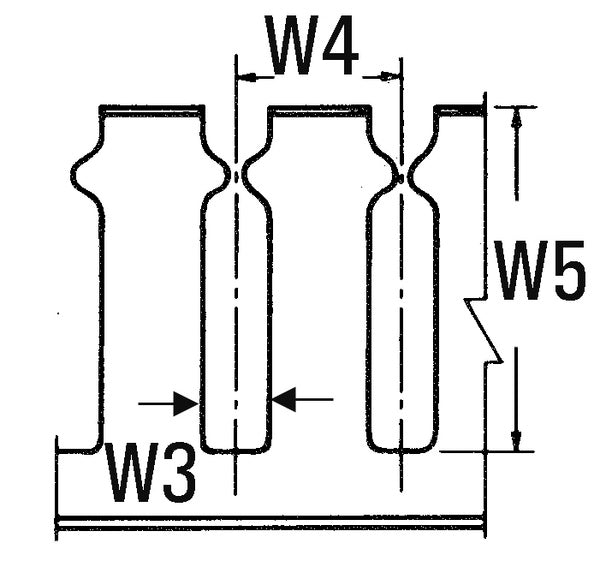

HellermannTyton - 181-22027 - Product Dimensions
| Length L (Imperial) | 6 |
|---|---|
| Length L (Metric) | 1.83 |
| Width W (Imperial) | 2 |
| Width W (Metric) | 50.8 |
| Height H (Imperial) | 2.07 |
| Height H (Metric) | 52.6 |
| Mounting Hole Centers (Imperial) | 4 |
HellermannTyton - 181-22027 - Logistic & Packaging
| Package Quantity (Imperial) | 30 |
|---|---|
| Package Quantity (Metric) | 9.14 |
| Customs Number | 3.93E+09 |
HellermannTyton - 181-22027 - Materials & Specifications
| Material | Polyvinylchloride (PVC) |
|---|---|
| Material Shortcut | PVC |
| Halogen Free | No |
| UV Resistant (Yes/No) | No |
| Operating Temperature | +122°F (+50°C) |
| Reach Compliant (Article 33) | No |
| ROHS Compliant | Yes |
| Certification/Specification | EN 50085-2-3_1AULCSAEN 50085-1:2005 + A1:2013 |
| UL Recognized (US) | Yes |
