HellermannTyton 181-93005 | Wiring Duct Cover For 3" Duct, 6 F...
Description
Description

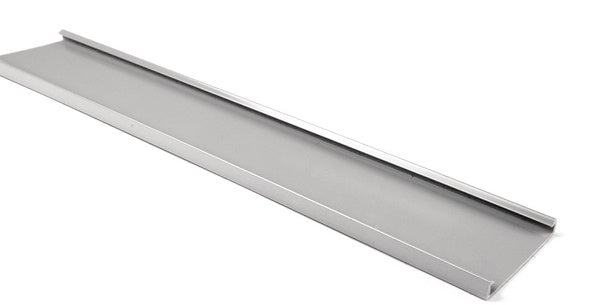

HellermannTyton’s Pro-Duct wiring duct covers are sold separately and interchangeable among the 3 styles of duct (solid, slotted and high density). Manufactured from high impact, rigid PVC, Pro-Duct covers come in standard colors of white, gray and bla ck. Wiring duct covers are available in 6 foot lengths.
HellermannTyton’s Pro-Duct wiring duct covers are sold separately and interchangeable among the 3 styles of duct (solid, slotted and high density). Manufactured from high impact, rigid PVC, Pro-Duct covers come in standard colors of white, gray and black. Wiring duct covers are available in 6 foot lengths.
About HellermannTyton: HellermannTyton is a global manufacturer of cable management and identification solutions for automotive, solar, electrical, construction, industrial automation, broadband and other OEM markets. The company's integrated approach to product design, sustainability, production, quality assurance and delivery is optimized to benefit local and global customers. HellermannTyton operates in 39 countries, with North American headquarters in Milwaukee, Wisconsin.
HellermannTyton - 181-93005 - Features
- A temporary film is applied to the covers to protect against scratches and is writable for identification during installation.
- Cover is flush with the side of the duct for increased wire capacity and allows for tight, side by side duct placement.
- Covers are provided with a non-slip lining, which insures the covers remain in place during vibration, yet they easily snap on and off. (Covers to be purchased separately)
- Narrow fingers reduce fanning of wires to terminal blocks, providing a neater appearance.
- Each finger features a double restriction to hold wires in the bottom portion of the duct, simplifying installation.
- Mounting holes are uniform in size to those in slotted and solid wall duct but are provided every two inches to accommodate compact designs and provide ease of installation.
- Nonpermanent adhesive allows repositioning prior to final installation.
Specifications
Specifications
HellermannTyton - 181-93005 - Product Categories
- Hardware
- Cable Management
- Cable Runway
- Routing, Protection and Insulation
- Wiring Duct
- Slotted Wall Duct and Covers
HellermannTyton - 181-93005 - Specifications
| Brand Name | HellermannTyton |
|---|---|
| Components | Solid Duct |
| Material | Pvc |
| Type | Cable Routing / Wiring Duct |
| UNSPSC Code | 39131712 |
HellermannTyton - 181-93005 - Base Data
| Article Number | 181-93005 |
|---|---|
| Type | TC3 |
| Color | Blue (BU) |
| Quantity Per | carton |
| Short Description | Wiring Duct Cover for 3" Duct, 6 ft Long, PVC, Intrinsic Blue, 120 ft/carton |
| Global Part Name | TC3-PVC-BU |
HellermannTyton - 181-93005 - Product Dimensions
| Length L (Imperial) | 6 |
|---|---|
| Length L (Metric) | 1.83 |
| Width W (Imperial) | 3 |
| Width W (Metric) | 76.2 |
| Height H (Imperial) | 0.308 |
| Height H (Metric) | 7.82 |
HellermannTyton - 181-93005 - Logistic & Packaging
| Package Quantity (Imperial) | 120 |
|---|---|
| Package Quantity (Metric) | 36.58 |
| Customs Number | 3.93E+09 |
HellermannTyton - 181-93005 - Materials & Specifications
| Material | Polyvinylchloride (PVC) |
|---|---|
| Material Shortcut | PVC |
| Flammability | UL 94 V-0 |
| Halogen Free | No |
| UV Resistant (Yes/No) | No |
| Operating Temperature | +122°F (+50°C) |
| Reach Compliant (Article 33) | No |
| ROHS Compliant | Yes |
| Certification/Specification | EN 50085-1:2005 + A1:2013EN 50085-2-3_1AULCSA |
| UL Recognized (US) | Yes |
