HellermannTyton 300-30957 | Heat Shrink Tubing, Non-Adh, 2:1 Shrink...
Description
Description

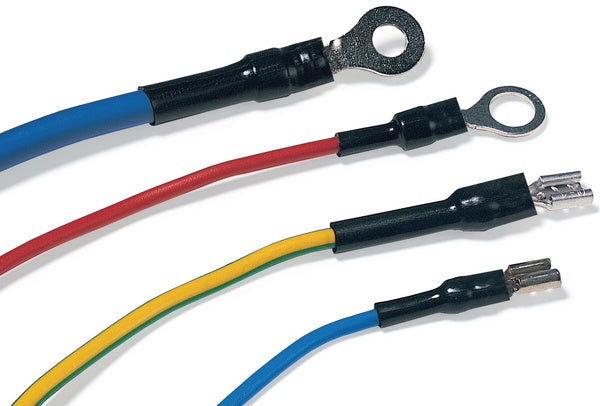

HIS-PACK Heat Shrink is a general-purpose, thin-wall Polyolefin tubing that provides electrical insulation and protection against corrosion and mechanical abrasion. HIS-PACKs are available in multiple colors and ten sizes ranging from 1/16" (1.2mm) to 1" (25.4mm). Tubing is conveniently stored in a handy dispenser box with hang tag and is RoHS approved.
HIS-PACK Heat Shrink is a general-purpose, thin-wall Polyolefin tubing that provides electrical insulation and protection against corrosion and mechanical abrasion. HIS-PACKs are available in multiple colors and ten sizes ranging from 1/16" (1.2mm) to 1" (25.4mm). Tubing is conveniently stored in a handy dispenser box with hang tag and is RoHS approved.
About HellermannTyton: HellermannTyton is a global manufacturer of cable management and identification solutions for automotive, solar, electrical, construction, industrial automation, broadband and other OEM markets. The company's integrated approach to product design, sustainability, production, quality assurance and delivery is optimized to benefit local and global customers. HellermannTyton operates in 39 countries, with North American headquarters in Milwaukee, Wisconsin.
HellermannTyton - 300-30957 - Features
- Tubing is 2:1, thin wall that provides protection against corrosion and mechanical abrasion.
- Available in multiple colors and sizes for easy marking and handling.
- Conveniently stored in a handy dispenser box for quick and easy use.
- Narrow fingers reduce fanning of the wires to the terminal blocks, presenting a neater appearance.
- Each finger is provided with a double restriction to hold wires in the bottom portion of the duct, allowing for easier installation.
- Mounting holes are uniform in size and are offered every 2 inches to accommodate compact designs and ease installation.
- Optional covers snap on and off easily, and are provided with a non-slip lining that insures the covers remain in place during vibration.
Specifications
Specifications
HellermannTyton - 300-30957 - Product Categories
- Hardware
- Cable Management
- Tubing
- Routing, Protection and Insulation
- Heat Shrink Tubing
- Non-adhesive 2 to 1 Shrink Ratio
HellermannTyton - 300-30957 - Specifications
| Brand Name | HellermannTyton |
|---|---|
| Dual | No |
| Heat Shrink | No Is Not Shrink Tubing |
| Mil Spec | No |
| Sleeving | No |
| Spiral Wrap | No |
| Ul | No |
| Zipper | No |
| UNSPSC Code | 39121723 |
HellermannTyton - 300-30957 - Base Data
| Article Number | 300-30957 |
|---|---|
| Type | HIS-PACK-9.5/4.7 |
| Color | Green-Yellow (GNYE) |
| Quantity Per | box |
| Short Description | Heat Shrink Tubing, Non-Adh, 2:1 Shrink Ratio, 0.37 Supp/.17" Recov Dia, PO-X, Grn/Yel, 16.4ft/pkg |
| Global Part Name | HIS-PACK-9.5/4.7-PO-X-GNYE |
HellermannTyton - 300-30957 - Product Dimensions
| Length L (Imperial) | 16.4 |
|---|---|
| Length L (Metric) | 5 |
| Variant | Thin-Wall |
| Nominal Diameter (Imperial) | 0.38 |
| Nominal Diameter (Metric) | 6.4 |
| Wall Thickness WT (Imperial) | 0.023 |
| Wall Thickness WT (Metric) | 0.6 |
HellermannTyton - 300-30957 - Logistic & Packaging
| Package Quantity (Imperial) | 16.4 |
|---|---|
| Package Quantity (Metric) | 5 |
| Customs Number | 3.93E+09 |
| Weight (Metric) | 0.181 |
| Weight (Imperial) | 0.4 |
HellermannTyton - 300-30957 - Materials & Specifications
| Material | Polyolefin, cross-linked (PO-X) |
|---|---|
| Material Shortcut | PO-X |
| Flammability | UL 224 VW-1 (except clear) |
| Halogen Free | No |
| UV Resistant (Yes/No) | No |
| Operating Temperature | -67°F to +257°F (-55°C to +125°C) |
| Reach Compliant (Article 33) | Yes |
| ROHS Compliant | Yes |
| Certification/Specification | UL | ANSI/UL 224UL | CSA-C22.1UL | CSA-C22.2 No.198.1 |
| UL Recognized (US) | Yes |
| UL Recognized (US and Canada) | Yes |
