HellermannTyton 300-73604 | Heat Shrink Tubing, Non-Adh, 2:1 Shrink Ratio, .19" Supp/.09" Recov Dia, PO-X, Black, 1000ft/reel
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
HellermannTyton 300-73604 | Heat Shrink Tubing, Non-Adh, 2:1 Shrink...
Description
Description
TCN20 Heat Shrink is a general purpose, thin wall tubing used to protect electrical and mechanical wiring. Polyolefin material is self extinguishing and resistant against common fluids and solvents. The low shrink temperature and mechanical strength ma ke this tubing widely used in the electric and electronics industry. Available in a wide range of diameters up to 2.0" (50.8mm) and multiple lengths. TCN20 Heat Shrink is UL224 125 C 600V VW-1 and RoHS.
TCN20 Heat Shrink is a general purpose, thin wall tubing used to protect electrical and mechanical wiring. Polyolefin material is self extinguishing and resistant against common fluids and solvents. The low shrink temperature and mechanical strength make this tubing widely used in the electric and electronics industry. Available in a wide range of diameters up to 2.0" (50.8mm) and multiple lengths. TCN20 Heat Shrink is UL224 125 °C 600V VW-1 and RoHS.
About HellermannTyton: HellermannTyton is a global manufacturer of cable management and identification solutions for automotive, solar, electrical, construction, industrial automation, broadband and other OEM markets. The company's integrated approach to product design, sustainability, production, quality assurance and delivery is optimized to benefit local and global customers. HellermannTyton operates in 39 countries, with North American headquarters in Milwaukee, Wisconsin.
HellermannTyton - 300-73604 - Features
- Tubing is 2:1, thin wall and self extinguishing providing good resistance to common fluids and solvents.
- Low shrink temperature gives excellent physical and electrical performance.
- Available in multiple diameters and lengths offering several options to fit specific needs.
- One-piece ratchet closure allows for easy installation during pre- or final assembly.
- Easy release feature simplifies quick adjustments and maintenance.
- Impact modified, heat and UV stabilized PA66 provides long-term durability, indoors and out.
- Zinc-plated steel mounting plate tolerates high torque and is treated to resist chemicals and salt spray.
- Angled mounting plates are ideal for stacking RPCs or for avoiding obstructions or heat sources.
Specifications
Specifications
HellermannTyton - 300-73604 - Product Categories
- Hardware
- Cable Management
- Tubing
- Routing, Protection and Insulation
- Heat Shrink Tubing
- Non-adhesive 2 to 1 Shrink Ratio
HellermannTyton - 300-73604 - Specifications
| Brand Name | HellermannTyton |
|---|---|
| Dual | No |
| Heat Shrink | Yes Is Shrink Tubing |
| Mil Spec | No |
| Material/Type | Po-Polyolefin |
| Sleeving | No |
| Spiral Wrap | No |
| Ul | Yes |
| Zipper | No |
| UNSPSC Code | 39121723 |
| Color | Black |
| Material | Polyolefin, cross-linked (PO-X) |
| Operating Temperature | -67F to +257F (-55C to +125C) |
| Diameter | 0.189" |
HellermannTyton - 300-73604 - Base Data
| Article Number | 300-73604 |
|---|---|
| Type | TCN20-4.8/2.4 |
| Color | Black (BK) |
| Quantity Per | box |
| Short Description | Heat Shrink Tubing, Non-Adh, 2:1 Shrink Ratio, 0.19" Supp/.09" Recov Dia, PO-X, Black, 1000ft/reel |
| Global Part Name | TCN20-4.8/2.4-PO-X-BK |

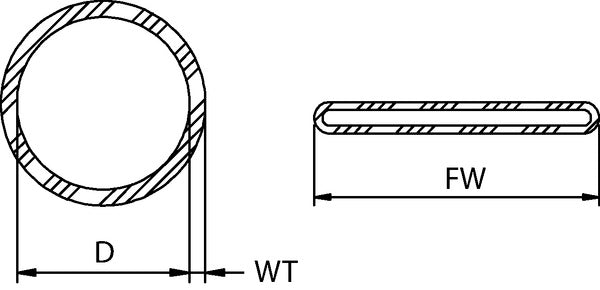

HellermannTyton - 300-73604 - Product Dimensions
| Length L (Imperial) | 1000 |
|---|---|
| Length L (Metric) | 304.8 |
| Variant | Thin-Wall |
| Nominal Diameter (Imperial) | 0.19 |
| Nominal Diameter (Metric) | 4.8 |
| Wall Thickness WT (Imperial) | 0.019 |
| Wall Thickness WT (Metric) | 0.5 |
HellermannTyton - 300-73604 - Logistic & Packaging
| Package Quantity (Imperial) | 1000 |
|---|---|
| Package Quantity (Metric) | 304.8 |
| Customs Number | 3.93E+09 |
HellermannTyton - 300-73604 - Materials & Specifications
| Material | Polyolefin, cross-linked (PO-X) |
|---|---|
| Material Shortcut | PO-X |
| Flammability | UL 224 VW-1 |
| Halogen Free | No |
| UV Resistant (Yes/No) | No |
| Operating Temperature | -67°F to +257°F (-55°C to +125°C) |
| Reach Compliant (Article 33) | Yes |
| ROHS Compliant | Yes |
| Certification/Specification | CSA | C22.2 no. 198.1-06UL 224 125 °C 600V VW-1DIN 75200 (09/1980) |
| UL Recognized (US) | Yes |
| UL Recognized (US and Canada) | Yes |
