HellermannTyton 309-65220 | Heat Shrink Tubing, 4' Long Stick, ...
Description
Description

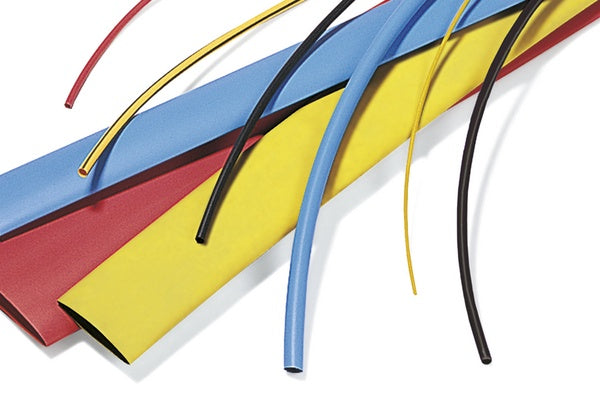

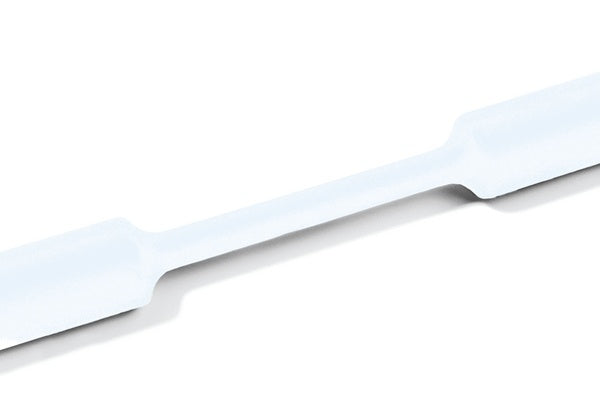

TFN21 is a highly flexible thin wall heat shrink tubing with a 2 to 1 shrink ratio and excellent flame retardant properties. In addition to providing insulation and abrasion protection for wires and cables, the polyolefin material also offers resistanc e to oils, solvents and chemicals. Available in mini reels, bulk reels and sticks, for small to large volume applications.
TFN21 is a highly flexible thin wall heat shrink tubing with a 2 to 1 shrink ratio and excellent flame retardant properties. In addition to providing insulation and abrasion protection for wires and cables, the polyolefin material also offers resistance to oils, solvents and chemicals. Available in mini reels, bulk reels and sticks, for small to large volume applications.
About HellermannTyton: HellermannTyton is a global manufacturer of cable management and identification solutions for automotive, solar, electrical, construction, industrial automation, broadband and other OEM markets. The company's integrated approach to product design, sustainability, production, quality assurance and delivery is optimized to benefit local and global customers. HellermannTyton operates in 39 countries, with North American headquarters in Milwaukee, Wisconsin.
HellermannTyton - 309-65220 - Features
- Thin, 2 to 1 shrink ratio tubing provides insulation and abrasion protection for wires and cables.
- Flammability rating of UL224 VW-1 for use in applications requiring the highest degree of flame protection (excludes clear tubing).
- Flexible-yet-durable material resists most common oils, chemicals and fluids.
- Available in a variety of diameters and colors for identifying and marking wires and cables.
- Available in mini reels, bulk reels, and sticks for small to large volume applications.
Specifications
Specifications
HellermannTyton - 309-65220 - Product Categories
- Hardware
- Cable Management
- Tubing
- Routing, Protection and Insulation
- Heat Shrink Tubing
- Non-adhesive 2 to 1 Shrink Ratio
HellermannTyton - 309-65220 - Specifications
| Brand Name | HellermannTyton |
|---|---|
| Decimal | 3.00 Inch |
| Dual | No |
| Heat Shrink | Yes Is Shrink Tubing |
| Mil Spec | No |
| Material/Type | Po-Polyolefin |
| Sleeving | No |
| Spiral Wrap | No |
| Ul | No |
| Zipper | No |
| UNSPSC Code | 39121723 |
HellermannTyton - 309-65220 - Base Data
| Article Number | 309-65220 |
|---|---|
| Type | TFN21-ST 76.2/38.1 |
| Color | Clear (CL) |
| Quantity Per | pcs. |
| Short Description | Heat Shrink Tubing, 4' Long Stick, 2:1 Shrink Ratio, 3.0", 76.2/38.1 Dia, PO, Clear, 3/pkg |
| Global Part Name | TFN21-ST 76.2/38.1-PO-X-CL |

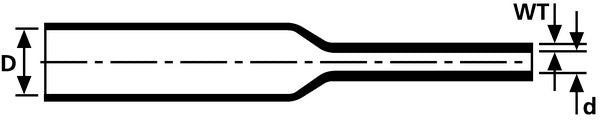

HellermannTyton - 309-65220 - Product Dimensions
| Variant | Thin-Wall |
|---|---|
| Nominal Diameter (Imperial) | 3 |
| Nominal Diameter (Metric) | 76.2 |
| Wall Thickness WT (Imperial) | 0.047 |
| Wall Thickness WT (Metric) | 1.2 |
HellermannTyton - 309-65220 - Logistic & Packaging
| Package Quantity (Imperial) | 3 |
|---|---|
| Package Quantity (Metric) | 3 |
| Customs Number | 3.93E+09 |
HellermannTyton - 309-65220 - Materials & Specifications
| Material | Polyolefin, cross-linked (PO-X) |
|---|---|
| Material Shortcut | PO-X |
| Flammability | UL 224 VW-1 (except clear) |
| Halogen Free | No |
| UV Resistant (Yes/No) | No |
| Operating Temperature | -67°F to +275°F (-55°C to +135°C) |
| Reach Compliant (Article 33) | Yes |
| ROHS Compliant | Yes |
| Certification/Specification | UL | ANSI/UL 224CSA |
| UL Recognized (US) | Yes |
| UL Recognized (US and Canada) | Yes |
