HellermannTyton 318-60154 | Heat Shrink Tubing, 4’ Long Stick, Adhe...
Description
Description

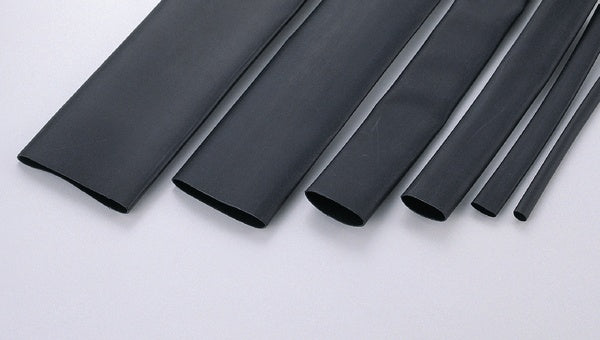

TAN33 is a flexible, thin wall adhesive-lined heat shrink tubing with highly flame retardant properties. The 3 to 1 shrink ratio accommodates a wide range of component shapes and diameters. The adhesive lining begins to activate as the temperature reac hes 176 F (80 C), to create a strong seal against moisture and humidity.
TAN33 is a flexible, thin wall adhesive-lined heat shrink tubing with highly flame retardant properties. The 3 to 1 shrink ratio accommodates a wide range of component shapes and diameters. The adhesive lining begins to activate as the temperature reaches 176° F (80° C), to create a strong seal against moisture and humidity.
About HellermannTyton: HellermannTyton is a global manufacturer of cable management and identification solutions for automotive, solar, electrical, construction, industrial automation, broadband and other OEM markets. The company's integrated approach to product design, sustainability, production, quality assurance and delivery is optimized to benefit local and global customers. HellermannTyton operates in 39 countries, with North American headquarters in Milwaukee, Wisconsin.
HellermannTyton - 318-60154 - Features
- Adhesive lining provides an excellent seal against moisture and humidity.
- Thin exterior wall is very flexible, while providing superior insulation of cables and components.
- 3 to 1 shrink ratio accommodates a wide range of component shapes and diameters.
- Meets UL224 VW-1 specifications, making it ideal for high heat applications (excludes clear tubing).
- Polyolefin material provides mechanical strength with good resistance to solvents, oils and fuels.
- 4-foot sticks are individually tagged and come ina retail box.
Specifications
Specifications
HellermannTyton - 318-60154 - Product Categories
- Hardware
- Cable Management
- Tubing
- Routing, Protection and Insulation
- Heat Shrink Tubing
- Adhesive-Lined Thin Wall
HellermannTyton - 318-60154 - Specifications
| Brand Name | HellermannTyton |
|---|---|
| Dual | No |
| Heat Shrink | Yes Is Shrink Tubing |
| Mil Spec | No |
| Material/Type | Po-Polyolefin |
| Sleeving | No |
| Spiral Wrap | No |
| Ul | No |
| Zipper | No |
| UNSPSC Code | 39121723 |
| Color | Black |
| Material | Polyolefin, cross-linked (PO-X) |
| Operating Temperature | -67F to +257F (-55C to +125C) |
| Diameter | 0.472" |
HellermannTyton - 318-60154 - Base Data
| Article Number | 318-60154 |
|---|---|
| Type | TAN33-ST-12/4 BK |
| Color | Black (BK) |
| Quantity Per | pack |
| Short Description | Heat Shrink Tubing, 4' Long Stick, Adhesive Lined, 3:1 Shrink Ratio, 1/2", 12.0/4.0 Dia, PO, Black, 10/pkg |
| Global Part Name | TAN33-ST-12/4 BK-PO-X-BK |
HellermannTyton - 318-60154 - Product Dimensions
| Length L (Imperial) | 4 |
|---|---|
| Length L (Metric) | 1.22 |
| Variant | Thin-Wall |
| Nominal Diameter (Imperial) | 0.5 |
| Nominal Diameter (Metric) | 12 |
| Wall Thickness WT (Imperial) | 0.063 |
| Wall Thickness WT (Metric) | 1.6 |
HellermannTyton - 318-60154 - Logistic & Packaging
| Package Quantity (Imperial) | 10 |
|---|---|
| Package Quantity (Metric) | 10 |
| Customs Number | 3.93E+09 |
HellermannTyton - 318-60154 - Materials & Specifications
| Material | Polyolefin, cross-linked (PO-X) |
|---|---|
| Material Shortcut | PO-X |
| Adhesive | Hot melt adhesive |
| Flammability | UL 224 VW-1 |
| Halogen Free | No |
| UV Resistant (Yes/No) | No |
| Operating Temperature | -67°F to +257°F (-55°C to +125°C) |
| Reach Compliant (Article 33) | Yes |
| ROHS Compliant | Yes |
| Certification/Specification | CSA |
| UL Recognized (US) | Yes |
| UL Recognized (US and Canada) | Yes |
