HellermannTyton 323-50015 | Heat Shrink Tubing, 4' Long Stick, Medium Wall Adhesive Lined, Up To 4:1, 2.5", 63/19 Dia, Po, Black, 2/Pkg
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
HellermannTyton 323-50015 | Heat Shrink Tubing, 4' Long Stick, ...
Description
Description

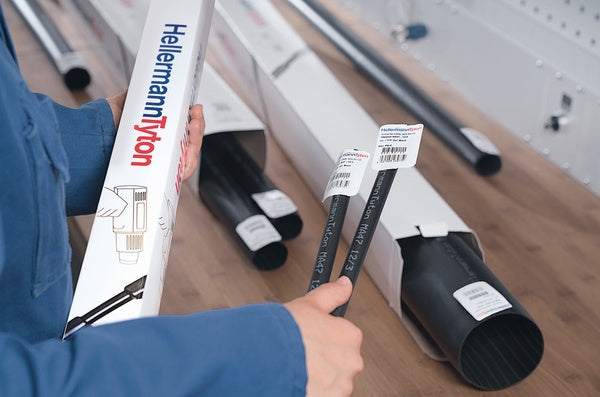

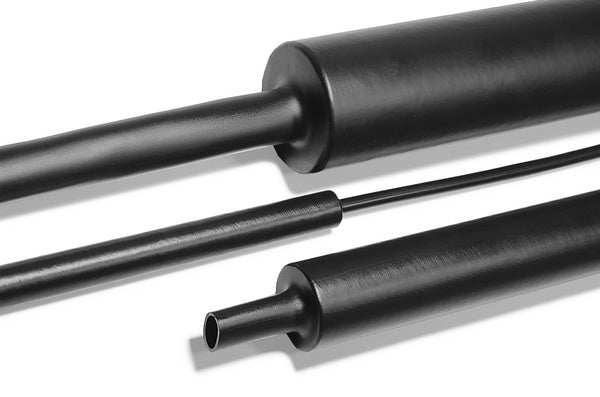

MA47 is a medium wall heat shrink tubing with an adhesive lining for use in low voltage applications. The thermoplastic adhesive liner provides excellent moisture sealing and insulation protection of cable joints and terminations. Made of a polyolefin outer material, this tubing has a shrink ratio up to 4 to 1. The adhesive lining begins to activate as the temperature approaches 185 F (85 C). Individually labeled 4-foot sticks come packaged in a retail display box.
MA47 is a medium wall heat shrink tubing with an adhesive lining for use in low voltage applications. The thermoplastic adhesive liner provides excellent moisture sealing and insulation protection of cable joints and terminations. Made of a polyolefin outer material, this tubing has a shrink ratio up to 4 to 1. The adhesive lining begins to activate as the temperature approaches 185° F (85° C). Individually labeled 4-foot sticks come packaged in a retail display box.
About HellermannTyton: HellermannTyton is a global manufacturer of cable management and identification solutions for automotive, solar, electrical, construction, industrial automation, broadband and other OEM markets. The company's integrated approach to product design, sustainability, production, quality assurance and delivery is optimized to benefit local and global customers. HellermannTyton operates in 39 countries, with North American headquarters in Milwaukee, Wisconsin.
HellermannTyton - 323-50015 - Features
- Medium wall tubing resists solvents, acids and alkaline solutions while providing good mechanical strength.
- Features robust insulation characteristics designed for low voltage power applications.
- Adhesive lining provides excellent insulation against moisture and humidity.
- RoHS compliant and Halogen-free.
- Thin wall, flexible 3 to 1 shrink ratio material accommodates a wide range of component shapes and diameters.
- Meets UL224 VW-1 specifications, making it ideal for high heat applications (excludes clear tubing).
- Polyolefin material provides excellent insulation and mechanical strength with good resistance to solvents, oils and fuels.
- Available in bulk reels, sticks and convenience bags (HIS-3 bags), for small to large volume applications.
Specifications
Specifications
HellermannTyton - 323-50015 - Product Categories
- Hardware
- Cable Management
- Tubing
- Routing, Protection and Insulation
- Heat Shrink Tubing
- Adhesive-Lined Medium Wall
HellermannTyton - 323-50015 - Specifications
| Brand Name | HellermannTyton |
|---|---|
| Dual | No |
| Heat Shrink | Yes Is Shrink Tubing |
| Mil Spec | No |
| Material/Type | Po-Polyolefin |
| Sleeving | No |
| Spiral Wrap | No |
| Ul | No |
| Zipper | No |
| UNSPSC Code | 39121723 |
| Color | Black |
| Material | Polyolefin, cross-linked (PO-X) |
| Operating Temperature | -67F to +230F (-55C to +110C) |
| Diameter | 2.48" |
HellermannTyton - 323-50015 - Base Data
| Article Number | 323-50015 |
|---|---|
| Type | TREDUX MA47-48ST-63/19 |
| Color | Black (BK) |
| Quantity Per | pcs. |
| Short Description | Heat Shrink Tubing, 4' Long Stick, Medium Wall Adhesive Lined, Up to 4:1, 2.5", 63/19 dia, PO, Black, 2/pkg |
| Global Part Name | TREDUX MA47-48ST-63/19-PO-X-BK |

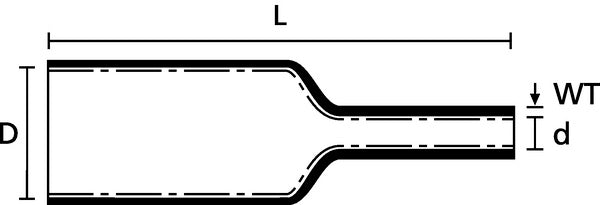

HellermannTyton - 323-50015 - Product Dimensions
| Length L (Imperial) | 4 |
|---|---|
| Length L (Metric) | 1 |
| Voltage Range | Low voltage |
| Variant | Medium-Wall |
| Nominal Diameter (Imperial) | 2.5 |
| Nominal Diameter (Metric) | 63 |
| Wall Thickness WT (Imperial) | 0.11 |
| Wall Thickness WT (Metric) | 2.8 |
HellermannTyton - 323-50015 - Logistic & Packaging
| Package Quantity (Imperial) | 2 |
|---|---|
| Package Quantity (Metric) | 2 |
| Customs Number | 3.93E+09 |
| Weight (Imperial) | 2.35 |
HellermannTyton - 323-50015 - Materials & Specifications
| Material | Polyolefin, cross-linked (PO-X) |
|---|---|
| Material Shortcut | PO-X |
| Adhesive | Hot melt adhesive |
| Halogen Free | Yes |
| UV Resistant (Yes/No) | No |
| Operating Temperature | -67°F to +230°F (-55°C to +110°C) |
| Reach Compliant (Article 33) | Yes |
| ROHS Compliant | Yes |
