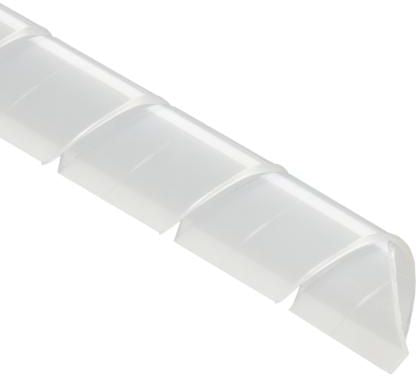

HellermannTyton 3N9C | Spiral Wrap Protective Sheathing, 0.5" Dia., PA6, Natural, 100 ft/Roll
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
HellermannTyton 3N9C | Spiral Wrap Protective Sheathing, 0.5" ...
Description
Description
HellermannTyton Spiralwrap provides an effective means for routing and securing wires around corners and bends, and helps keep wires out of pinch points within moving panel doors. Spiralwrap is installed using a gapped or butted installation which impacts harnesses flexibility, wire coverage and abrasion-resistance. A gapped installation leaves space between the sheathing to accommodate breakouts and adds flexibility to the harness. A butted installation wraps tightly around the bundle to provide greater abrasion-resistance and add rigidity.
Specifications
Specifications
HellermannTyton - 3N9C - Product Categories
- Enclosures and Cable Routing
- Conduit and Cable Support
- Cable and Conduit Fasteners
- Spiral Wrap
HellermannTyton - 3N9C - Specifications
| Manufacturer Part Number | 3N9C |
|---|---|
| Manufacturer | HellermannTyton |
| CLASS | NO CLASS SPECIFIED |
| Color | Natural |
| Diameter | 12.7mm |
| Length | 30.48 m |
| Material | Polyamide |
| Maximum Wire Bundle Size | 102mm |
| Minimum Wire Bundle Size | 9.52mm |
| ROHS COMPLIANT | NO |
| Resists | Chemical |
| Temperature Rating | -40 to +121 C |
| Thickness | 0.89mm |
